Product introduction:

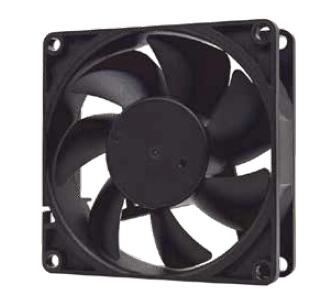

| Size: | 80x80x25mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic Bearing Double Ball Bearing |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

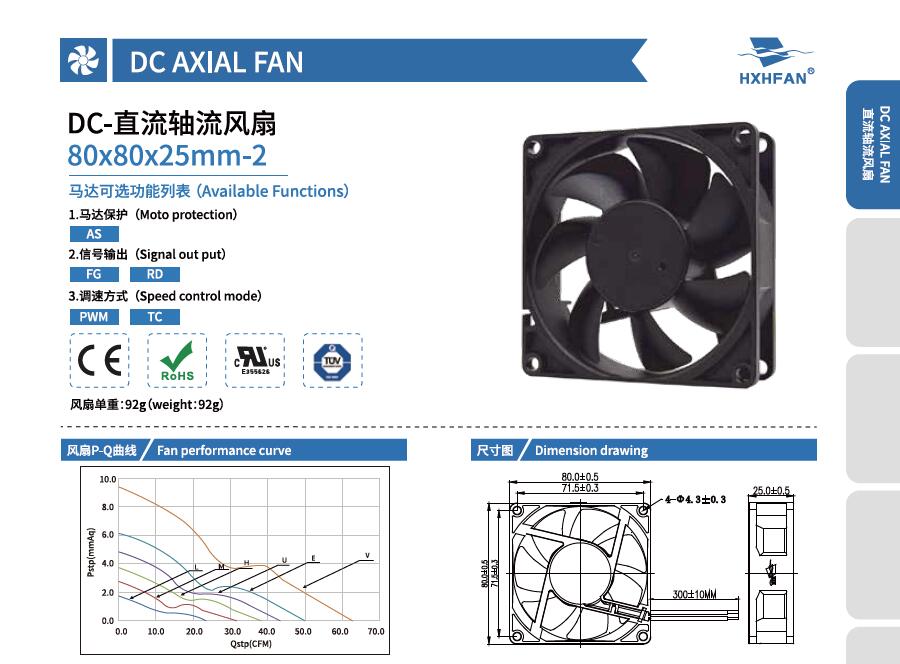

| 80×80×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0805UA-2 | -A | Hydraulic | 5 | 4.0 | 0.60 | 3.00 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 |
| HDH0805HA-2 | -A | 4.0 | 0.45 | 2.25 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | ||
| HDH0805MA-2 | 4.0 | 0.25 | 1.25 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDH0805LA-2 | 4.0 | 0.20 | 1.00 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| HDB0805UA-2 | -A | Ball | 4.0 | 0.60 | 3.00 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 | |
| HDB0805HA-2 | -A | 4.0 | 0.45 | 2.25 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | ||
| HDB0805MA-2 | 4.0 | 0.25 | 1.25 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDB0805LA-2 | 4.0 | 0.20 | 1.00 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| HDH0812UA-2 | -A | Hydraulic | 12 | 5.0 | 0.28 | 3.36 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 |
| HDH0812HA-2 | 5.0 | 0.23 | 2.76 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | |||
| HDH0812MA-2 | 5.0 | 0.16 | 1.92 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDH0812LA-2 | 5.0 | 0.09 | 1.08 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| HDB0812VA-2 | -A | Ball | 5.0 | 0.55 | 6.60 | 5000 | 1.78 | 62.74 | 9.41 | 0.37 | 44.2 | |
| HDB0812EA-2 | -A | 5.0 | 0.38 | 4.56 | 4000 | 1.41 | 49.81 | 6.15 | 0.24 | 38.4 | ||
| HDB0812UA-2 | -A | 5.0 | 0.28 | 3.36 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 | ||
| HDB0812HA-2 | 5.0 | 0.23 | 2.76 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | |||
| HDB0812MA-2 | 5.0 | 0.16 | 1.92 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDB0812LA-2 | 5.0 | 0.09 | 1.08 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| HDH0824UA-2 | Hydraulic | 24 | 12.0 | 0.18 | 4.32 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 | |
| HDH0824HA-2 | 12.0 | 0.14 | 3.36 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | |||
| HDH0824MA-2 | 12.0 | 0.09 | 2.16 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDH0824LA-2 | 12.0 | 0.06 | 1.44 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| HDB0824VA-2 | Ball | 12.0 | 0.38 | 9.12 | 5000 | 1.78 | 62.74 | 9.41 | 0.37 | 44.2 | ||
| HDB0824EA-2 | 12.0 | 0.28 | 6.72 | 4000 | 1.41 | 49.81 | 6.15 | 0.24 | 38.4 | |||
| HDB0824UA-2 | 12.0 | 0.18 | 4.32 | 3500 | 1.23 | 43.49 | 4.84 | 0.19 | 33.6 | |||
| HDB0824HA-2 | 12.0 | 0.14 | 3.36 | 3000 | 1.08 | 38.18 | 3.68 | 0.14 | 28.0 | |||
| HDB0824MA-2 | 12.0 | 0.09 | 2.16 | 2500 | 0.90 | 31.64 | 2.72 | 0.11 | 19.9 | |||
| HDB0824LA-2 | 12.0 | 0.06 | 1.44 | 2000 | 0.67 | 23.65 | 1.73 | 0.07 | 15.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
