Product introduction:

Size: 60x60x15mm-3
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Oil Bearing Hydraulic Bearing  Double Ball Bearing
Product life: 30,000 hours 40,000 hours 70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

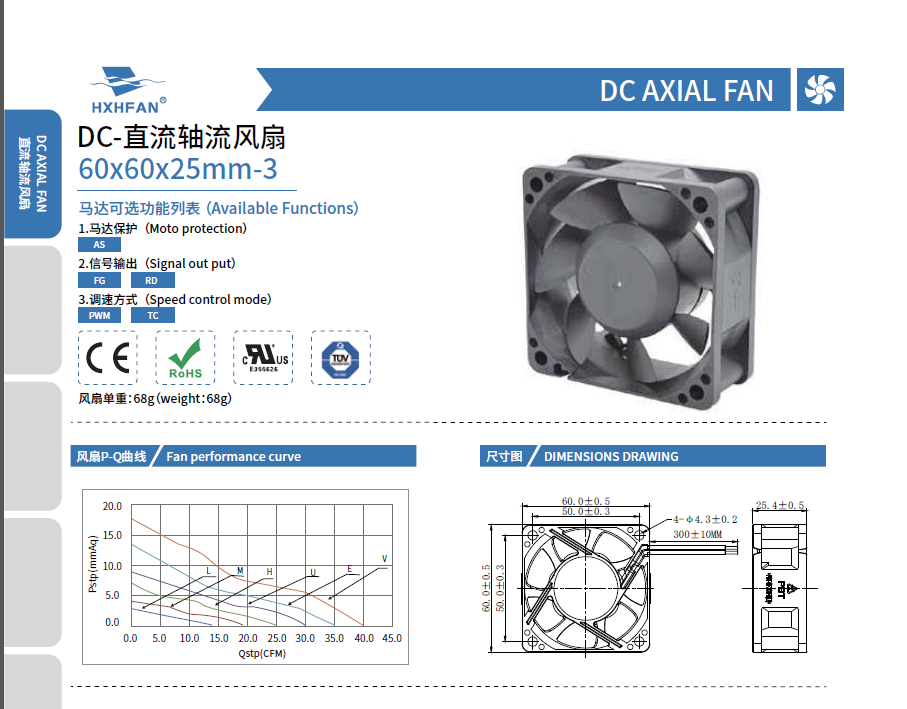

60×60×25mm-3
Model Bearing Rated Voltage Startup Voltage Current Power Speed Air Flow Static Pressure Noise
Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA
HDH0612UA-3 -A Hydraulic 12 6.0 0.27 3.24 6000 0.83 29.40 9.30 0.37 39.3
HDH0612HA-3   6.0 0.18 2.16 5000 0.70 24.79 6.58 0.26 34.3
HDH0612MA-3   9.0 0.14 1.68 4000 0.55 19.57 4.25 0.17 26.2
HDH0612LA-3   9.0 0.10 1.20 3000 0.39 13.76 2.26 0.09 20.1
HDB0612VA-3 -A Ball 6.0 0.50 6.00 8000 1.15 40.57 17.37 0.68 48.9
HDB0612EA-3 -A 6.0 0.38 4.56 7000 0.99 35.15 13.08 0.52 44.7
HDB0612UA-3 -A 6.0 0.27 3.24 6000 0.83 29.40 9.30 0.37 39.3
HDB0612HA-3   6.0 0.18 2.16 5000 0.70 24.79 6.58 0.26 34.3
HDB0612MA-3   6.0 0.14 1.68 4000 0.55 19.57 4.25 0.17 26.2
HDB0612LA-3   9.0 0.10 1.20 3000 0.39 13.76 2.26 0.09 20.1
HDH0624UA-3 -A Hydraulic 24 12.0 0.18 4.32 6000 0.83 29.40 9.30 0.37 39.3
HDH0624HA-3   12.0 0.12 2.88 5000 0.70 24.79 6.58 0.26 34.3
HDH0624MA-3   18.0 0.09 2.16 4000 0.55 19.57 4.25 0.17 26.2
HDH0624LA-3   18.0 0.07 1.68 3000 0.39 13.76 2.26 0.09 20.1
HDB0624VA-3 -A Ball 12.0 0.35 8.40 8000 0.15 40.57 17.37 0.68 48.9
HDB0624EA-3 -A 12.0 0.25 6.00 7000 0.99 35.15 13.08 0.52 44.7
HDB0624UA-3 -A 12.0 0.18 4.32 6000 0.83 29.40 9.30 0.37 39.3
HDB0624HA-3   12.0 0.12 2.88 5000 0.70 24.79 6.58 0.26 34.3
HDB0624MA-3   18.0 0.09 2.16 4000 0.55 19.57 4.25 0.17 26.2
HDB0624LA-3   18.0 0.07 1.68 3000 0.39 13.76 2.26 0.09 20.1
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
