Product introduction:
| Size: | 120x120x32mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Working voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

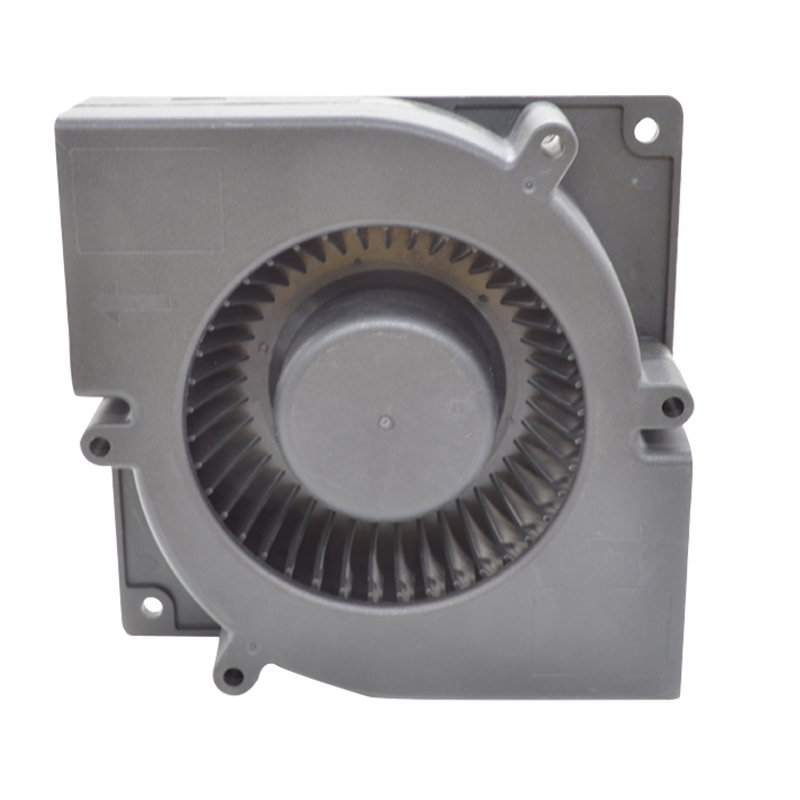

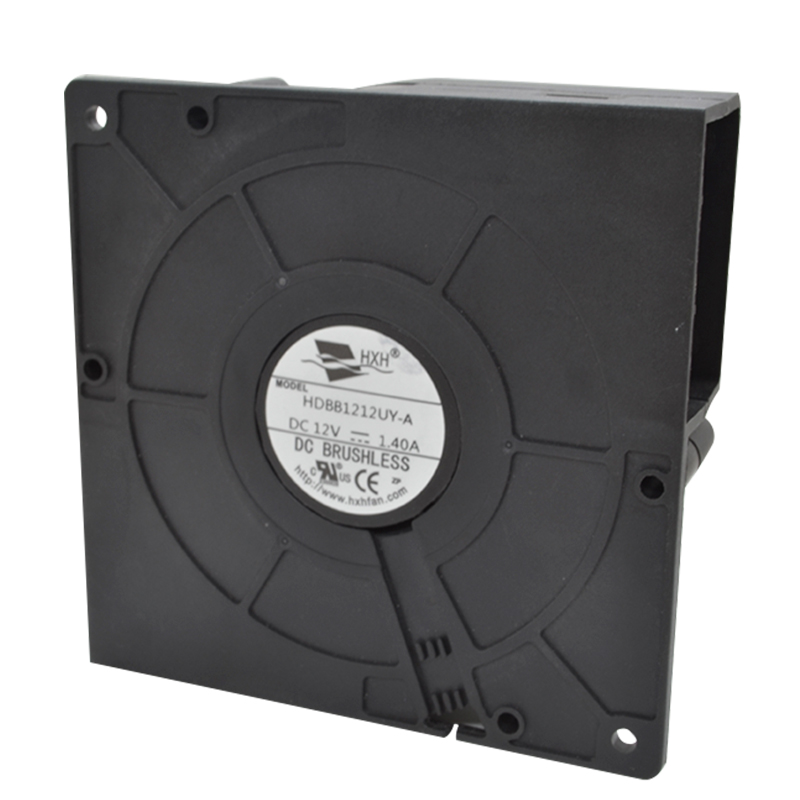

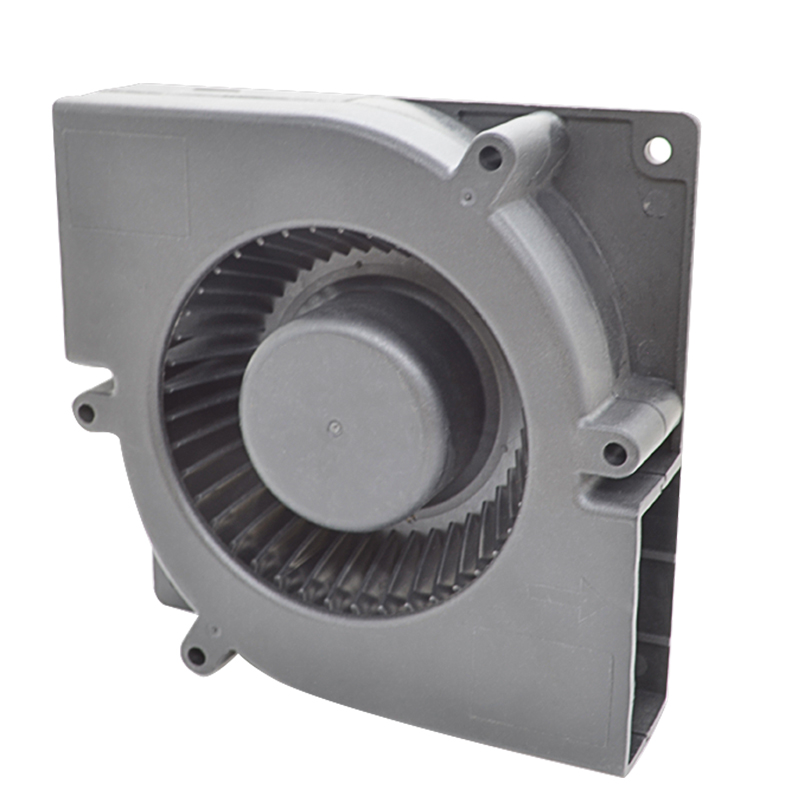

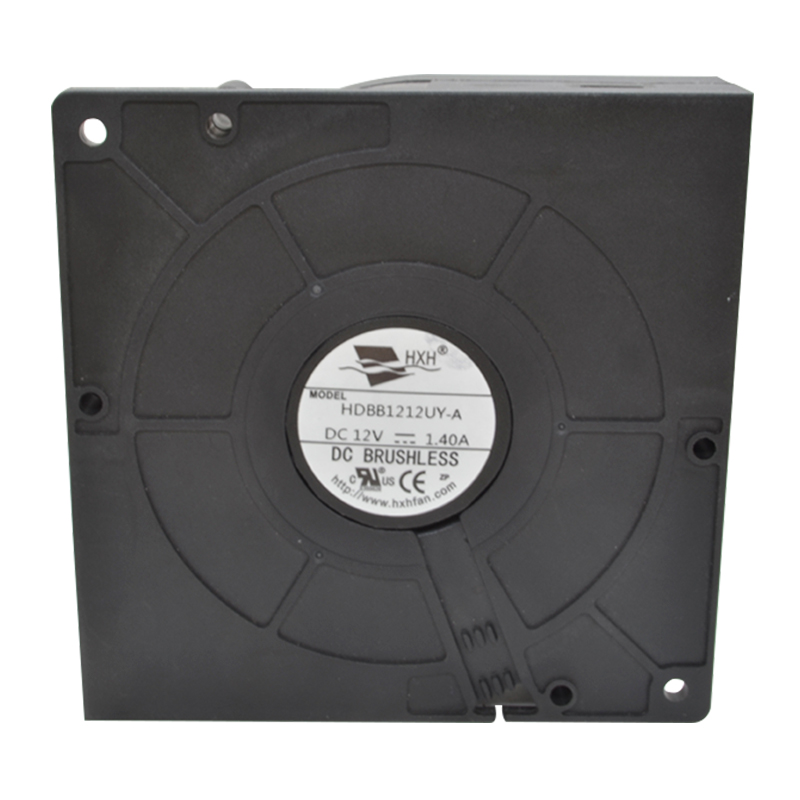

| 120×120×32mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB1212HY | IP68 | Ball | 12 | 5.0 | 1.10 | 13.20 | 2800 | 0.83 | 29.36 | 19.81 | 0.78 | 48.3 |
| HBB1212MY | IP68 | 5.0 | 0.85 | 10.20 | 2500 | 0.72 | 25.43 | 16.86 | 0.66 | 45.9 | ||
| HBB1212LY | IP68 | 5.0 | 0.45 | 10.80 | 2200 | 0.60 | 21.32 | 13.64 | 0.54 | 43.1 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
