Product introduction:
| Size: | 80x80x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

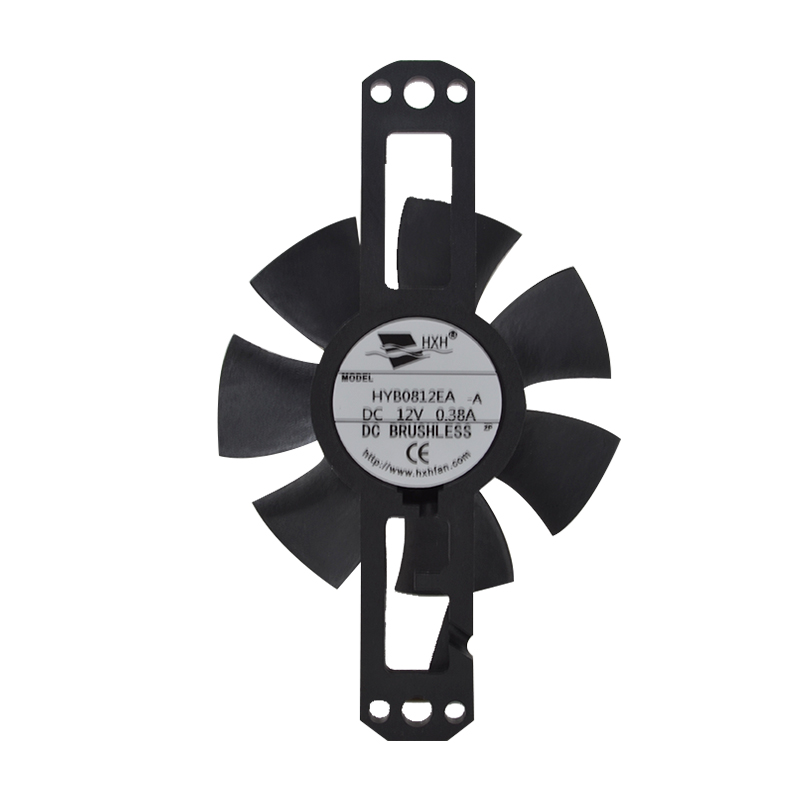

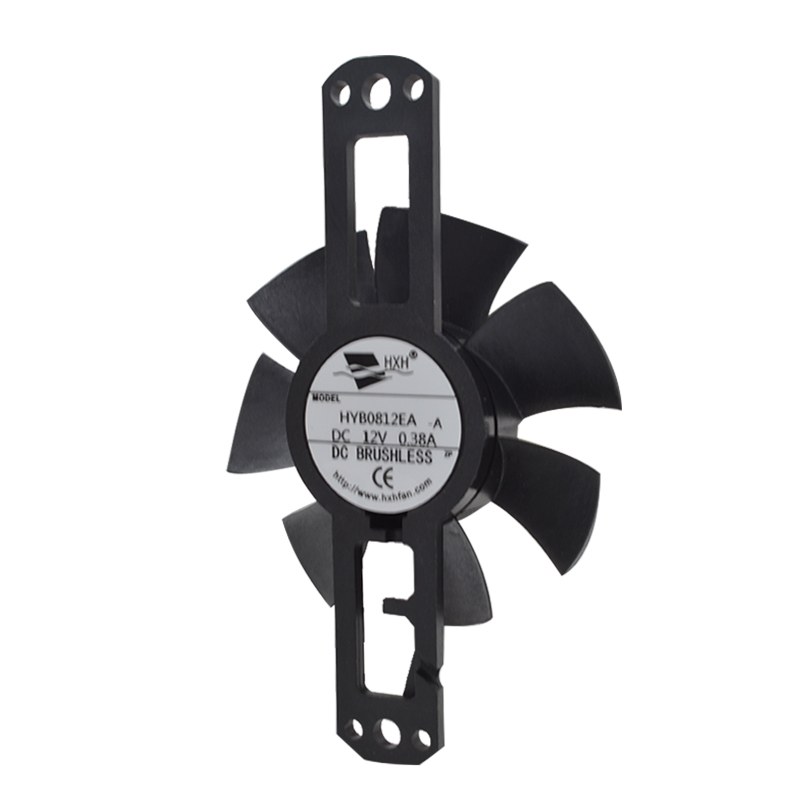

| HYB0812EA-1 | -A | Ball | 12 | 6.0 | 0.38 | 4.56 | 4000 | 1.32 | 46.57 | 6.82 | 0.27 | 40.7 |
| HYB0812UA-1 | -A | 6.0 | 0.28 | 3.36 | 3500 | 1.16 | 41.09 | 5.44 | 0.21 | 39.4 | ||
| HYB0812HA-1 | 6.0 | 0.23 | 2.76 | 3000 | 0.97 | 34.21 | 4.04 | 0.16 | 35.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
