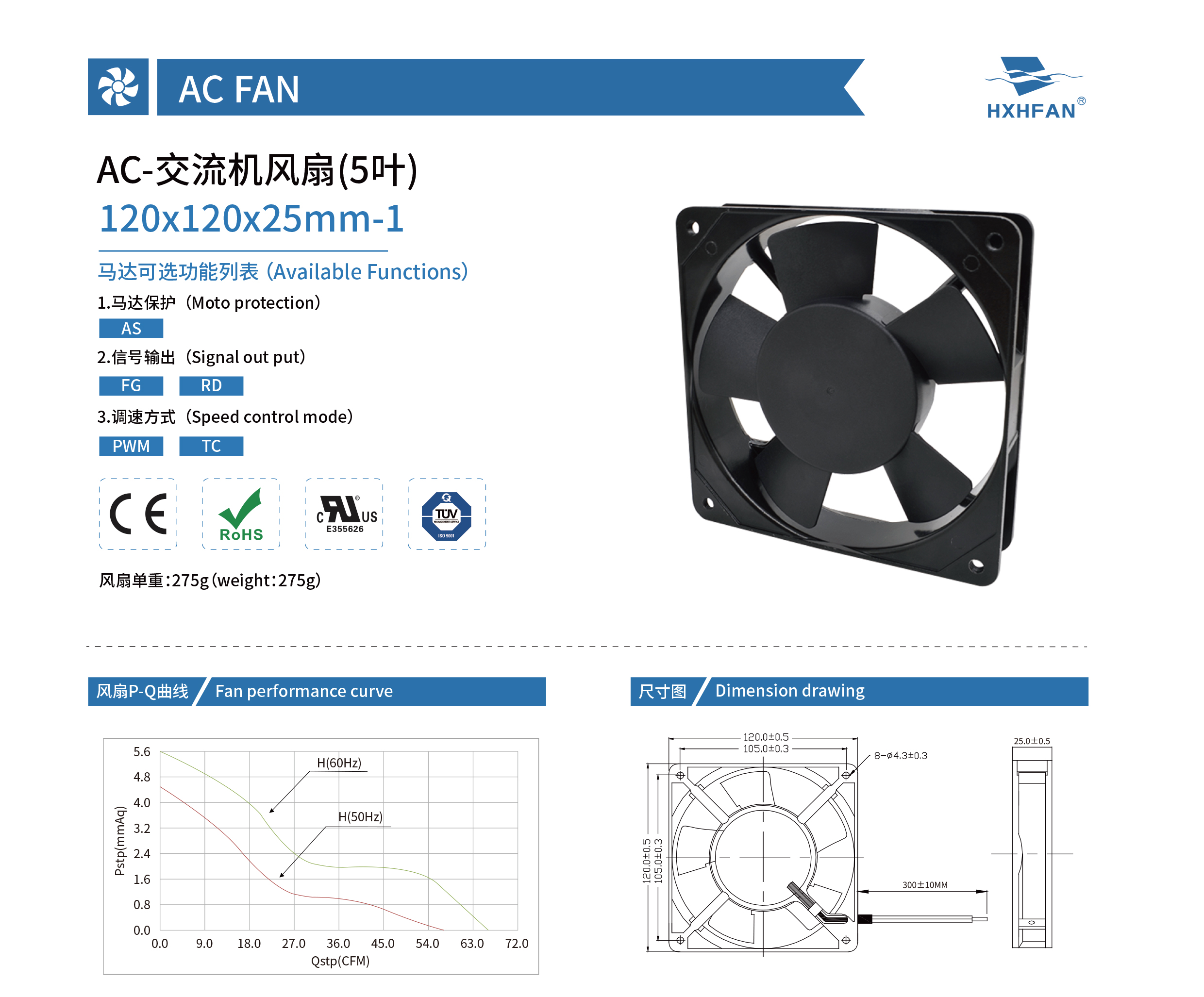

| Size: | 120x120x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×25mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS12110HA-1 | W/T | Ball | 110 | 100-125 | 50/60 | 0.25/0.24 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 |
| HAS12110MA-1 | W/T | 100-125 | 50/60 | 0.16/0.15 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
| HAB12110HA-1 | W/T | Ball | 220 | 100-125 | 50/60 | 0.13/0.12 | 2300/2700 | 1.61/1.87 | 57/66 | 4.5/5.6 | 0.18/0.22 | 39/44 |
| HAB12110MA-1 | W/T | 100-125 | 50/60 | 0.08/0.07 | 1800/2300 | 1.27/1.58 | 45/56 | 3.8/4.9 | 0.15/0.19 | 31/36 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
