Product introduction:

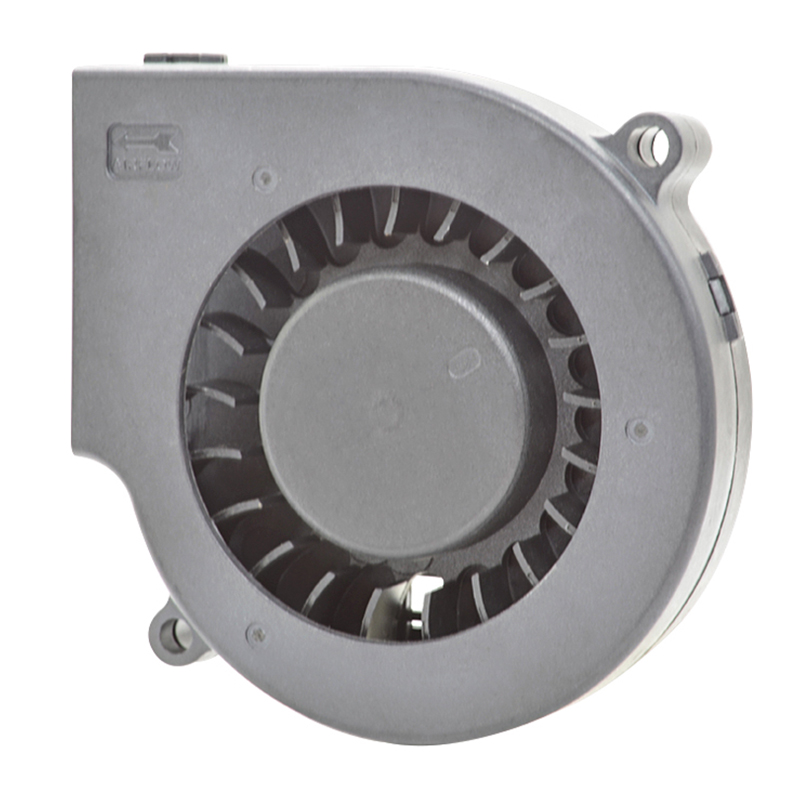

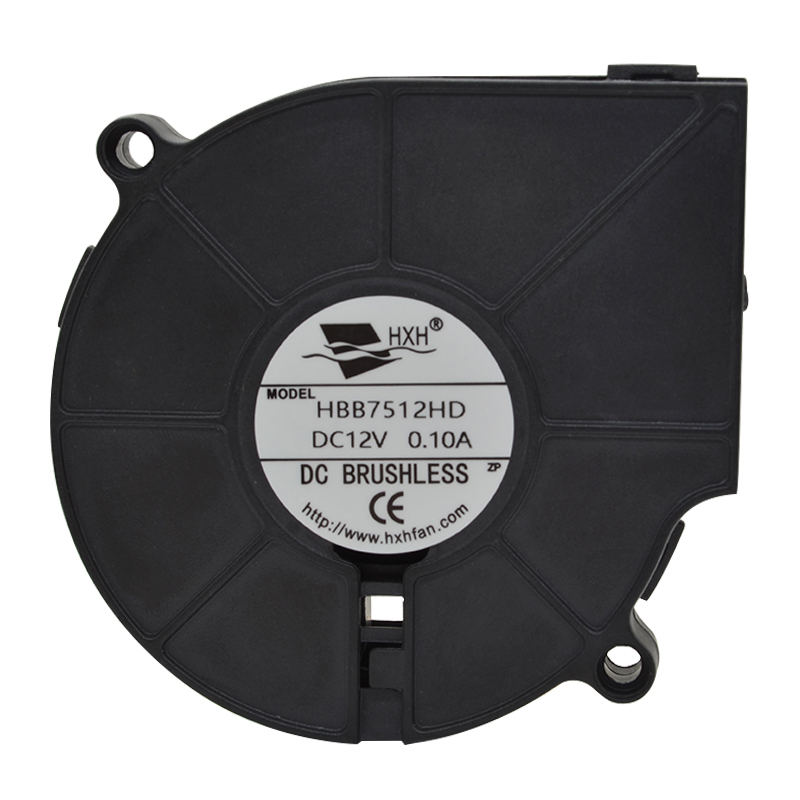

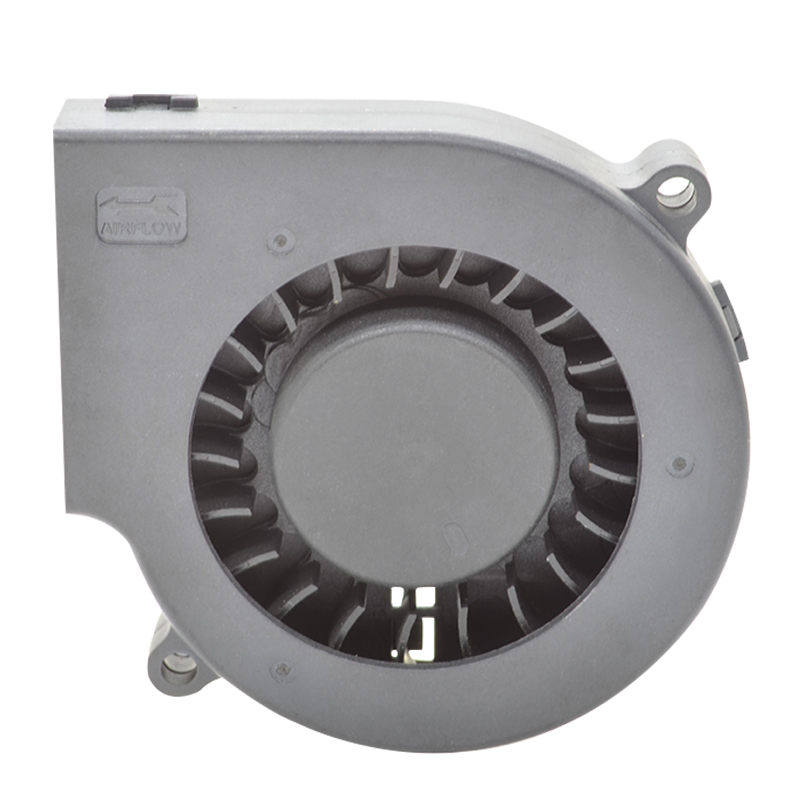

| Size: | 75x75x15mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| Size（mm） | 75X75X15mm |
|---|---|
| Rated voltage: | 12V，24V |
| 75×75×15mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0705HD | SLEEVE | 5 | 4.5 | 0.65 | 3.25 | 3800 | 0.23 | 8.15 | 21.56 | 0.85 | 40.8 | |
| HBS0705MD | 4.5 | 0.45 | 2.25 | 3200 | 0.20 | 7.14 | 14.63 | 0.58 | 35.7 | |||
| HBS0705LD | 4.5 | 0.30 | 1.50 | 2500 | 0.17 | 5.92 | 9.16 | 0.36 | 28.6 | |||
| HBB0705HD | BALL | 4.5 | 0.65 | 3.25 | 3800 | 0.23 | 8.15 | 21.56 | 0.85 | 40.8 | ||
| HBB0705MD | 4.5 | 0.45 | 2.25 | 3200 | 0.20 | 7.14 | 14.63 | 0.58 | 35.7 | |||
| HBB0705LD | 4.5 | 0.30 | 1.50 | 2500 | 0.17 | 5.92 | 9.16 | 0.36 | 28.6 | |||
| HBS0712HD | SLEEVE | 12 | 9.5 | 0.45 | 5.40 | 3800 | 0.23 | 8.15 | 21.56 | 0.85 | 40.8 | |
| HBS0712MD | 9.5 | 0.23 | 2.76 | 3200 | 0.20 | 7.14 | 14.63 | 0.58 | 35.7 | |||
| HBS0712LD | 9.5 | 0.14 | 1.68 | 2500 | 0.17 | 5.92 | 9.16 | 0.36 | 28.6 | |||
| HBB0712HD | BALL | 9.5 | 0.45 | 5.40 | 3800 | 0.23 | 8.15 | 21.56 | 0.85 | 40.8 | ||
| HBB0712MD | 9.5 | 0.23 | 2.76 | 3200 | 0.20 | 7.14 | 14.63 | 0.58 | 35.7 | |||
| HBB0712LD | 9.5 | 0.14 | 1.68 | 2500 | 0.17 | 5.92 | 9.16 | 0.36 | 28.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
