Product introduction:
| Size: | 100x100x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

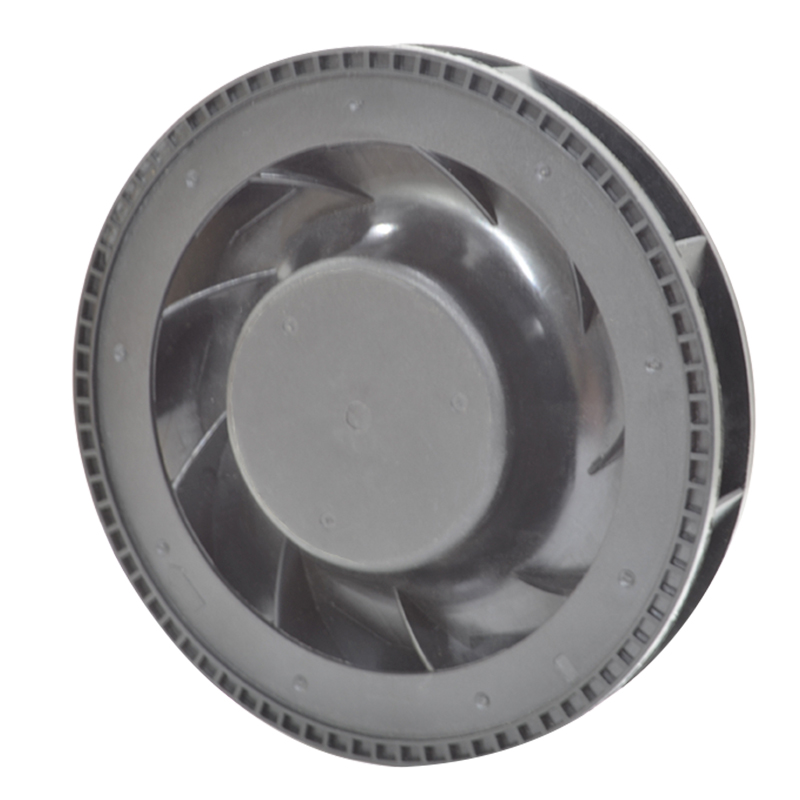

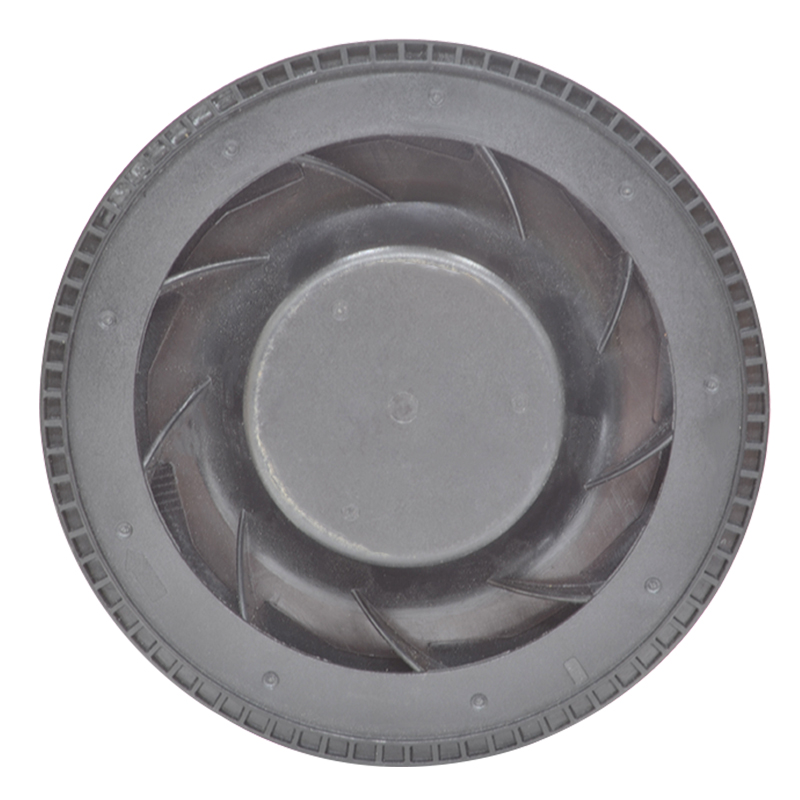

| 100*100*25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS1005HA-1 | SLEEVE | 5 | 4.5 | 0.63 | 3.15 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | |
| HBS1005MA-1 | 4.5 | 0.51 | 2.55 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBS1005LA-1 | 4.5 | 0.39 | 1.95 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBB1005HA-1 | BALL | 4.5 | 0.63 | 3.15 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | ||
| HBB1005MA-1 | 4.5 | 0.51 | 2.55 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBB1005LA-1 | 4.5 | 0.39 | 1.95 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBS1012HA-1 | SLEEVE | 12 | 9.5 | 0.37 | 4.44 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | |
| HBS1012MA-1 | 9.5 | 0.31 | 3.72 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBS1012LA-1 | 9.5 | 0.25 | 3.00 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| HBB1012HA-1 | BALL | 9.5 | 0.37 | 4.44 | 4500 | 1.29 | 45.65 | 24.71 | 0.97 | 54.8 | ||
| HBB1012MA-1 | 9.5 | 0.31 | 3.72 | 3500 | 0.99 | 34.85 | 18.44 | 0.73 | 42.4 | |||
| HBB1012LA-1 | 9.5 | 0.25 | 3.00 | 2500 | 0.71 | 25.19 | 14.16 | 0.56 | 30.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
