| Size: | 172x151x51mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

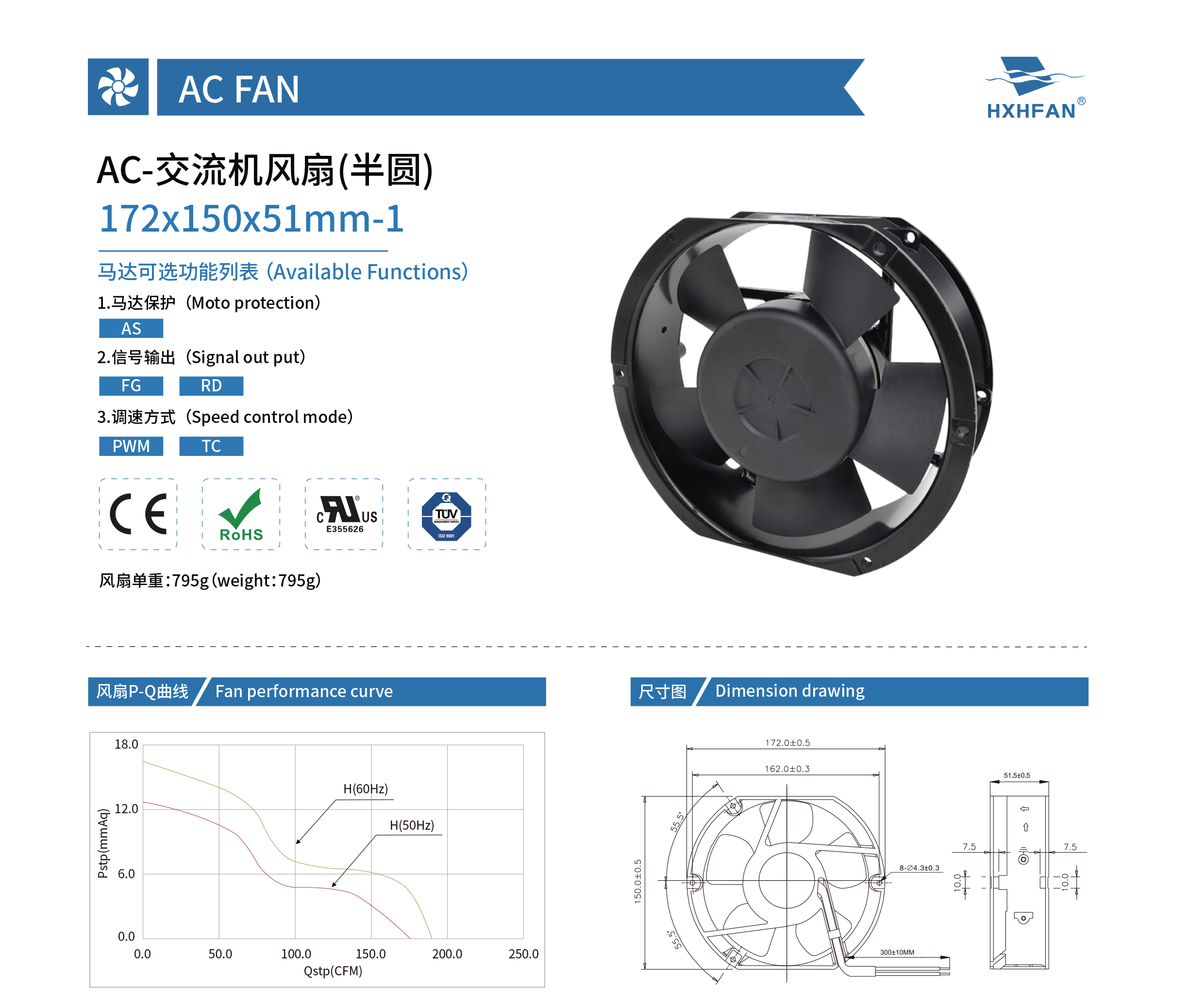

| 172×150×51mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | aFreq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS17110HU-1 | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.51/0.47 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
| HAS17110MU-1 | W/T | 100-125 | 50/60 | 0.40/0.37 | 2000/2300 | 4.10/4.53 | 145/160 | 8.9/10.2 | 0.35/0.40 | 46/49 | ||
| HAB17110HU-1 | W/T | Ball | 100-125 | 50/60 | 0.51/0.47 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 | |
| HAB17110MU-1 | W/T | 100-125 | 50/60 | 0.40/0.37 | 2000/2300 | 4.10/4.53 | 145/160 | 8.9/10.2 | 0.35/0.40 | 46/49 | ||
| HAS17220HU-1 | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.26/0.24 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 |
| HAS17220MU-1 | W/T | 200-240 | 50/60 | 0.21/0.19 | 2000/2300 | 4.10/4.53 | 145/160 | 8.9/10.2 | 0.35/0.40 | 46/49 | ||

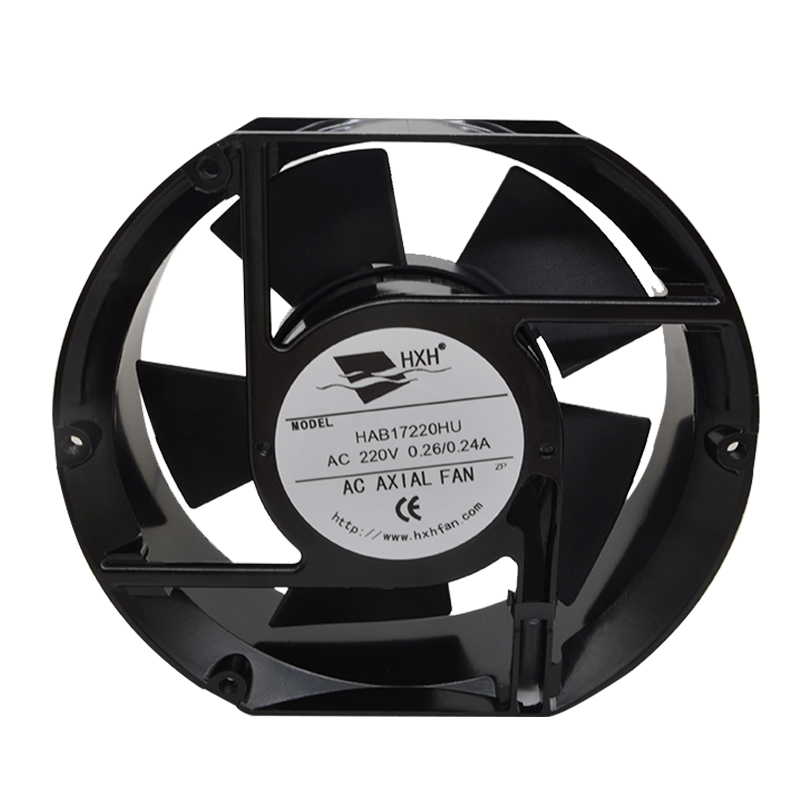

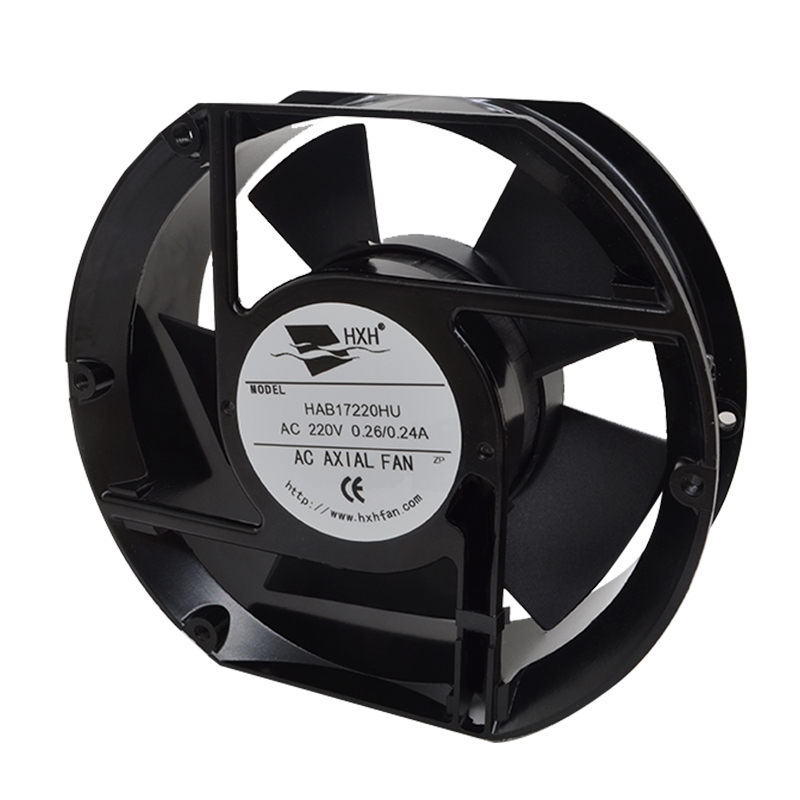

| HAB17220HU-1 | W/T | Ball | 200-240 | 50/60 | 0.26/0.24 | 2500/2800 | 4.95/5.38 | 175/190 | 12.7/16.5 | 0.50/0.65 | 55/60 | |
| HAB17220MU-1 | W/T | 200-240 | 50/60 | 0.21/0.19 | 2000/2300 | 4.10/4.53 | 145/160 | 8.9/10.2 | 0.35/0.40 | 46/49 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
