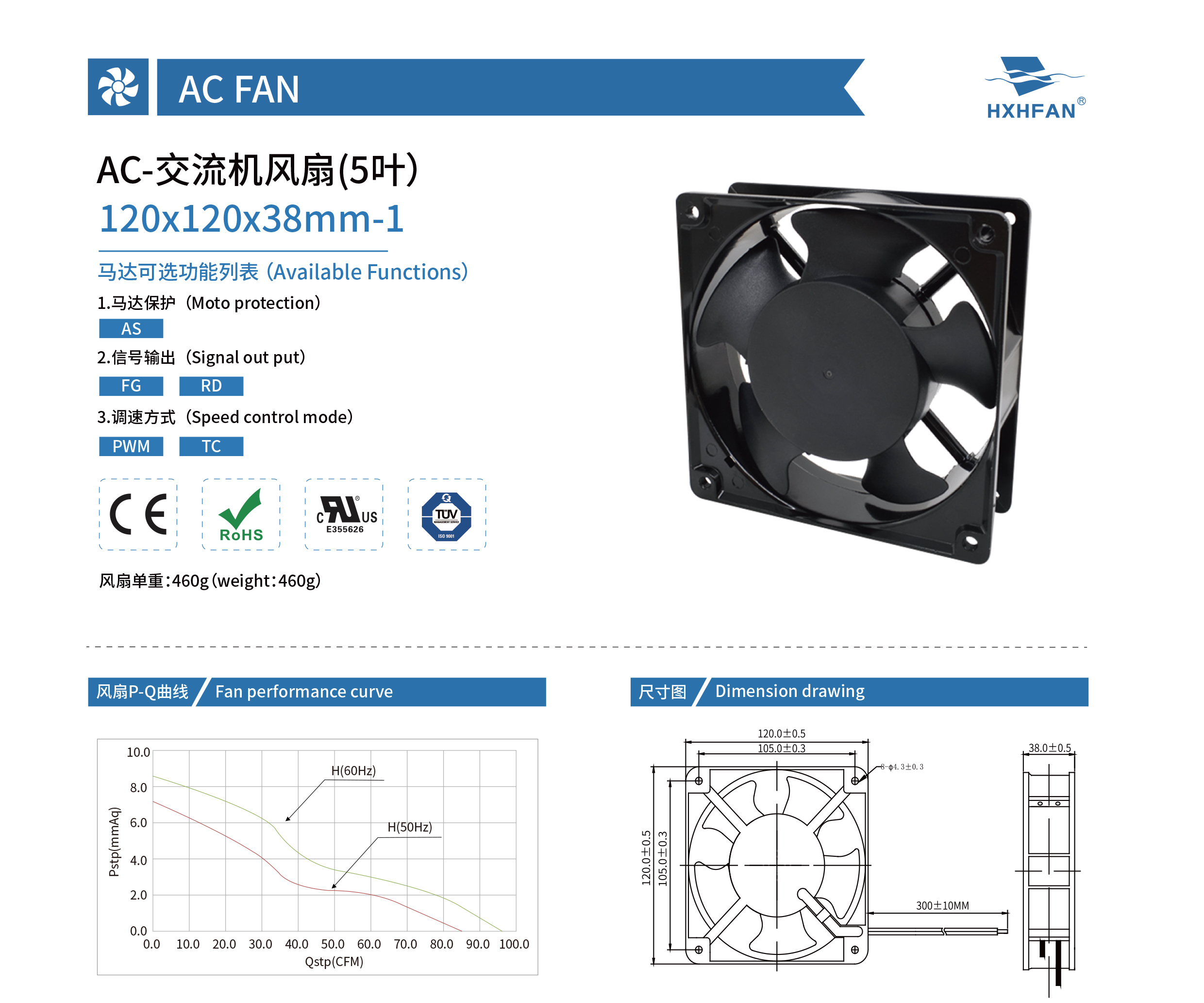

| Size: | 120x120x38mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS12110HF | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.22/0.18 | 2500/2800 | 2.41/2.72 | 85/96 | 7.2/8.6 | 0.28/0.34 | 40/45 |
| HAS12110MF | W/T | 100-125 | 50/60 | 0.17/0.15 | 2400/2200 | 2.15/2.01 | 76/71 | 5.7/5.1 | 0.22/0.20 | 37/35 | ||
| HAB12110HF | W/T | Ball | 100-125 | 50/60 | 0.22/0.18 | 2500/2800 | 2.41/2.72 | 85/96 | 7.2/8.6 | 0.28/0.34 | 40/45 | |
| HAB12110MF | W/T | 100-125 | 50/60 | 0.17/0.15 | 2400/2200 | 2.15/2.01 | 76/71 | 5.7/5.1 | 0.22/0.20 | 37/35 | ||
| HAS12220HF | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.14/0.12 | 2500/2800 | 2.41/2.72 | 85/96 | 7.2/8.6 | 0.28/0.34 | 40/45 |
| HAS12220MF | W/T | 200-240 | 50/60 | 0.09/0.08 | 2400/2200 | 2.15/2.01 | 76/71 | 5.7/5.1 | 0.22/0.20 | 37/35 | ||

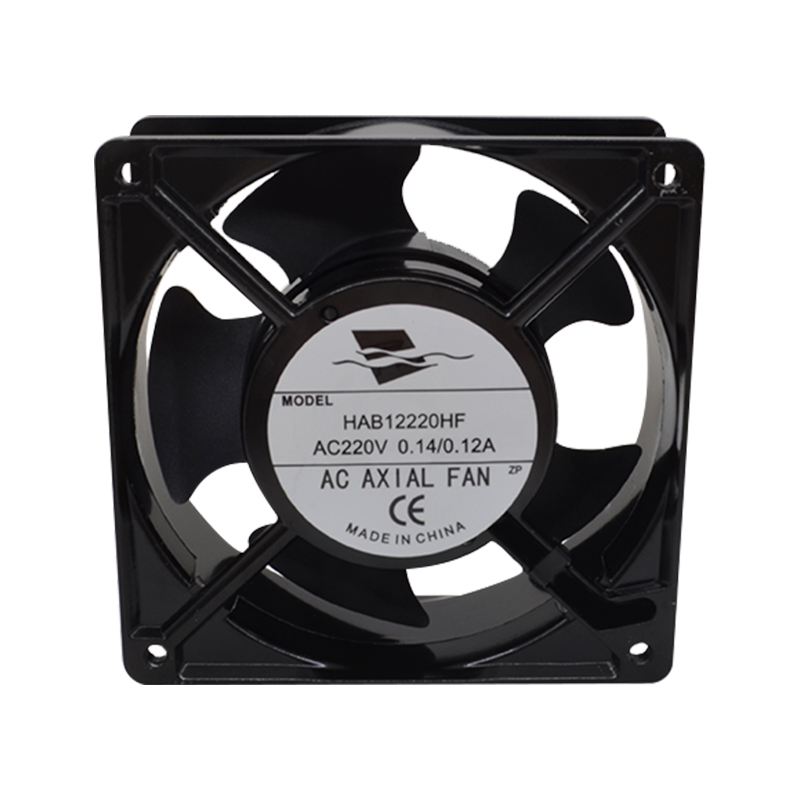

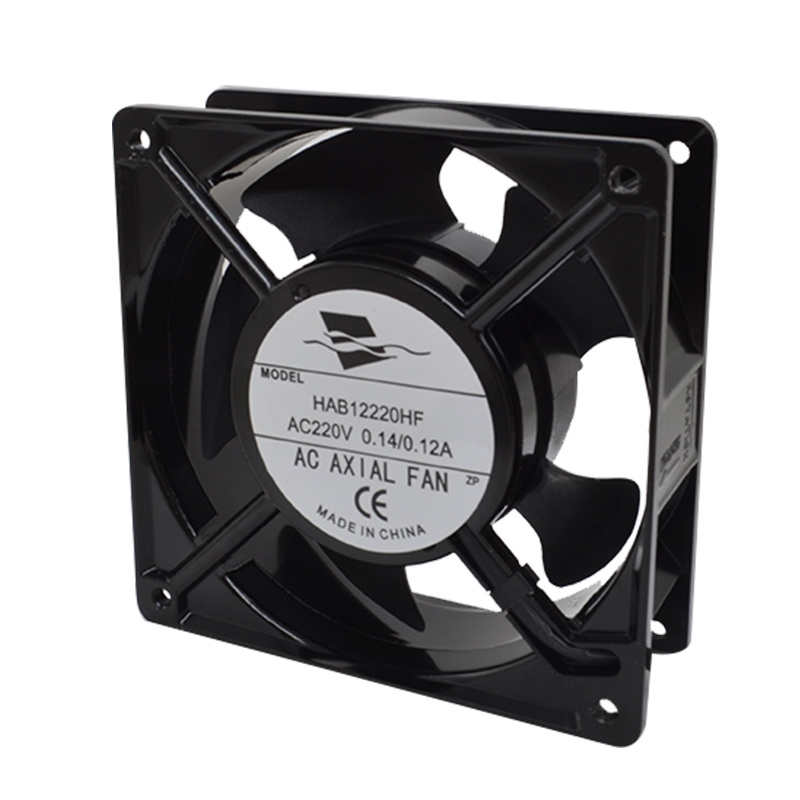

| HAB12220HF | W/T | Ball | 200-240 | 50/60 | 0.14/0.12 | 2500/2800 | 2.41/2.72 | 85/96 | 7.2/8.6 | 0.28/0.34 | 40/45 | |
| HAB12220MF | W/T | 200-240 | 50/60 | 0.09/0.08 | 2400/2200 | 2.15/2.01 | 76/71 | 5.7/5.1 | 0.22/0.20 | 37/35 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
