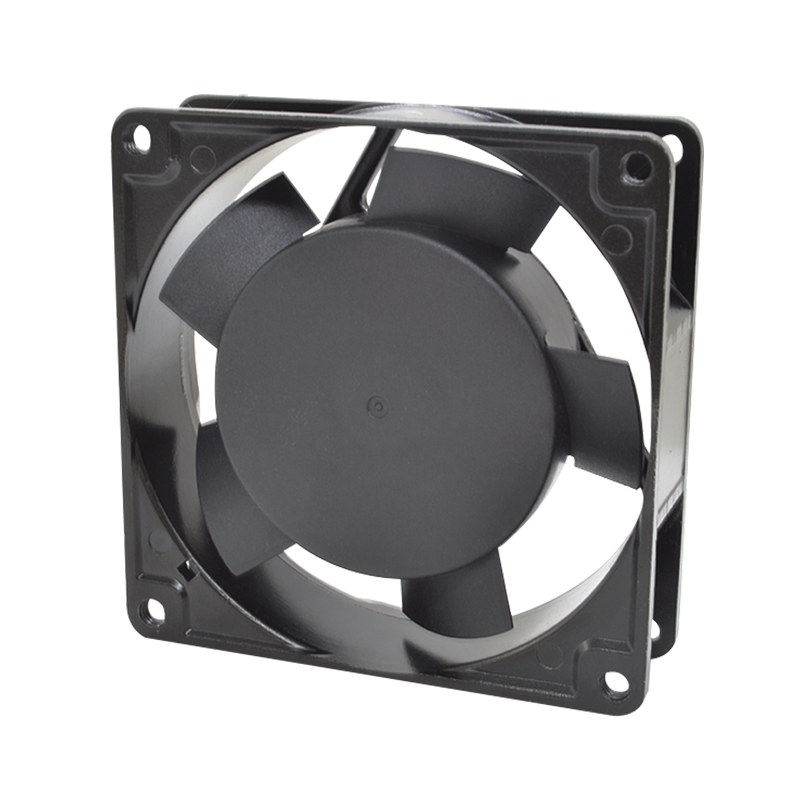

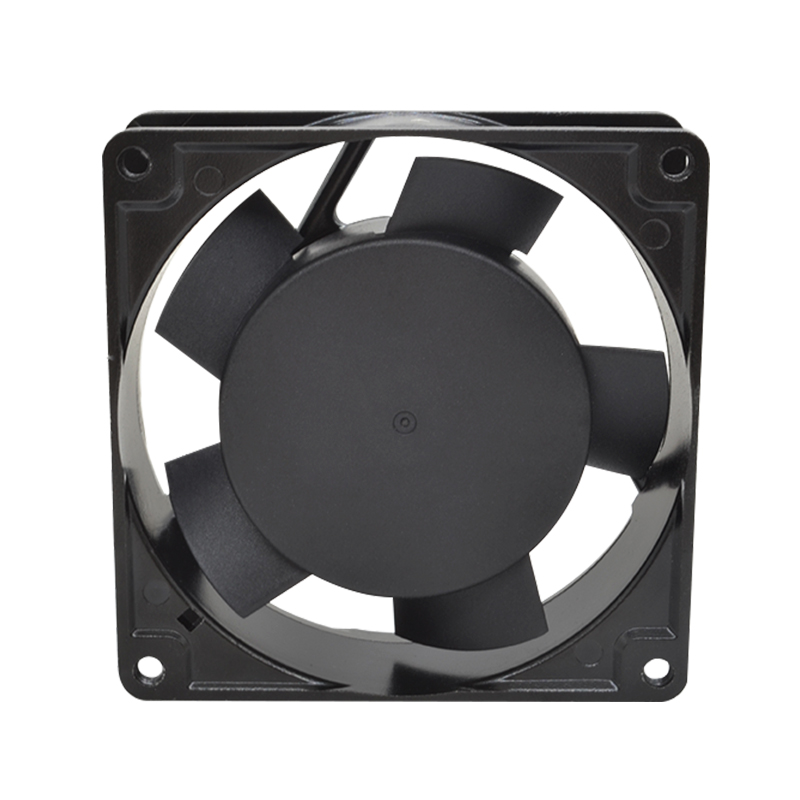

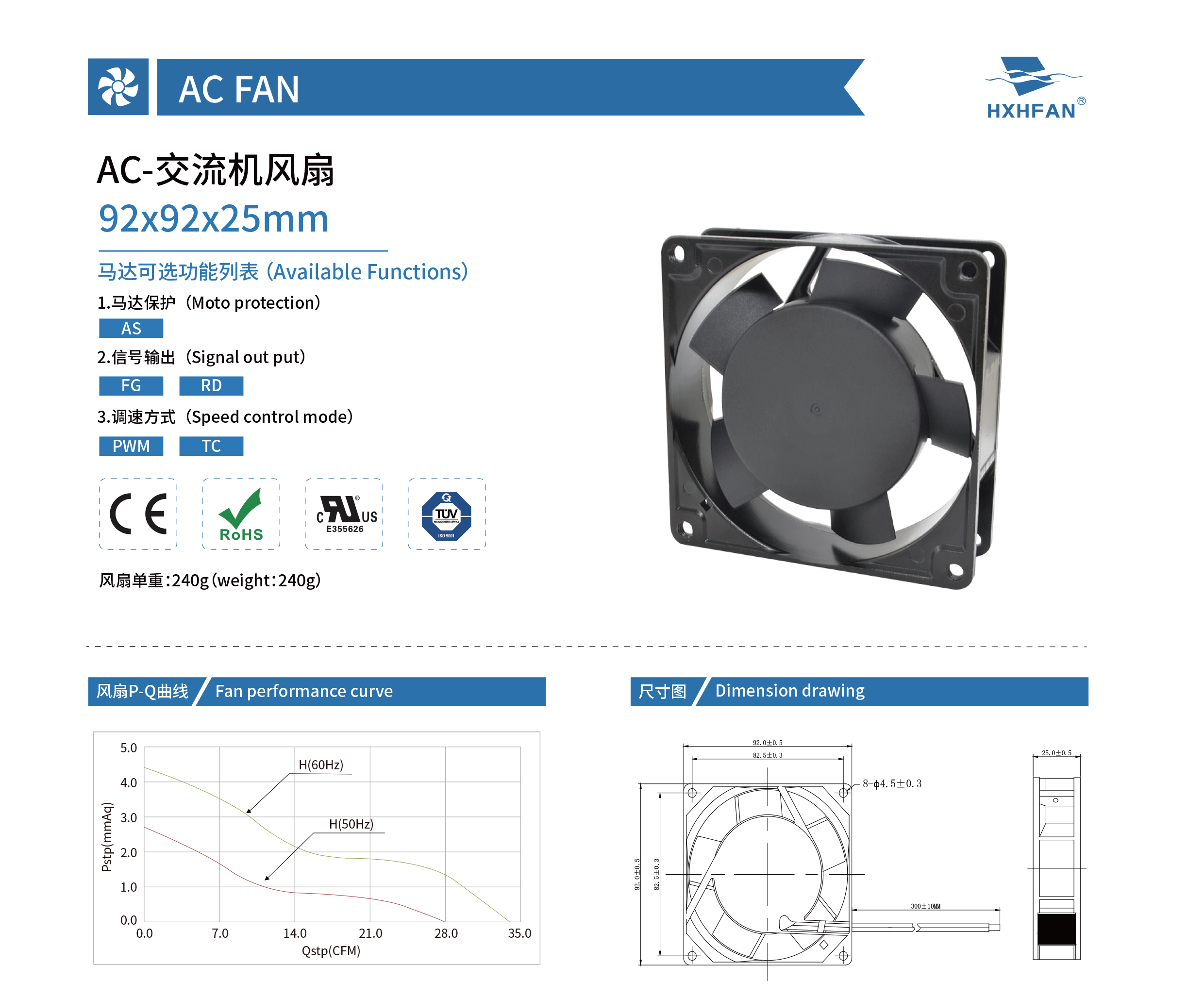

| Size: | 92x92x25mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 92×92×25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

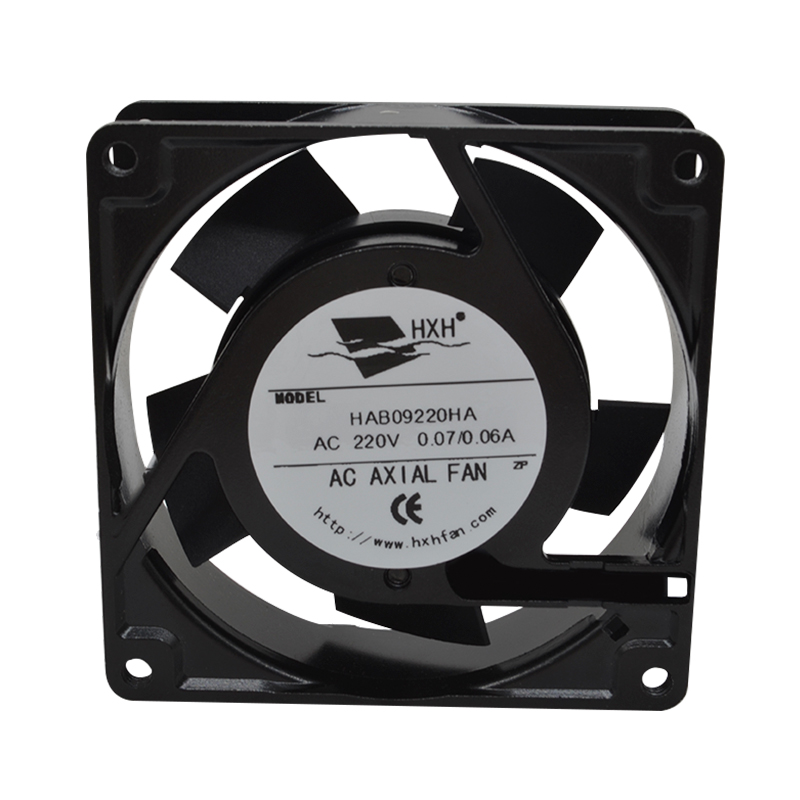

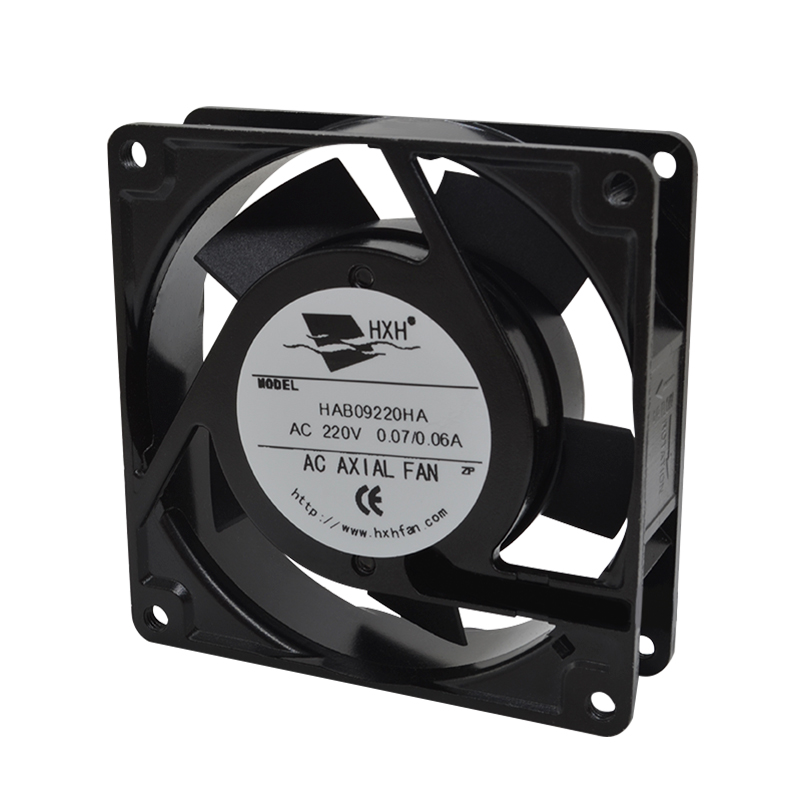

| HAS09110HA | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.12/0.11 | 2300/2800 | 0.79/0.96 | 28/34 | 2.7/4.4 | 0.11/0.17 | 34/40 |
| HAS09110MA | W/T | 100-125 | 50/60 | 0.14/0.13 | 1800/2300 | 0.62/0.74 | 22/26 | 1.9/2.8 | 0.07/0.11 | 28/35 | ||
| HAB09110HA | W/T | Ball | 100-125 | 50/60 | 0.12/0.11 | 2300/2800 | 0.79/0.96 | 28/34 | 2.7/4.4 | 0.11/0.17 | 34/40 | |
| HAB09110MA | W/T | 100-125 | 50/60 | 0.14/0.13 | 1800/2300 | 0.62/0.74 | 22/26 | 1.9/2.8 | 0.07/0.11 | 28/35 | ||
| HAS09220HA | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.07/0.06 | 2300/2800 | 0.79/0.96 | 28/34 | 2.7/4.4 | 0.11/0.17 | 34/40 |
| HAS09220MA | W/T | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 0.62/0.74 | 22/26 | 1.9/2.8 | 0.07/0.11 | 28/35 | ||
| HAB09220HA | W/T | Ball | 200-240 | 50/60 | 0.07/0.06 | 2300/2800 | 0.79/0.96 | 28/34 | 2.7/4.4 | 0.11/0.17 | 34/40 | |
| HAB09220MA | W/T | 200-240 | 50/60 | 0.08/0.07 | 1800/2300 | 0.62/0.74 | 22/26 | 1.9/2.8 | 0.07/0.11 | 28/35 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
