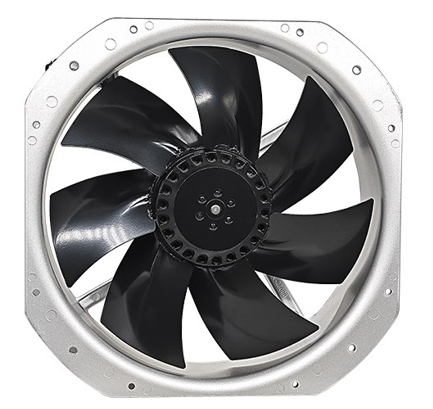

| Size: | 280x280x80mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Oil bearing, ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

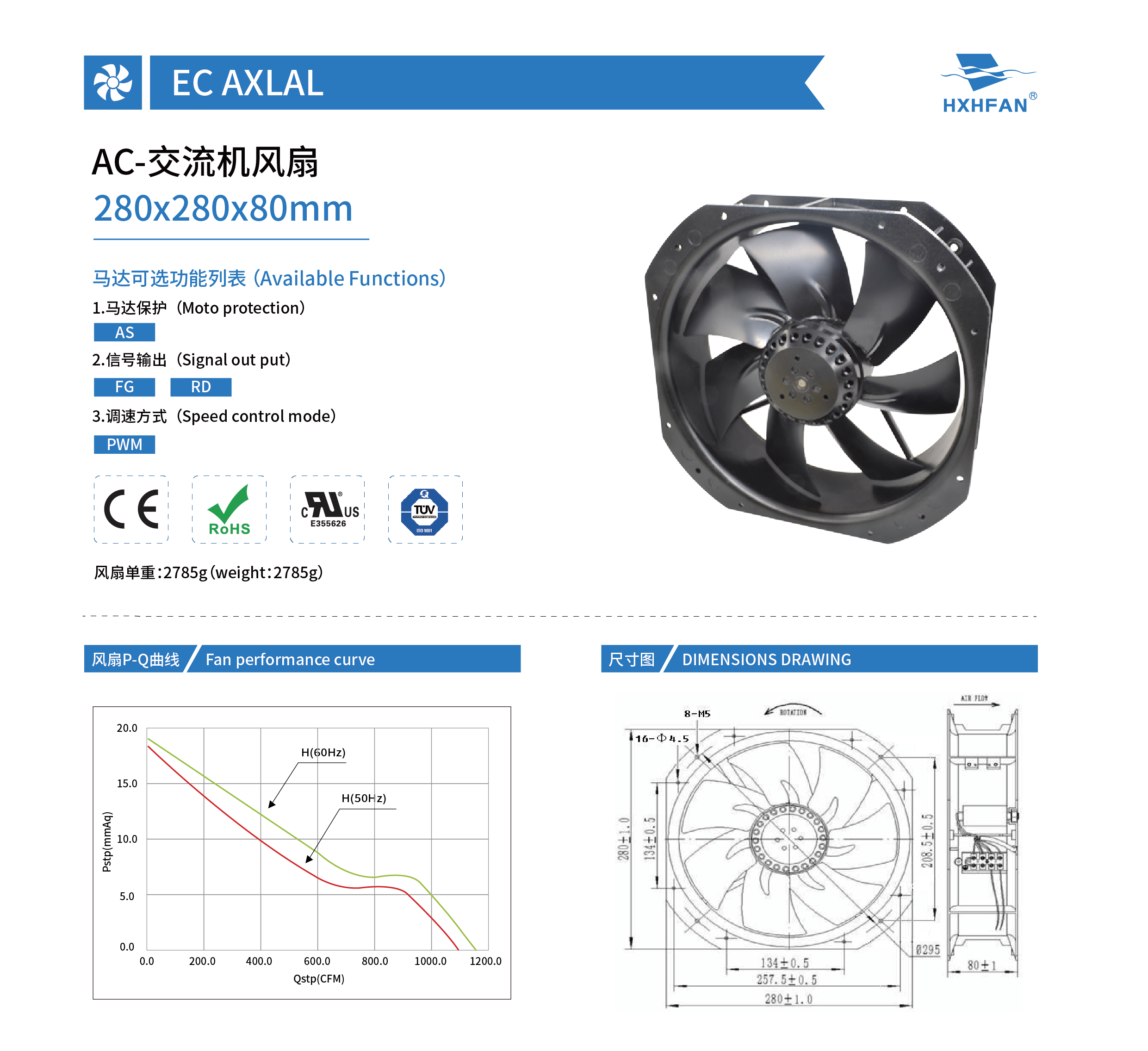

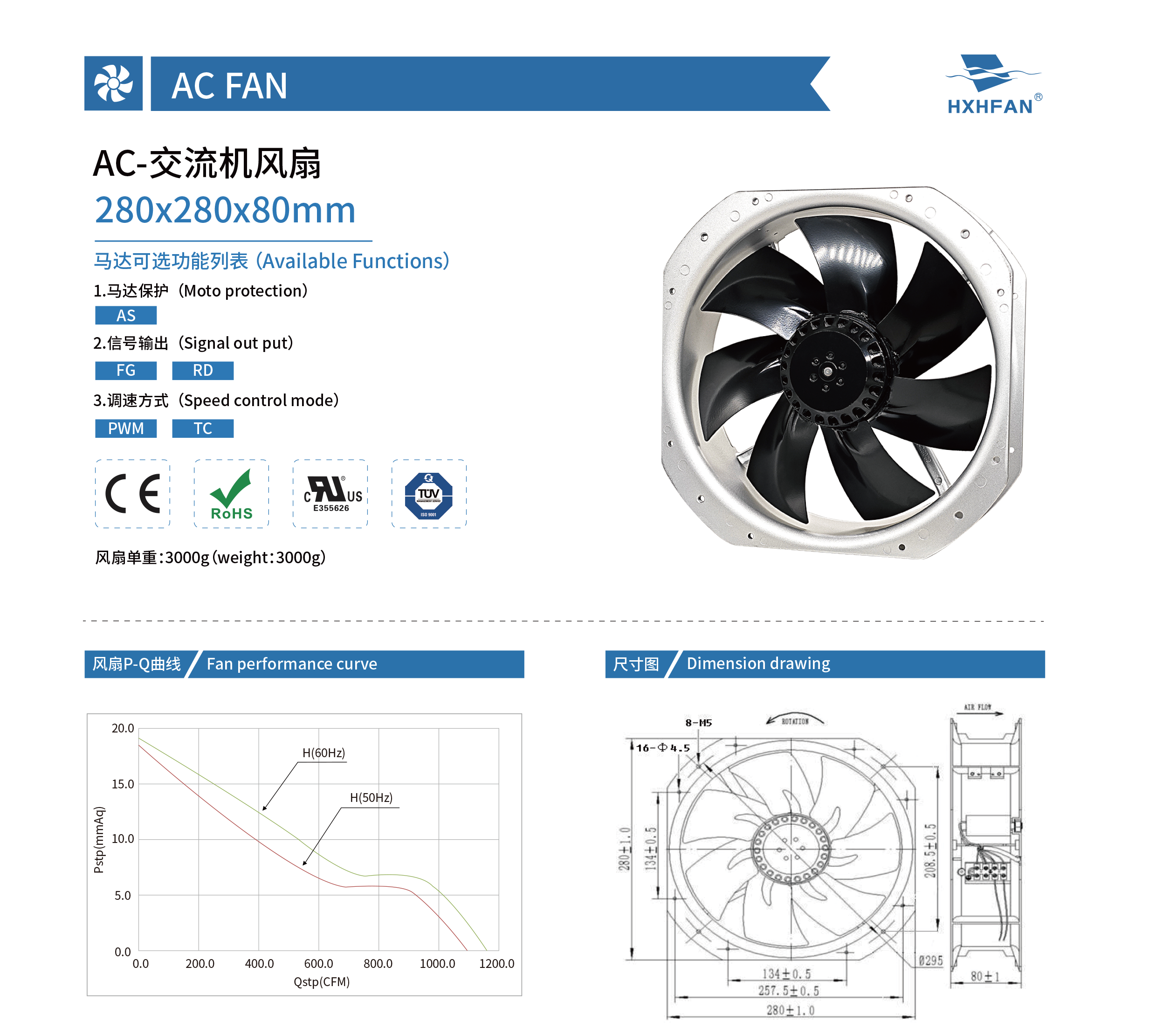

| 280×280×80mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB280110HX | W/T | Ball | 110 | 100-125 | 50/60 | 1.20/1.30 | 2500/2700 | 31.07/32.83 | 1098/1160 | 18.5/19.1 | 0.73/0.75 | 69/70 |

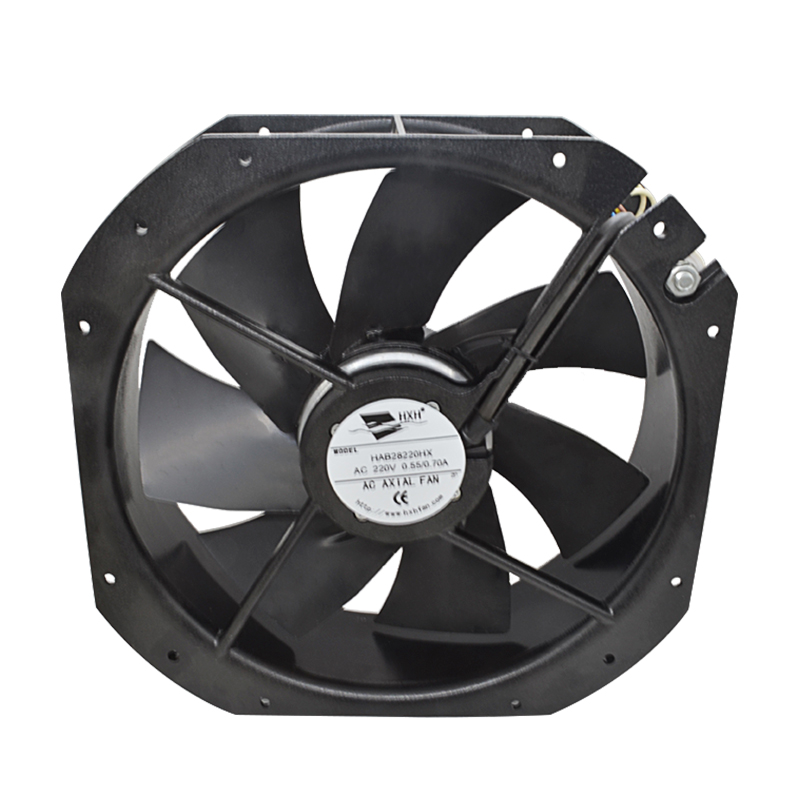

| HAB280220HX | W/T | Ball | 220 | 200-240 | 50/60 | 0.55/0.70 | 2500/2700 | 31.07/32.83 | 1098/1160 | 18.5/19.1 | 0.73/0.75 | 69/70 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
