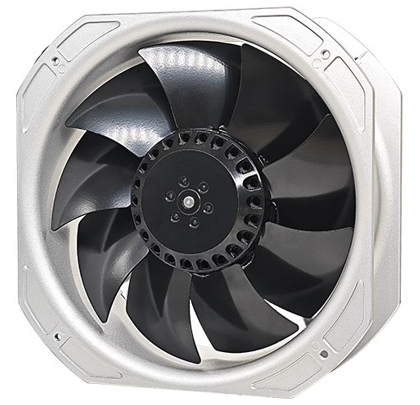

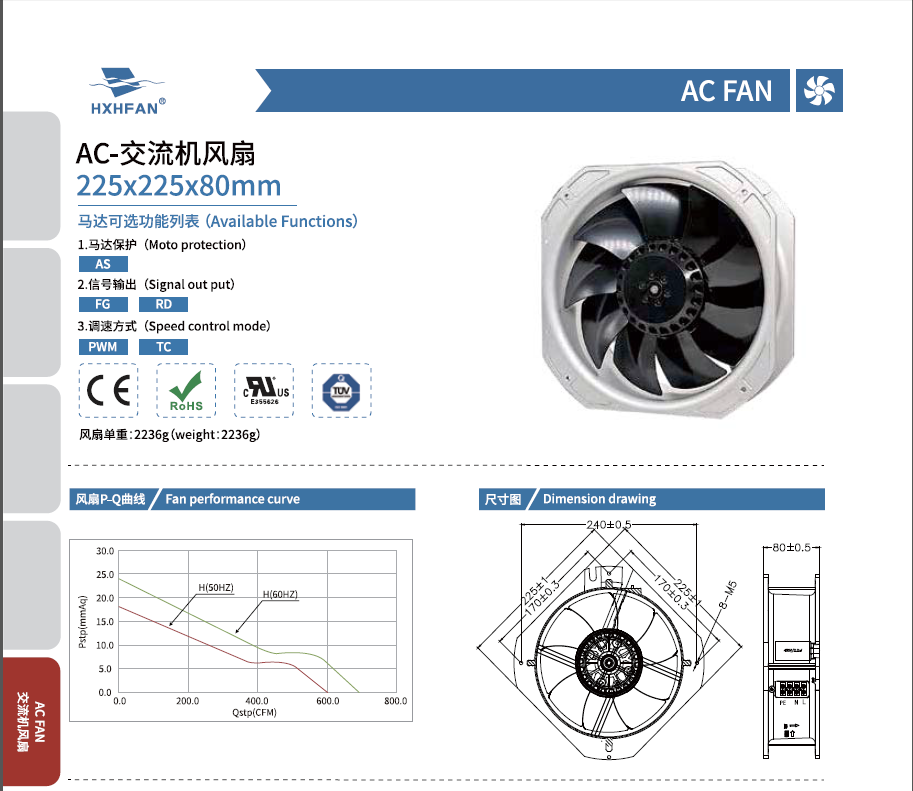

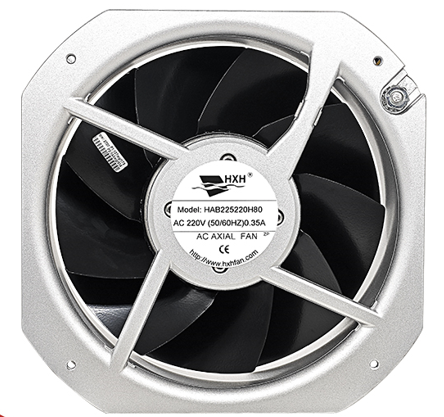

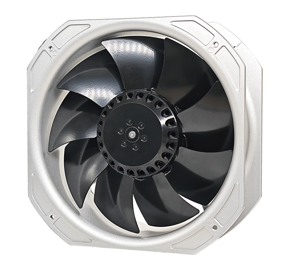

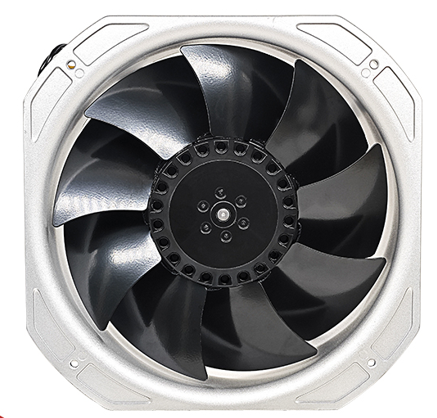

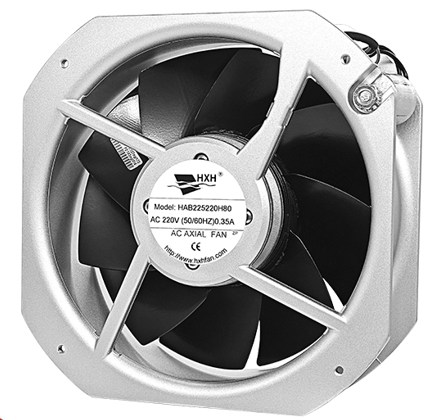

| 225×225×80MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB225110H80 | W/T | Ball | 110 | 100-125 | 50/60 | 0.52/0.74 | 2600/3000 | 16.98/19.59 | 600.00/692.31 | 18.0/24.0 | 0.71/0.94 | 61.0 |
| HAB225220H80 | W/T | Ball | 220 | 200-240 | 50/60 | 0.26/0.37 | 2600/3000 | 16.98/19.59 | 600.00/692.31 | 18.0/24.0 | 0.71/0.94 | 61.0 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
