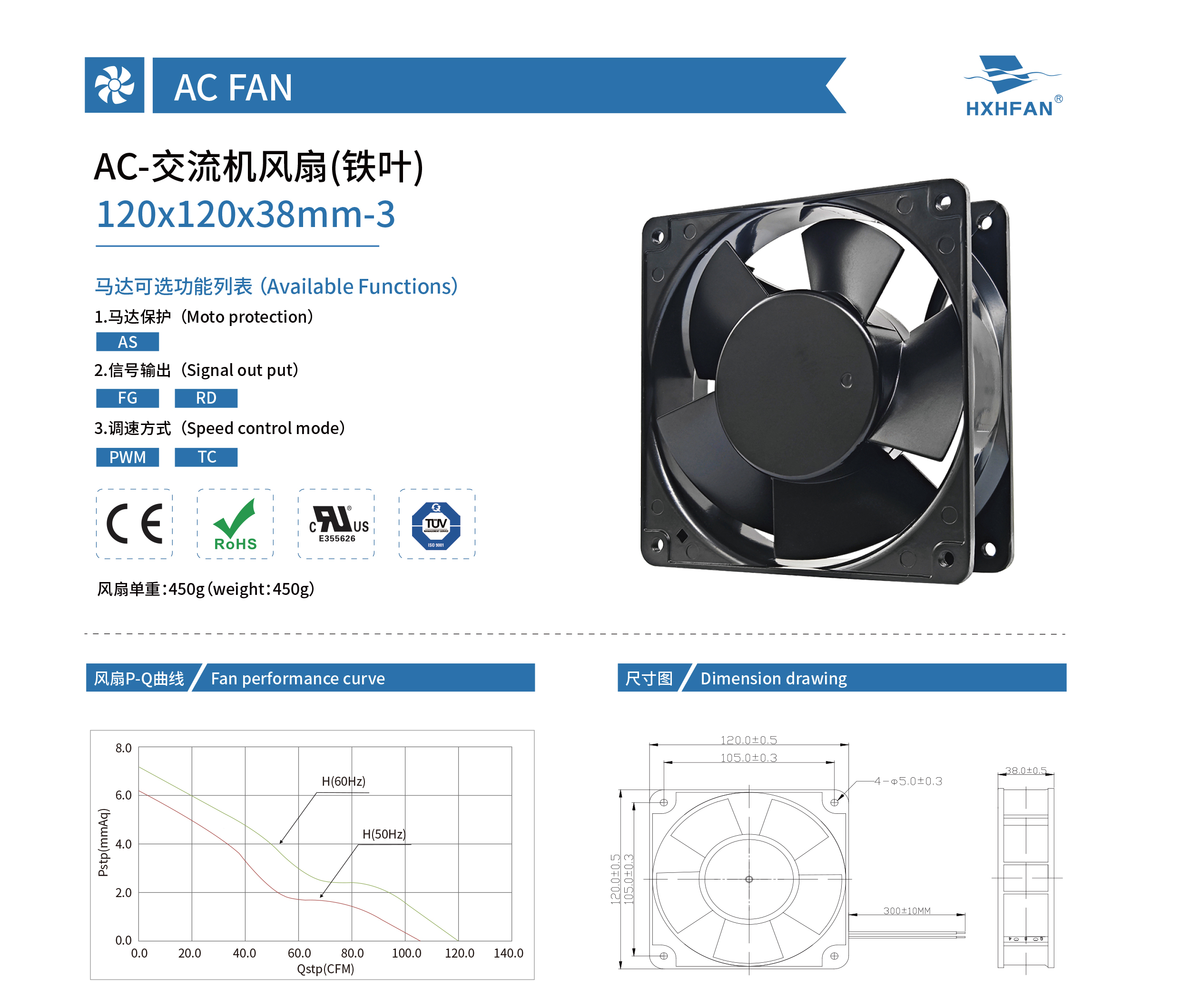

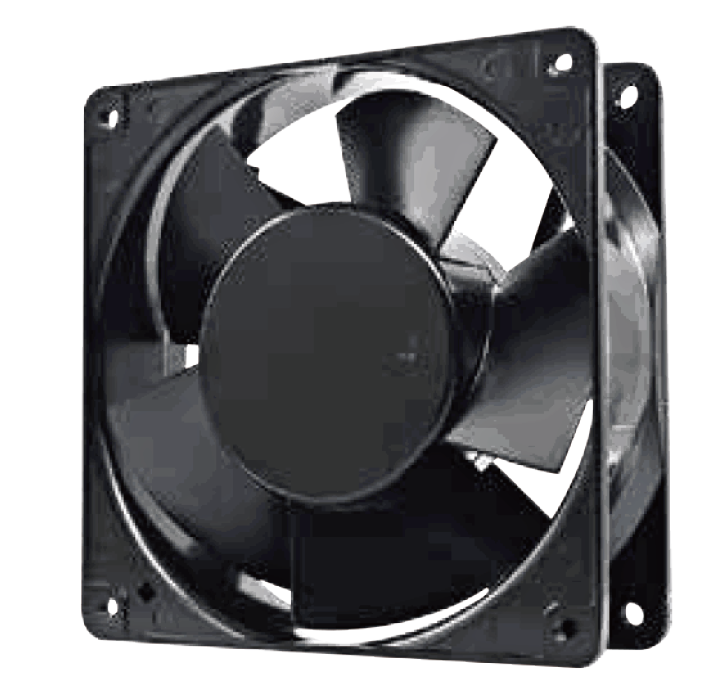

| 120*120*38MM-3(Aluminum Alloy lron leaf) | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB120110H38-3 | W/T | Ball | 110 | 100-125 | 50/60 | 0.25/0.21 | 2600/3000 | 3.00/3.40 | 106/120 | 6.2/7.2 | 0.24/0.28 | 46/50 |
| HAB120220H38-3 | W/T | Ball | 220 | 200-240 | 50/60 | 0.14/0.12 | 2600/3000 | 3.00/3.40 | 106/120 | 6.2/7.2 | 0.24/0.28 | 46/50 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
