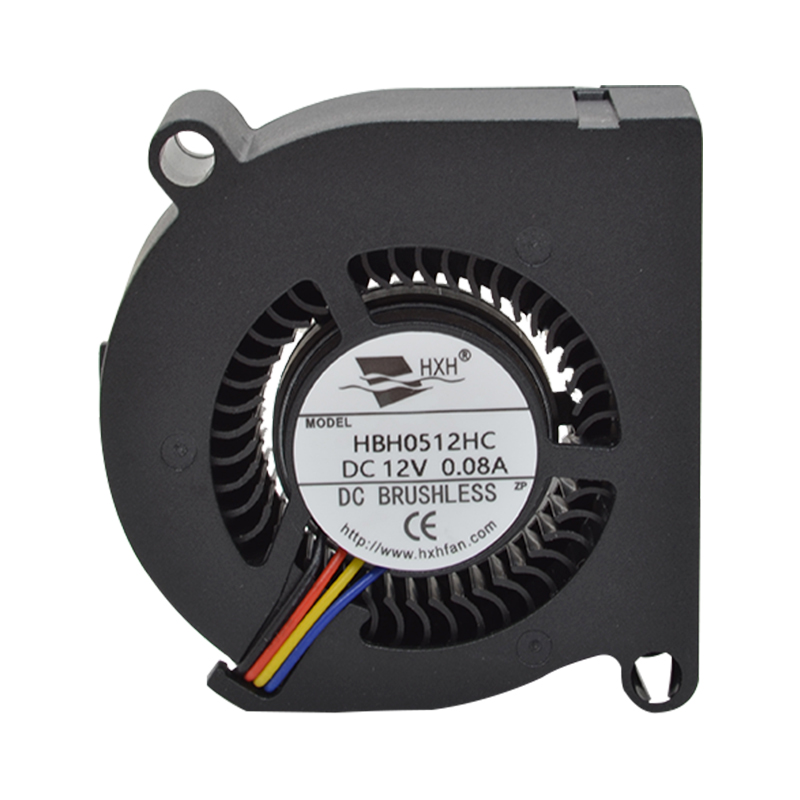

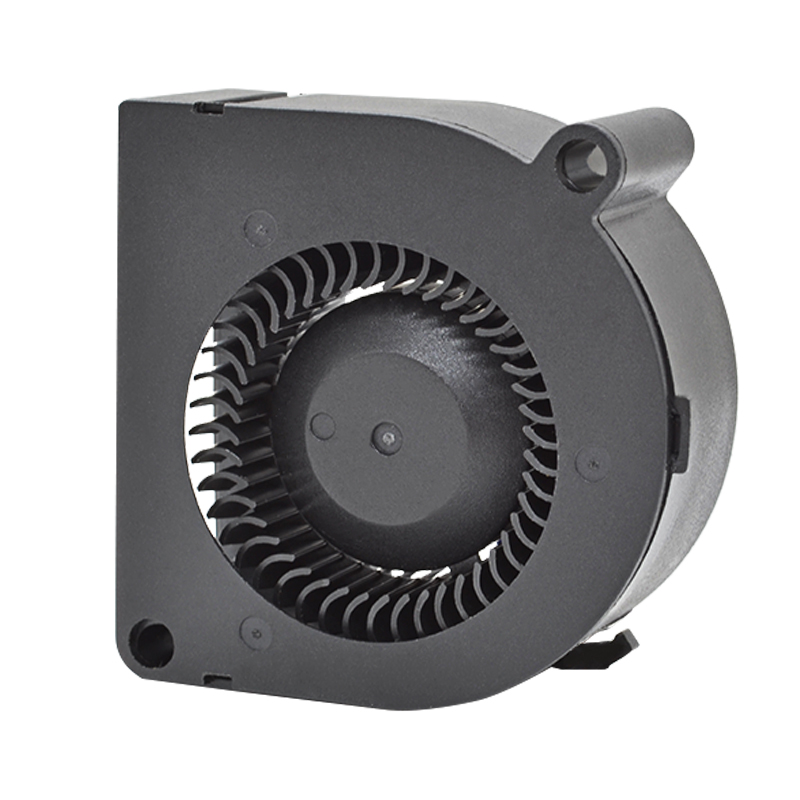

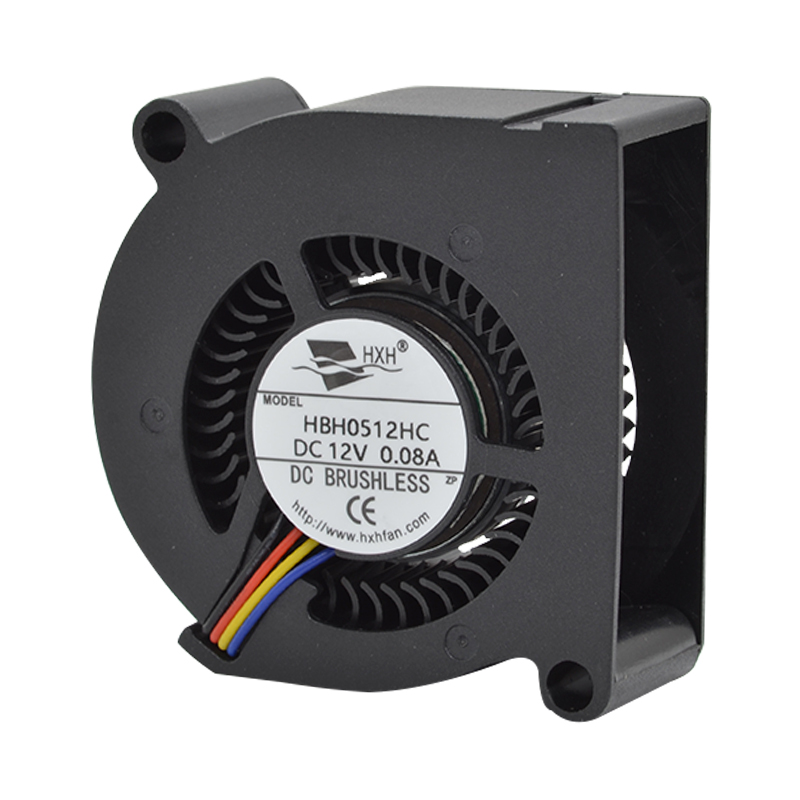

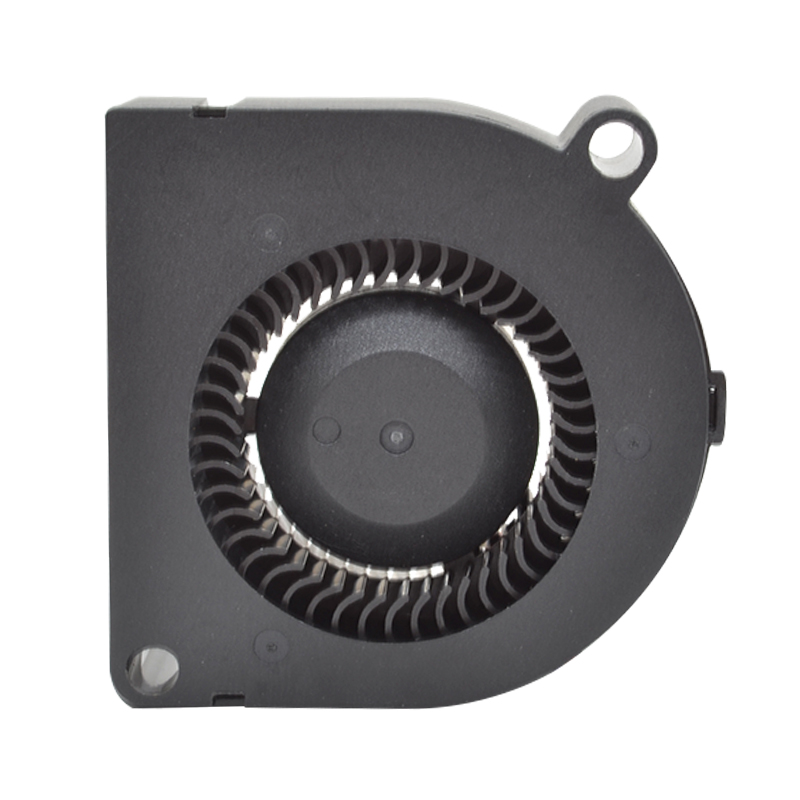

Product introduction:
| Size: | 50x50x20mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic bearings, ball bearings |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 50×50×20MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0505MC-2 | -A | Hydraulic | 5 | 4.0 | 0.19 | 0.95 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 |
| HBH0505LC-2 | 4.0 | 0.15 | 0.75 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBB0505MC-2 | -A | Ball | 4.0 | 0.19 | 0.95 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 | |
| HBB0505LC-2 | 4.0 | 0.15 | 0.75 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBH0512EC-2 | Hydraulic | 12 | 5.0 | 0.25 | 3.00 | 5500 | 0.17 | 6.00 | 12.19 | 0.48 | 34.8 | |
| HBH0512UC-2 | 5.0 | 0.18 | 2.16 | 5000 | 0.15 | 5.46 | 10.08 | 0.40 | 32.7 | |||
| HBH0512HC-2 | 5.0 | 0.14 | 1.68 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 | |||
| HBH0512MC-2 | 5.0 | 0.13 | 1.56 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBH0512LC-2 | 5.0 | 0.12 | 1.44 | 3000 | 0.09 | 3.27 | 6.63 | 0.26 | 21.6 | |||
| HBB0512EC-2 | Ball | 5.0 | 0.25 | 3.00 | 5500 | 0.17 | 6.00 | 12.19 | 0.48 | 34.8 | ||
| HBB0512UC-2 | 5.0 | 0.18 | 2.16 | 5000 | 0.15 | 5.46 | 10.08 | 0.40 | 32.7 | |||
| HBB0512HC-2 | 5.0 | 0.14 | 1.68 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 | |||
| HBB0512MC-2 | 5.0 | 0.13 | 1.56 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBB0512LC-2 | 5.0 | 0.12 | 1.44 | 3000 | 0.09 | 3.27 | 6.63 | 0.26 | 21.6 | |||
| HBH0524EC-2 | Hydraulic | 24 | 12.0 | 0.25 | 6.00 | 5500 | 0.17 | 6.00 | 12.19 | 0.48 | 34.8 | |
| HBH0524UC-2 | 12.0 | 0.20 | 4.80 | 5000 | 0.15 | 5.46 | 10.08 | 0.40 | 32.7 | |||
| HBH0524HC-2 | 12.0 | 0.15 | 3.60 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 | |||
| HBH0524MC-2 | 12.0 | 0.12 | 2.88 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBH0524LC-2 | 12.0 | 0.09 | 2.16 | 3000 | 0.09 | 3.27 | 6.63 | 0.26 | 21.6 | |||
| HBB0524EC-2 | Ball | 12.0 | 0.25 | 6.00 | 5500 | 0.17 | 6.00 | 12.19 | 0.48 | 34.8 | ||
| HBB0524HC-2 | 12.0 | 0.20 | 4.80 | 5000 | 0.15 | 5.46 | 10.08 | 0.40 | 32.7 | |||
| HBB0524UC-2 | 12.0 | 0.15 | 3.60 | 4500 | 0.14 | 4.92 | 8.16 | 0.32 | 30.4 | |||
| HBB0524MC-2 | 12.0 | 0.12 | 2.88 | 3500 | 0.11 | 3.82 | 7.82 | 0.31 | 25.0 | |||
| HBB0524LC-2 | 12.0 | 0.09 | 2.16 | 3000 | 0.09 | 3.27 | 6.63 | 0.26 | 21.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
