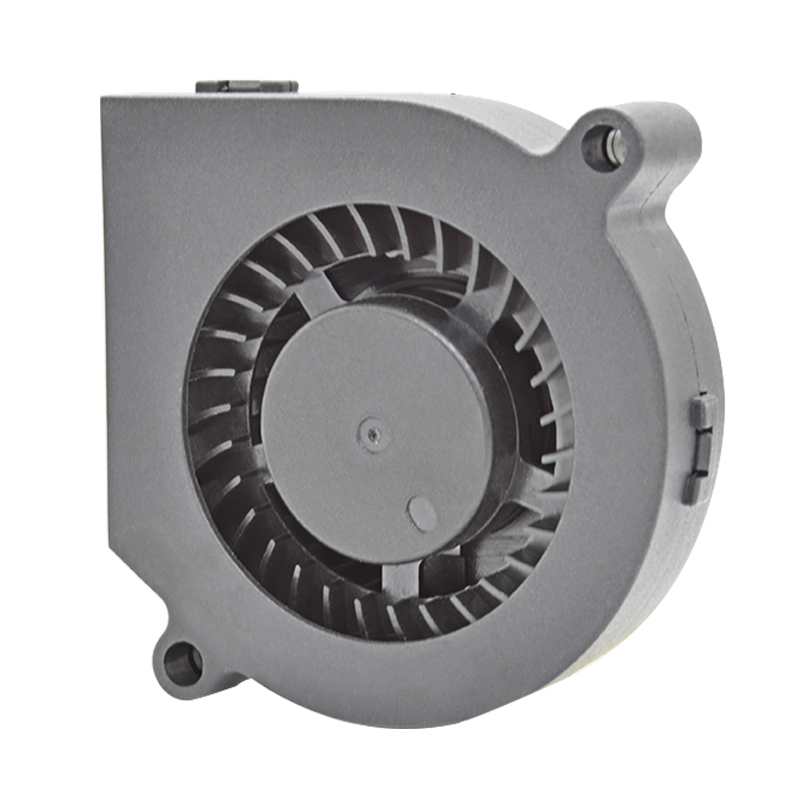

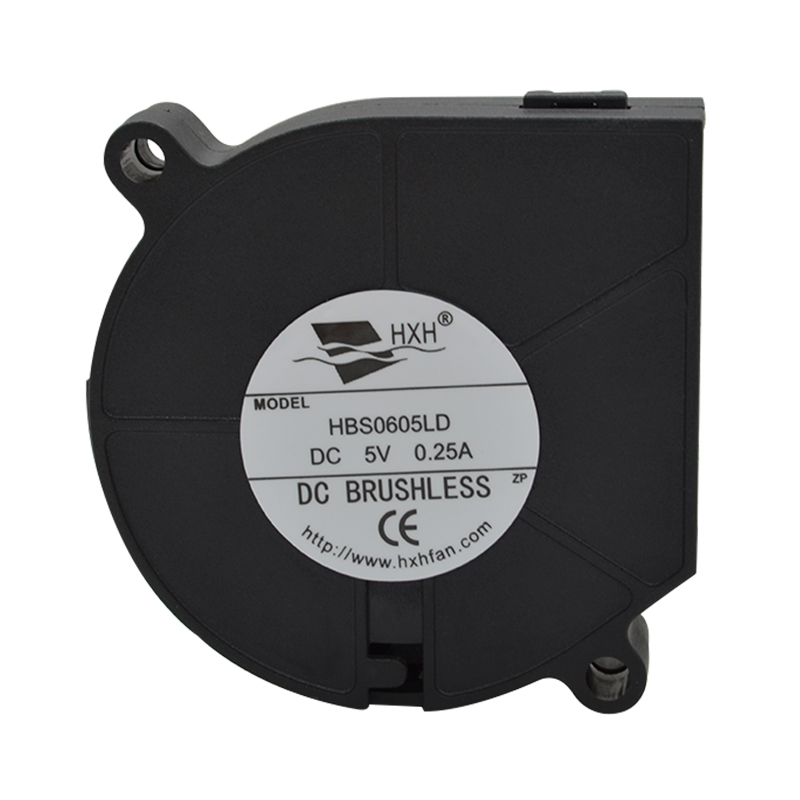

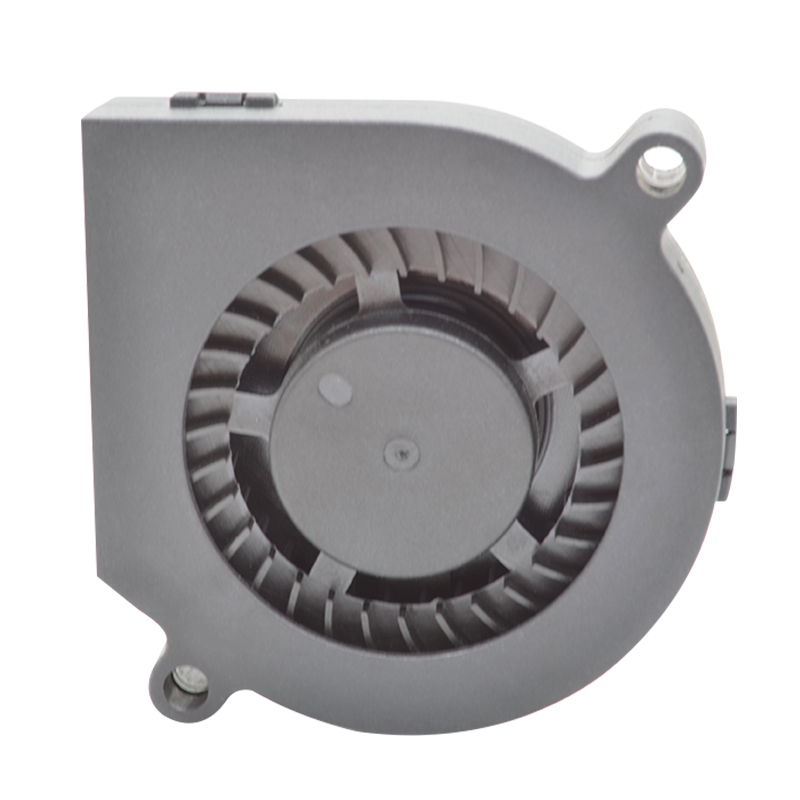

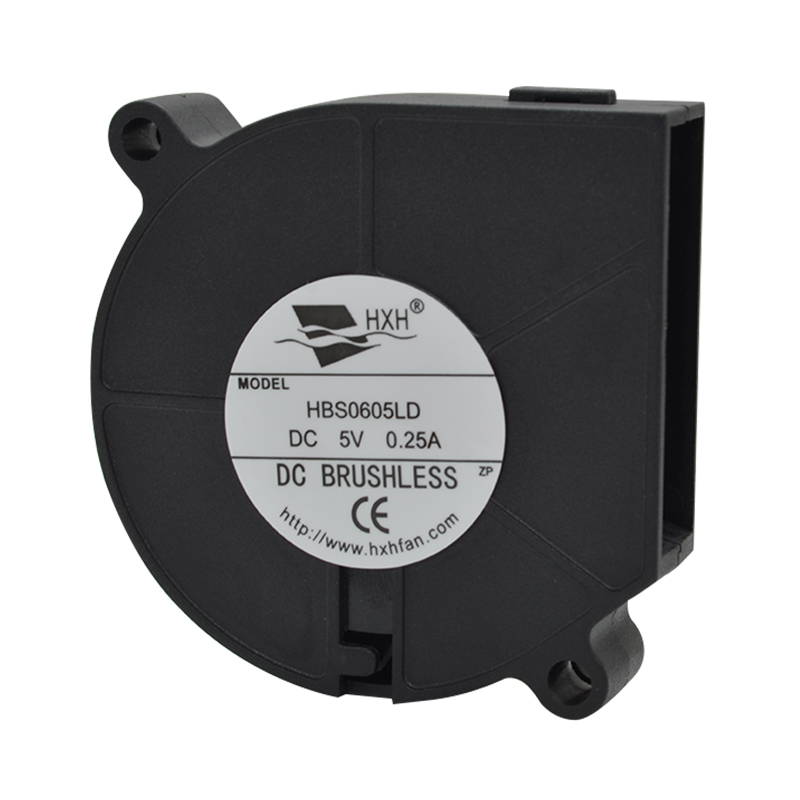

Product introduction:
| Size: | 60x60x15mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
规格
| Size（mm） | 60X60X15mm |
|---|---|
| Rated voltage: | 5V,12V,24V |
| 60*60*15MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0605MD-1 | SLEEVE | 5 | 4.5 | 0.35 | 1.75 | 3500 | 0.10 | 3.65 | 10.12 | 0.40 | 32.4 | |
| HBS0605LD-1 | 4.5 | 0.25 | 1.25 | 2800 | 0.09 | 3.24 | 7.92 | 0.31 | 27.1 | |||
| HBB0605MD-1 | BALL | 4.5 | 0.35 | 1.75 | 3500 | 0.10 | 3.65 | 10.12 | 0.40 | 32.4 | ||
| HBB0605LD-1 | 4.5 | 0.25 | 1.25 | 2800 | 0.09 | 3.24 | 7.92 | 0.31 | 27.1 | |||
| HBS0612HD-1 | SLEEVE | 12 | 9.5 | 0.24 | 2.88 | 4200 | 0.12 | 4.35 | 12.12 | 0.48 | 39.1 | |
| HBS0612MD-1 | 9.5 | 0.20 | 2.40 | 3500 | 0.10 | 3.65 | 10.12 | 0.40 | 32.4 | |||
| HBS0612LD-1 | 9.5 | 0.16 | 1.92 | 2800 | 0.09 | 3.24 | 7.92 | 0.31 | 27.1 | |||
| HBB0612HD-1 | BALL | 9.5 | 0.24 | 2.88 | 4200 | 0.12 | 4.35 | 12.12 | 0.48 | 39.1 | ||
| HBB0612MD-1 | 9.5 | 0.20 | 2.40 | 3500 | 0.10 | 3.65 | 10.12 | 0.40 | 32.4 | |||
| HBB0612LD-1 | 9.5 | 0.16 | 1.92 | 2800 | 0.09 | 3.24 | 7.92 | 0.31 | 27.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
