Product introduction:
| Size: | 51x51x15mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil-impregnated bearings Ball bearings |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

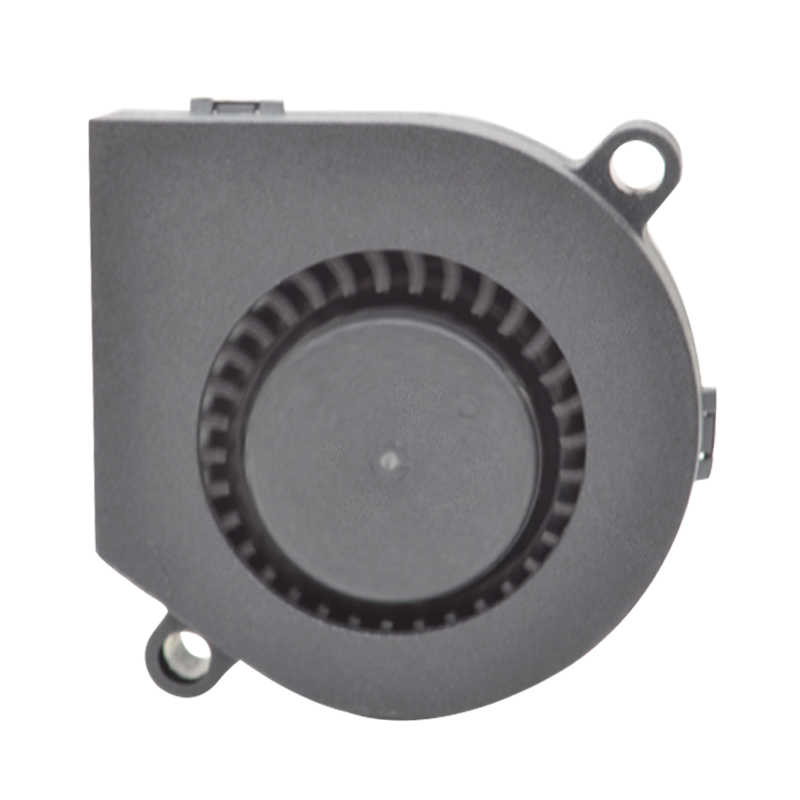

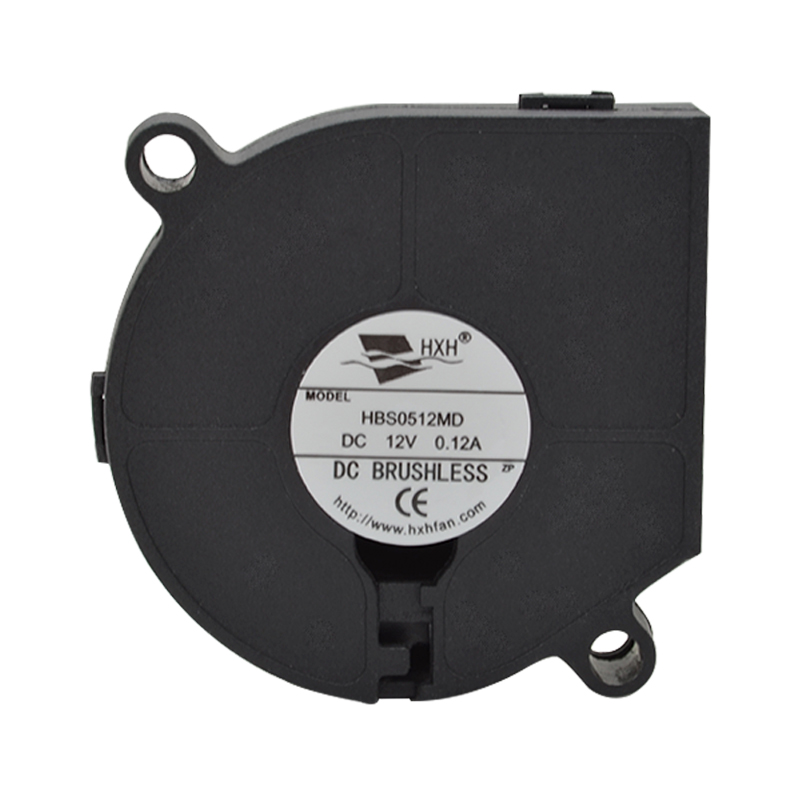

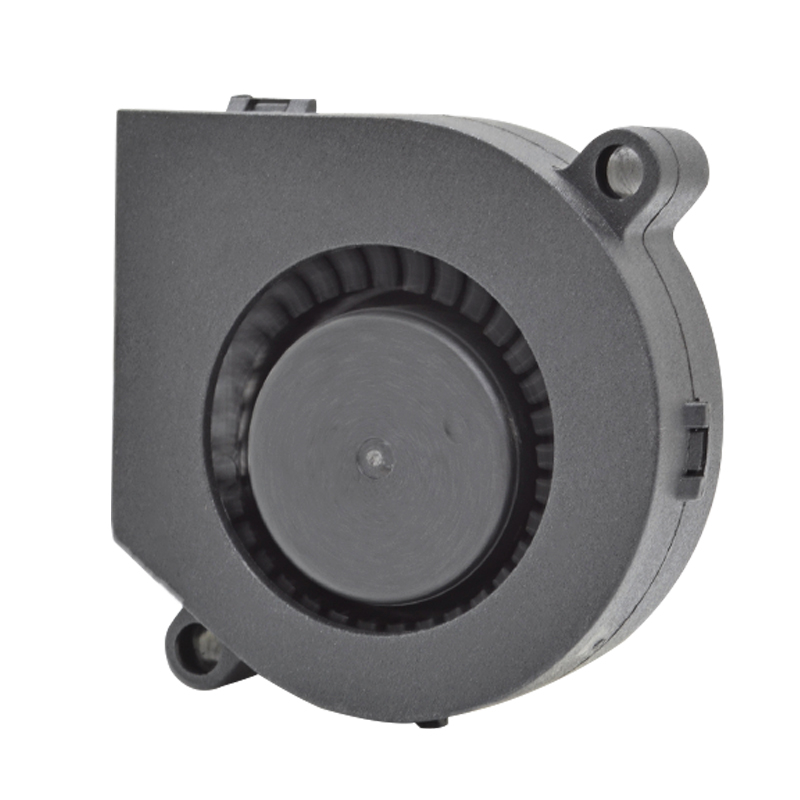

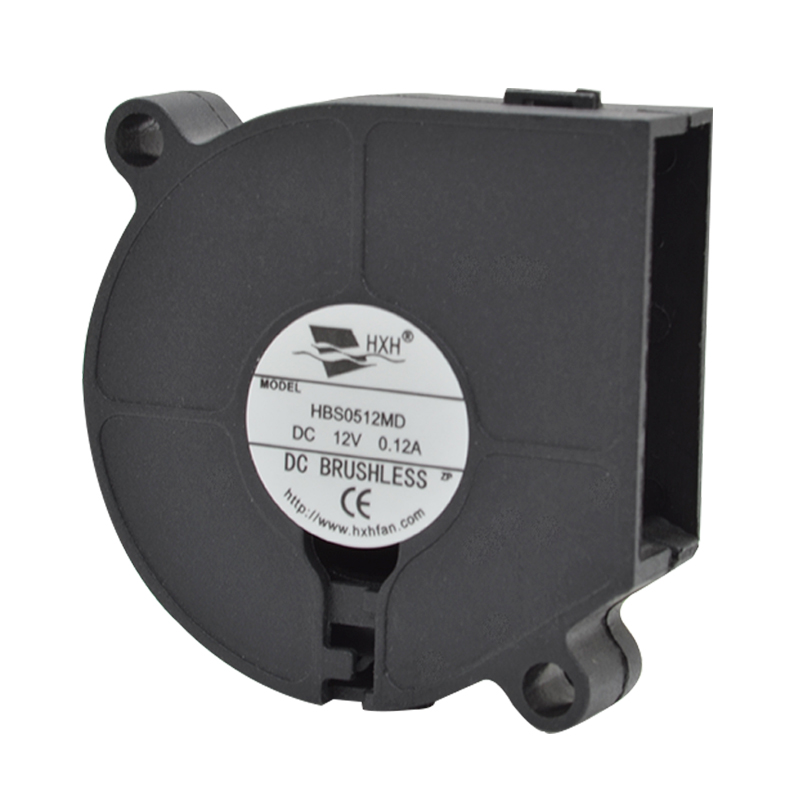

| 51×51×15mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HD-2 | -A | Sleeve | 5 | 4.0 | 0.33 | 1.65 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 |
| HBS0505MD-2 | 4.0 | 0.28 | 1.40 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBS0505LD-2 | 4.0 | 0.14 | 0.70 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| HBB0505HD-2 | -A | Ball | 4.0 | 0.33 | 1.65 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 | |
| HBB0505MD-2 | 4.0 | 0.28 | 1.40 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBB0505LD-2 | 4.0 | 0.14 | 0.70 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| HBS0512HD-2 | Sleeve | 12 | 5.0 | 0.18 | 2.16 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 | |
| HBS0512MD-2 | 5.0 | 0.12 | 1.44 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBS0512LD-2 | 5.0 | 0.08 | 0.96 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| HBB0512HD-2 | Ball | 5.0 | 0.18 | 2.16 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 | ||
| HBB0512MD-2 | 5.0 | 0.12 | 1.44 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBB0512LD-2 | 5.0 | 0.08 | 0.96 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| HBS0524HD-2 | Sleeve | 24 | 12.0 | 0.12 | 2.88 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 | |
| HBS0524MD-2 | 12.0 | 0.08 | 1.92 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBS0524LD-2 | 12.0 | 0.05 | 1.20 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| HBB0524HD-2 | Ball | 12.0 | 0.12 | 2.88 | 5500 | 0.12 | 4.41 | 16.55 | 0.65 | 34.2 | ||
| HBB0524MD-2 | 12.0 | 0.08 | 1.92 | 4500 | 0.11 | 3.85 | 13.56 | 0.53 | 31.4 | |||
| HBB0524LD-2 | 12.0 | 0.05 | 1.20 | 3500 | 0.09 | 3.07 | 8.50 | 0.33 | 27.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
