Product introduction:

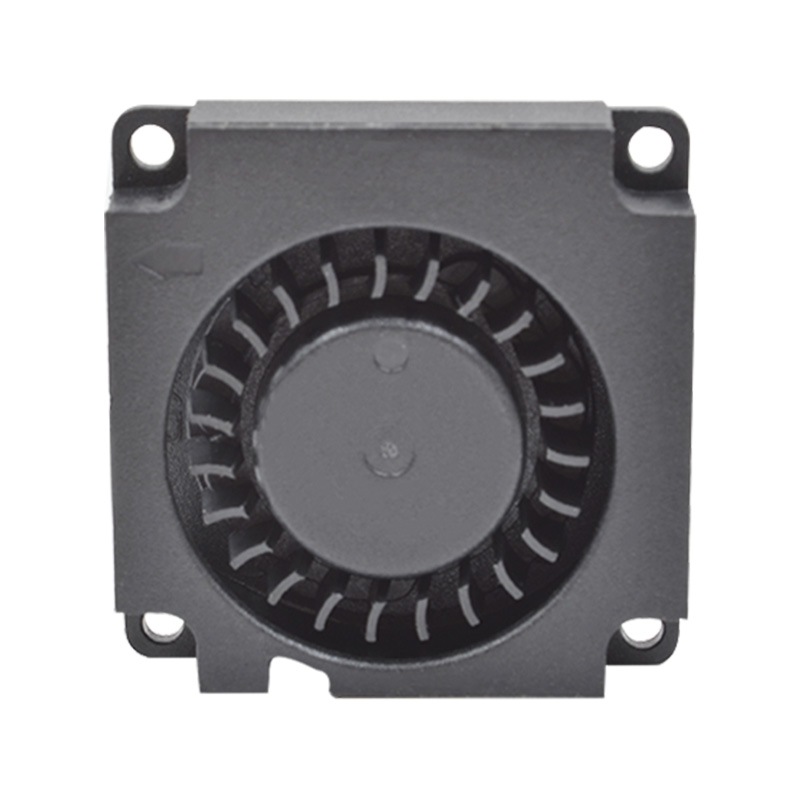

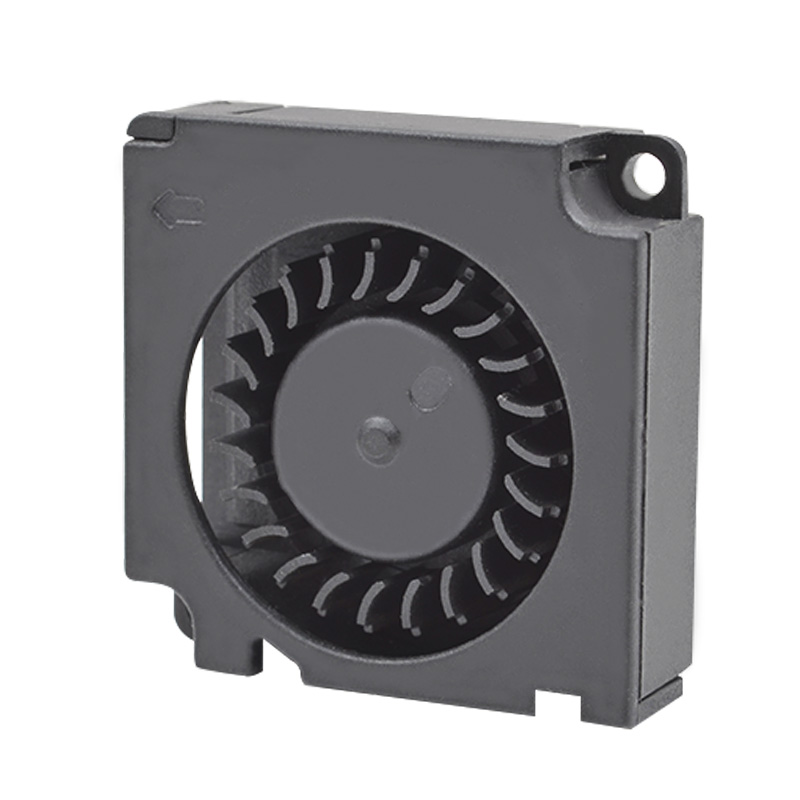

| Size: | 35x35x10mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic bearings, ball bearings |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

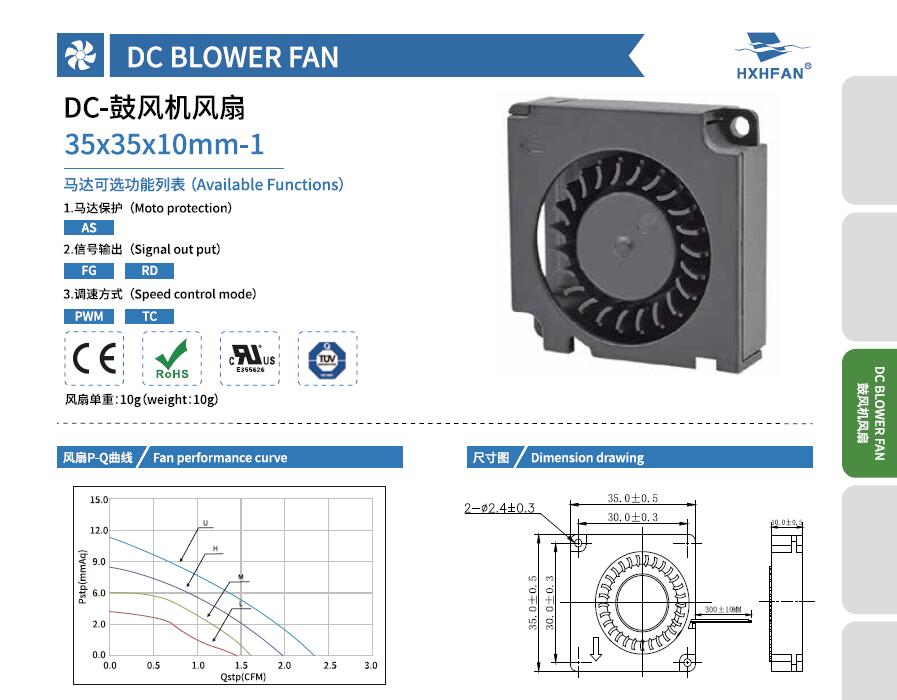

| 35×35×10MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH3505UG-1 | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | |
| HBH3505HG-1 | 4.0 | 0.11 | 0.55 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBH3505MG-1 | 4.0 | 0.08 | 0.40 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBH3505LG-1 | 4.0 | 0.05 | 0.25 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBB3505UG-1 | Ball | 4.0 | 0.15 | 0.75 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | ||
| HBB3505HG-1 | 4.0 | 0.11 | 0.55 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBB3505MG-1 | 4.0 | 0.08 | 0.40 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBB3505LG-1 | 4.0 | 0.05 | 0.25 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBH3512UG-1 | Hydraulic | 12 | 6.0 | 0.08 | 0.96 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | |
| HBH3512HG-1 | 6.0 | 0.07 | 0.84 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBH3512MG-1 | 6.0 | 0.06 | 0.72 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBH3512LG-1 | 6.0 | 0.05 | 0.60 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| HBB3512UG-1 | Ball | 6.0 | 0.08 | 0.96 | 8500 | 0.07 | 2.35 | 11.32 | 0.45 | 30.9 | ||
| HBB3512HG-1 | 6.0 | 0.07 | 0.84 | 7500 | 0.06 | 1.98 | 8.52 | 0.34 | 28.1 | |||
| HBB3512MG-1 | 6.0 | 0.06 | 0.72 | 6500 | 0.05 | 1.62 | 6.02 | 0.24 | 25.7 | |||
| HBB3512LG-1 | 6.0 | 0.05 | 0.60 | 5500 | 0.04 | 1.46 | 4.21 | 0.17 | 23.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
