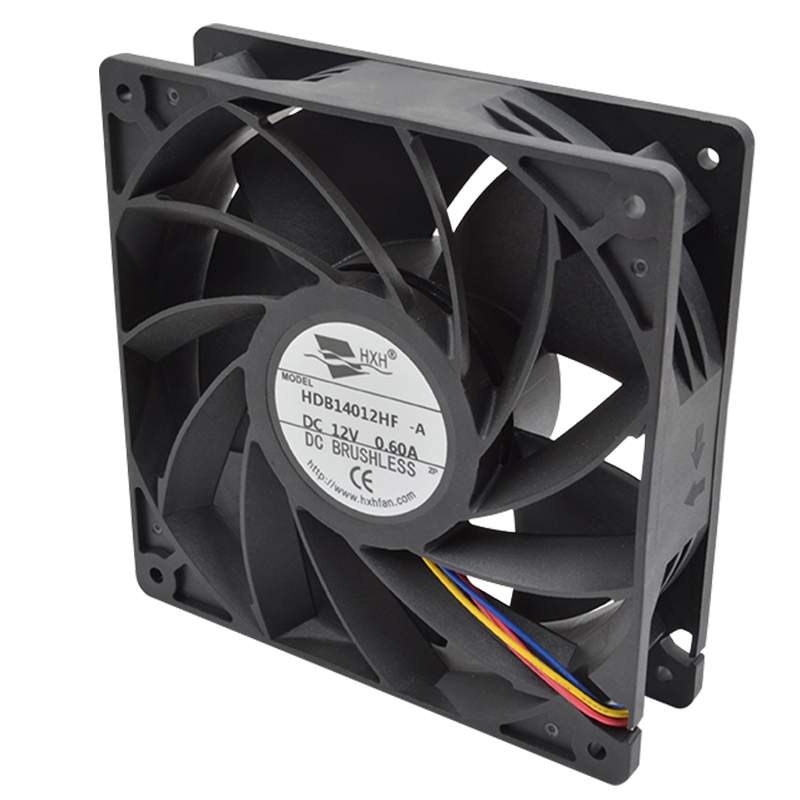

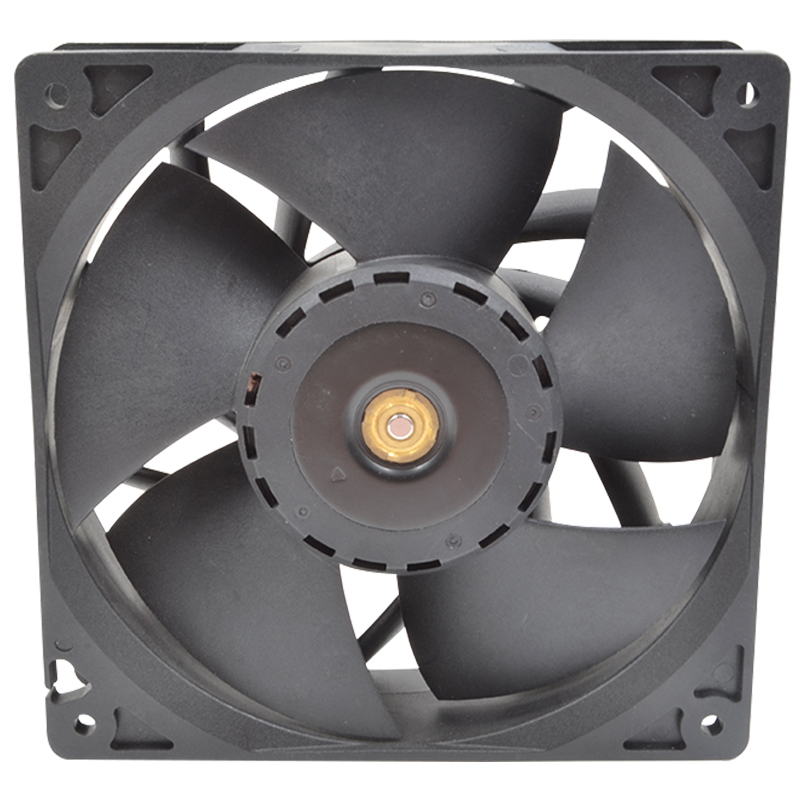

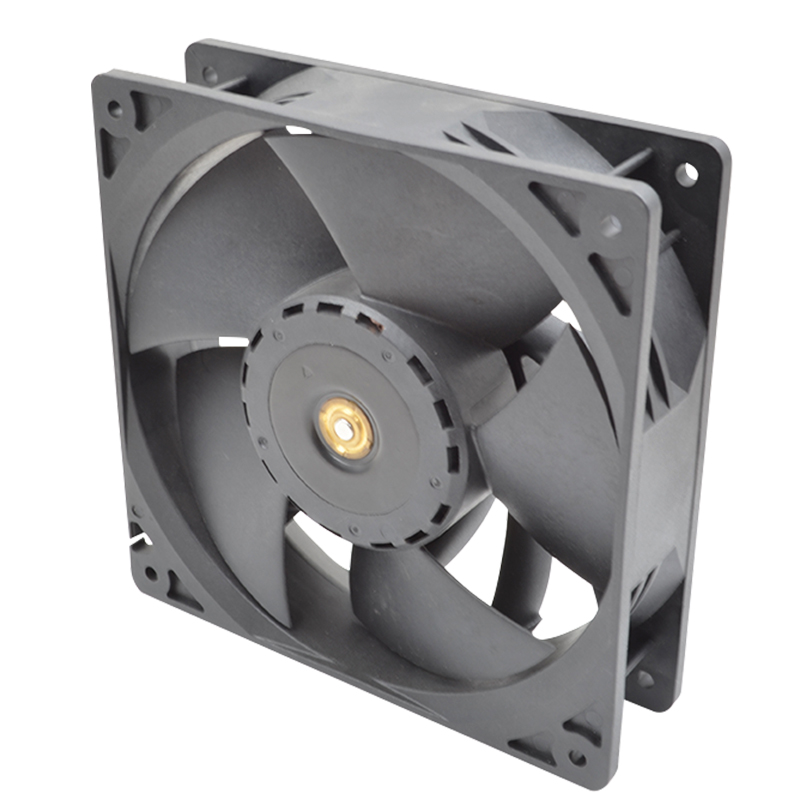

Product introduction:
| Size: | 140x140x38mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Double ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 140×140×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1412UF | -A | Ball | 12 | 5.0 | 6.5 | 78 | 8000 | 10.17 | 359.52 | 52.74 | 2.08 | 75.4 |
| HDB1412HF | -A | 5.0 | 5.0 | 60 | 6500 | 8.27 | 292.11 | 34.82 | 1.37 | 70.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
