Product introduction:
| Size: | 50x50x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

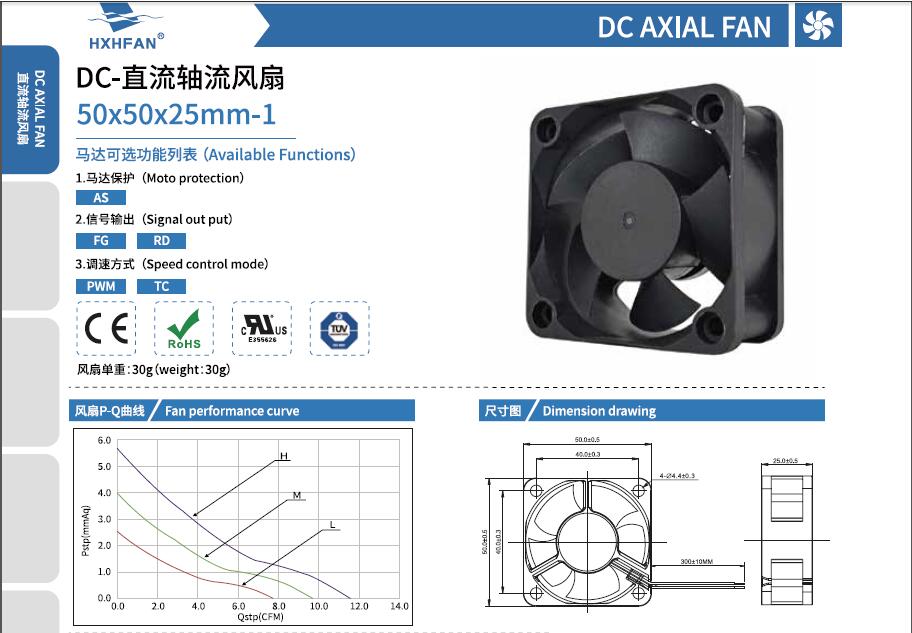

| 50×50×25-1MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0512HA-1 | Sleeve | 12 | 7.0 | 0.22 | 2.64 | 6000 | 0.33 | 11.65 | 5.68 | 0.22 | 32.8 | |
| HDS0512MA-1 | 7.0 | 0.16 | 1.92 | 5000 | 0.27 | 9.71 | 3.94 | 0.16 | 28.8 | |||
| HDS0512LA-1 | 7.0 | 0.12 | 1.44 | 4000 | 0.22 | 7.77 | 2.52 | 0.10 | 24.0 | |||
| HDB0512HA-1 | Ball | 7.0 | 0.22 | 2.64 | 6000 | 0.33 | 11.65 | 5.68 | 0.22 | 32.8 | ||
| HDB0512MA-1 | 7.0 | 0.16 | 1.92 | 5000 | 0.27 | 9.71 | 3.94 | 0.16 | 28.8 | |||
| HDB0512LA-1 | 7.0 | 0.12 | 1.44 | 4000 | 0.22 | 7.77 | 2.52 | 0.10 | 24.0 | |||
| HDS0524HA-1 | Sleeve | 24 | 12.0 | 0.17 | 4.08 | 6000 | 0.33 | 11.65 | 5.68 | 0.22 | 32.8 | |
| HDS0524MA-1 | 12.0 | 0.11 | 2.64 | 5000 | 0.27 | 9.71 | 3.94 | 0.16 | 28.8 | |||
| HDS0524LA-1 | 12.0 | 0.09 | 2.16 | 4000 | 0.22 | 7.77 | 2.52 | 0.10 | 24.0 | |||
| HDB0524HA-1 | Ball | 12.0 | 0.17 | 4.08 | 6000 | 0.33 | 11.65 | 5.68 | 0.22 | 32.8 | ||
| HDB0524MA-1 | 12.0 | 0.11 | 2.64 | 5000 | 0.27 | 9.71 | 3.94 | 0.16 | 28.8 | |||
| HDB0524LA-1 | 12.0 | 0.09 | 2.16 | 4000 | 0.22 | 7.77 | 2.52 | 0.10 | 24.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
