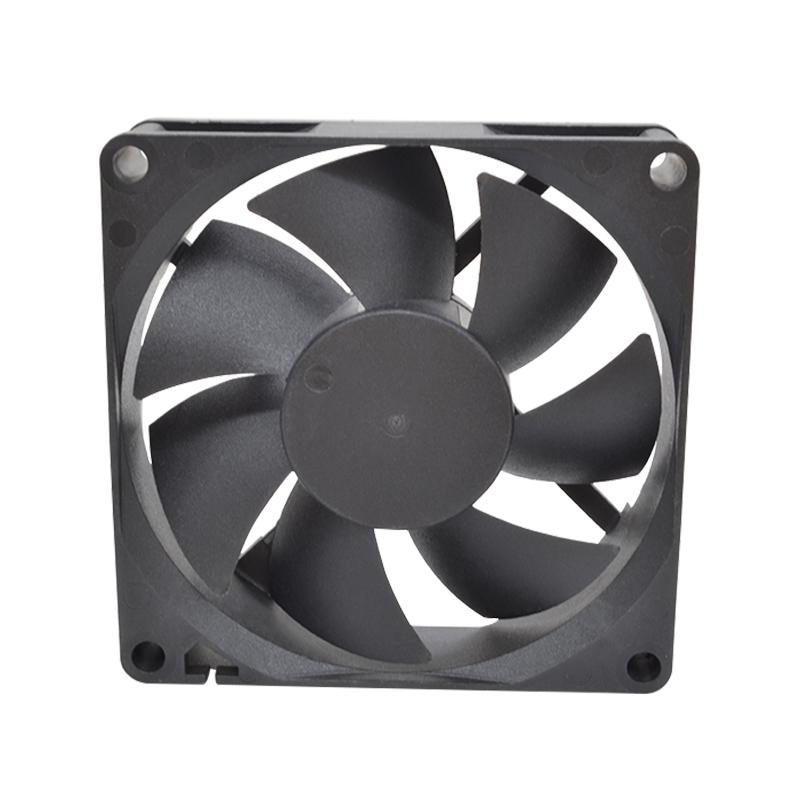

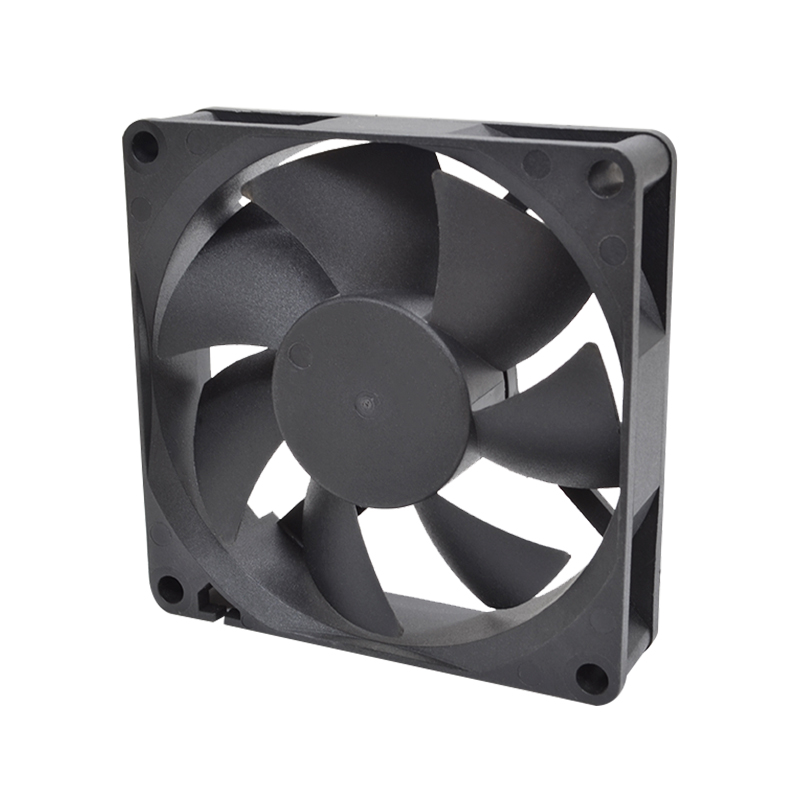

Product introduction:
| Size: | 80x80x20mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×20mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812UC | IP68 | Ball | 12 | 5.0 | 0.30 | 3.6 | 4500 | 1.32 | 46.57 | 7.00 | 0.28 | 43.5 |
| HDB0812HC | IP68 | 5.0 | 0.23 | 2.76 | 3500 | 1.04 | 36.84 | 4.70 | 0.19 | 38.0 | ||
| HDB0812MC | IP68 | 5.0 | 0.17 | 2.04 | 3000 | 0.89 | 31.32 | 3.39 | 0.13 | 34.0 | ||
| HDB0812LC | IP68 | 5.0 | 0.13 | 1.56 | 2500 | 0.73 | 25.84 | 2.39 | 0.09 | 31.5 | ||
| HDB0824UC | IP68 | Ball | 24 | 12.0 | 0.25 | 6.00 | 4500 | 1.32 | 46.57 | 7.00 | 0.28 | 43.5 |
| HDB0824HC | IP68 | 12.0 | 0.15 | 3.60 | 3500 | 1.04 | 36.84 | 4.70 | 0.19 | 38.0 | ||
| HDB0824MC | IP68 | 12.0 | 0.12 | 2.88 | 3000 | 0.89 | 31.32 | 3.39 | 0.13 | 34.0 | ||
| HDB0824LC | IP68 | 12.0 | 0.10 | 2.40 | 2500 | 0.73 | 25.84 | 2.39 | 0.09 | 31.5 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
