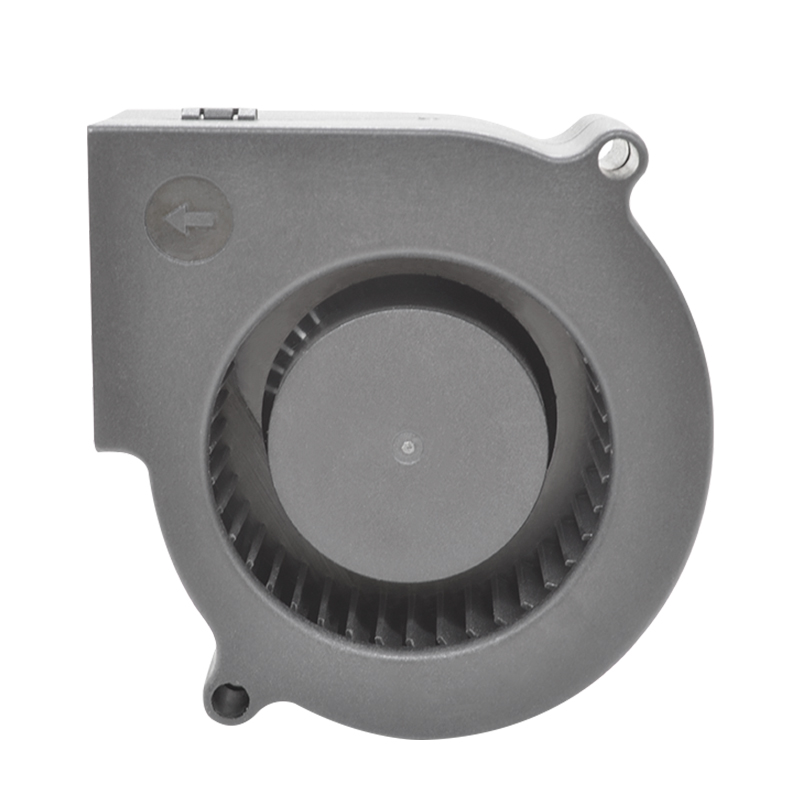

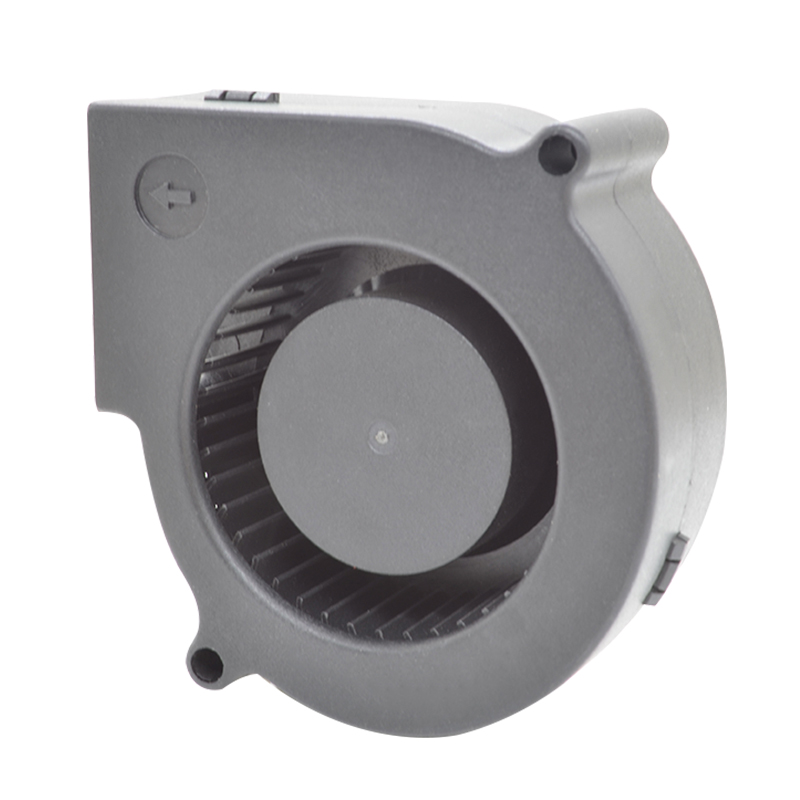

Product introduction:
| Size: | 75x75x30mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 75×75×30mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBB7512VY | IP68 | Ball | 12 | 5.0 | 0.43 | 5.16 | 5000 | 0.39 | 13.68 | 32.53 | 1.28 | 50.0 |
| HBB7512EY | IP68 | 5.0 | 0.36 | 4.32 | 4500 | 0.35 | 12.31 | 26.35 | 1.04 | 47.7 | ||

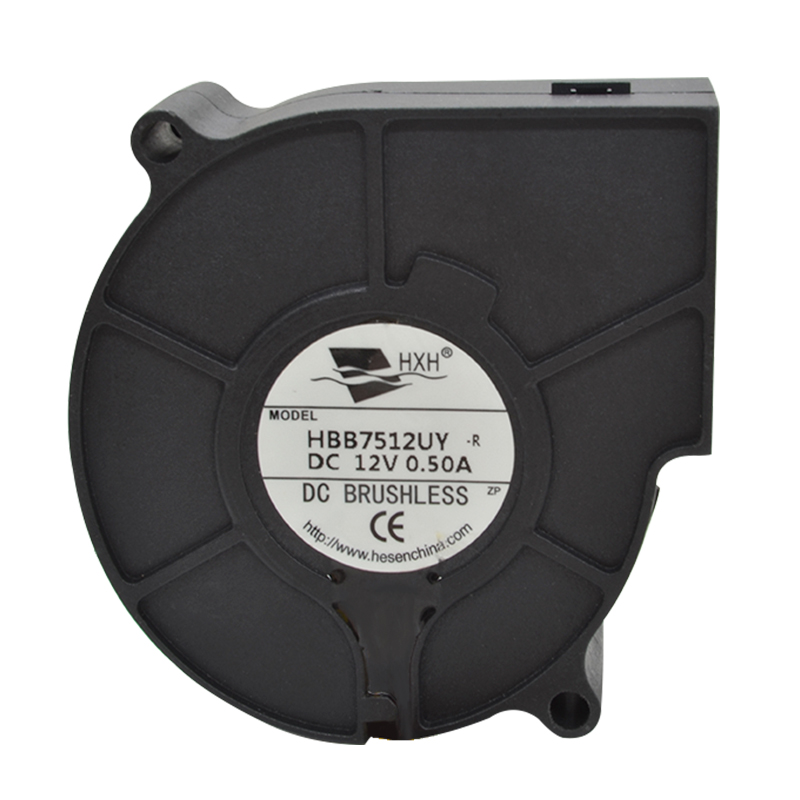

| HBB7512UY | IP68 | 5.0 | 0.24 | 2.88 | 4200 | 0.33 | 11.74 | 24.74 | 0.97 | 45.3 | ||
| HBB7512HY | IP68 | 5.0 | 0.18 | 2.16 | 3500 | 0.29 | 10.08 | 16.66 | 0.66 | 40.6 | ||
| HBB7512MY | IP68 | 5.0 | 0.15 | 1.80 | 3000 | 0.24 | 8.62 | 11.41 | 0.45 | 37.0 | ||
| HBB7512LY | IP68 | 5.0 | 0.12 | 1.44 | 2500 | 0.21 | 7.37 | 7.54 | 0.30 | 33.3 | ||
| HBB7524EY | IP68 | Ball | 24 | 12.0 | 0.38 | 9.12 | 4500 | 0.35 | 12.31 | 26.35 | 1.04 | 47.7 |
| HBB7524UY | IP68 | 12.0 | 0.27 | 6.48 | 4200 | 0.33 | 11.74 | 24.74 | 0.97 | 45.3 | ||
| HBB7524HY | IP68 | 12.0 | 0.20 | 4.80 | 3500 | 0.29 | 10.08 | 16.66 | 0.66 | 40.6 | ||
| HBB7524MY | IP68 | 12.0 | 0.12 | 2.88 | 3000 | 0.24 | 8.62 | 11.41 | 0.45 | 37.0 | ||
| HBB7524LY | IP68 | 12.0 | 0.10 | 2.40 | 2500 | 0.21 | 7.37 | 7.54 | 0.30 | 33.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
