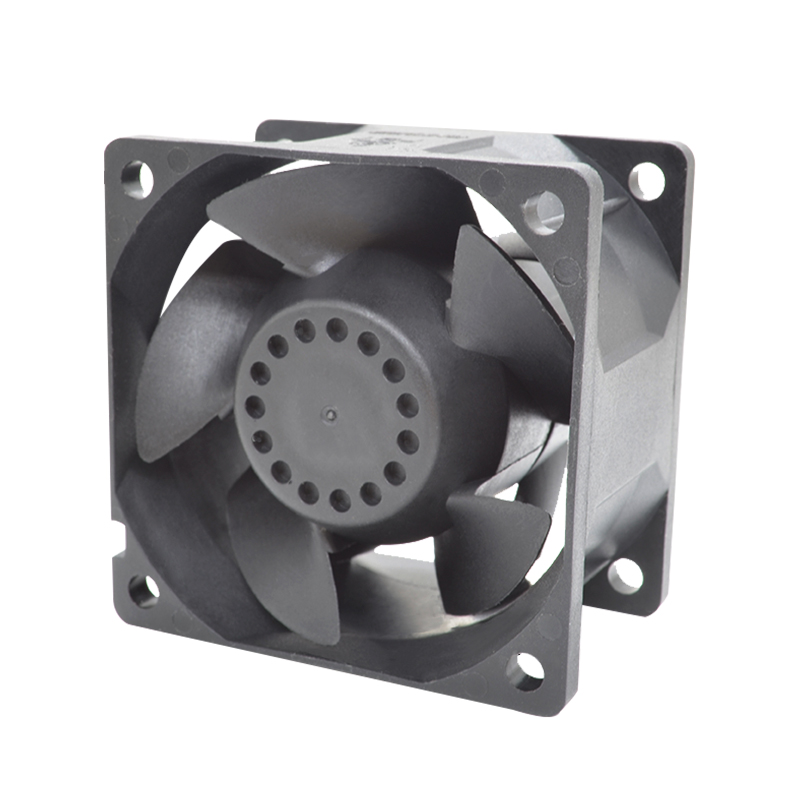

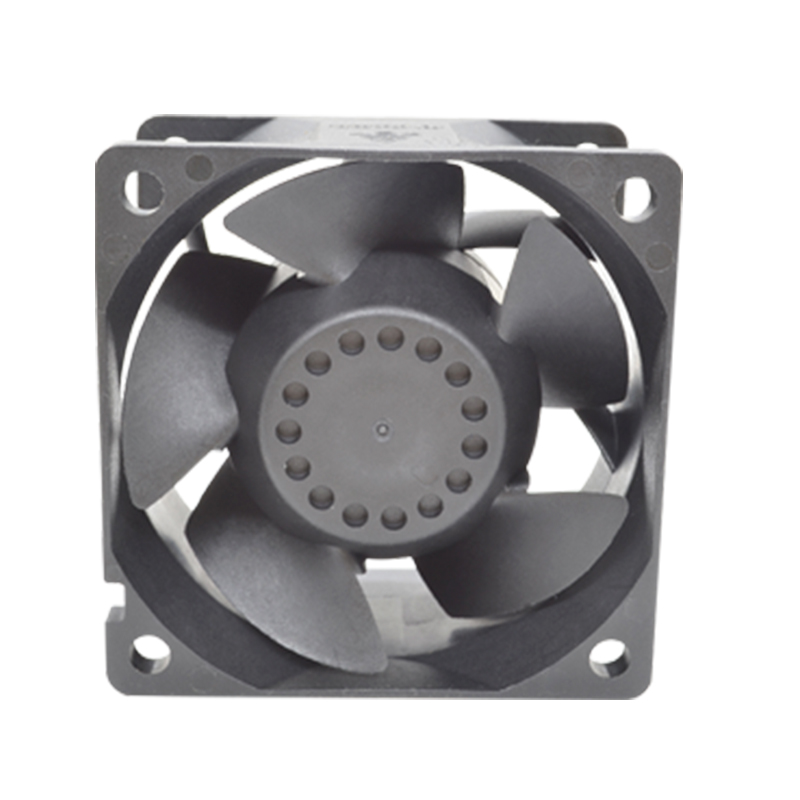

Product introduction:
| Size: | 60x60x38mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 60×60×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612VF | IP68 | Ball | 12 | 6.0 | 1.50 | 18.00 | 15000 | 1.81 | 64.00 | 67.47 | 2.66 | 63.0 |
| HDB0612EF | IP67 | 6.0 | 1.20 | 14.40 | 13000 | 1.56 | 55.02 | 51.23 | 2.02 | 57.4 | ||
| HDB0612UF | IP67 | 6.0 | 0.85 | 10.20 | 11000 | 1.31 | 46.70 | 44.70 | 1.41 | 53.0 | ||
| HDB0612HF | IP67 | 6.0 | 0.60 | 7.20 | 9000 | 1.06 | 25.49 | 25.49 | 1.00 | 46.6 | ||
| HDB0612MF | IP67 | 9.0 | 0.35 | 4.20 | 7500 | 0.90 | 16.04 | 16.04 | 0.63 | 42.8 | ||

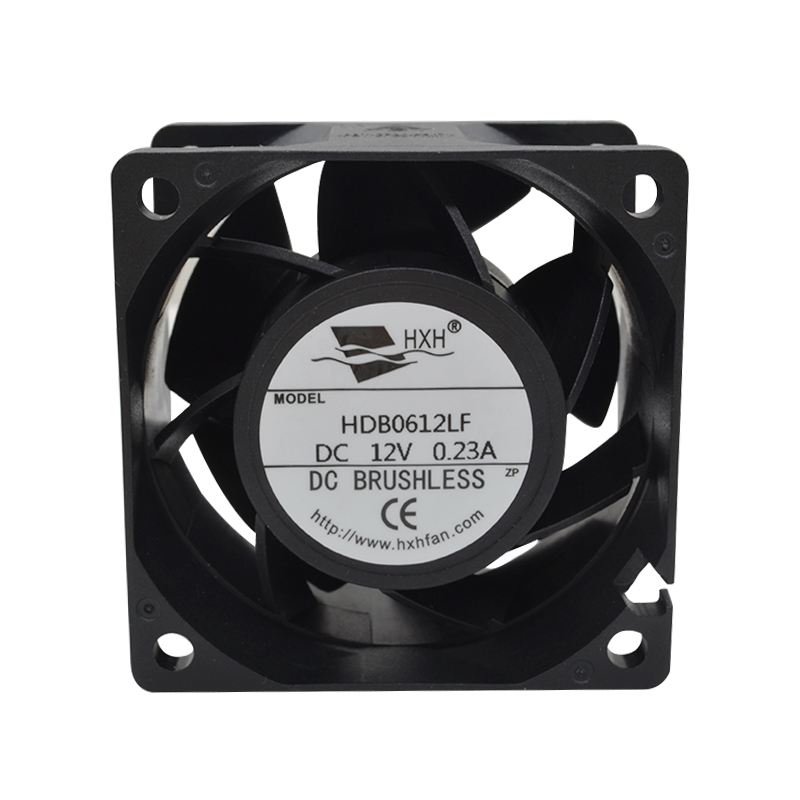

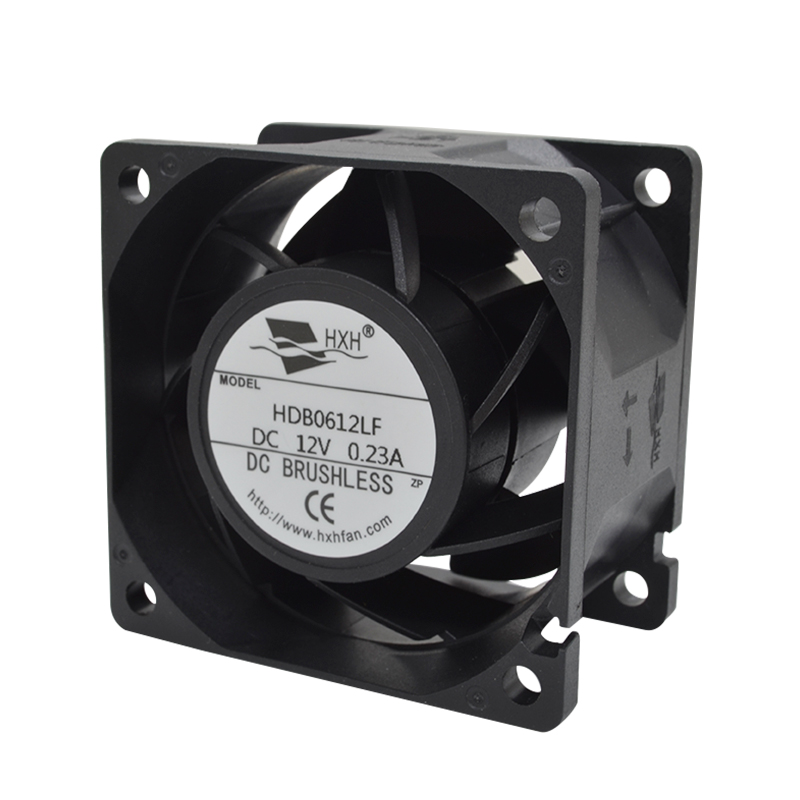

| HDB0612LF | IP67 | 9.0 | 0.30 | 3.60 | 6500 | 0.77 | 11.85 | 11.85 | 0.47 | 40.2 | ||
| HDB0624VF | IP67 | Ball | 24 | 12.0 | 0.85 | 10.20 | 15000 | 1.81 | 67.47 | 67.47 | 2.66 | 63.0 |
| HDB0624E | IP67 | 12.0 | 0.60 | 7.20 | 13000 | 1.56 | 51.23 | 51.23 | 2.02 | 57.4 | ||
| HDB0624UF | IP67 | 12.0 | 0.50 | 6.00 | 11000 | 1.31 | 44.70 | 44.70 | 1.76 | 53.0 | ||
| HDB0624HF | IP67 | 12.0 | 0.35 | 4.20 | 9000 | 1.06 | 25.49 | 25.49 | 1.00 | 46.6 | ||
| HDB0624MF | IP67 | 18.0 | 0.25 | 3.00 | 7500 | 0.90 | 16.04 | 16.04 | 0.63 | 42.8 | ||
| HDB0624LF | IP67 | 18.0 | 0.20 | 2.40 | 6500 | 0.77 | 11.85 | 11.85 | 0.47 | 40.2 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
