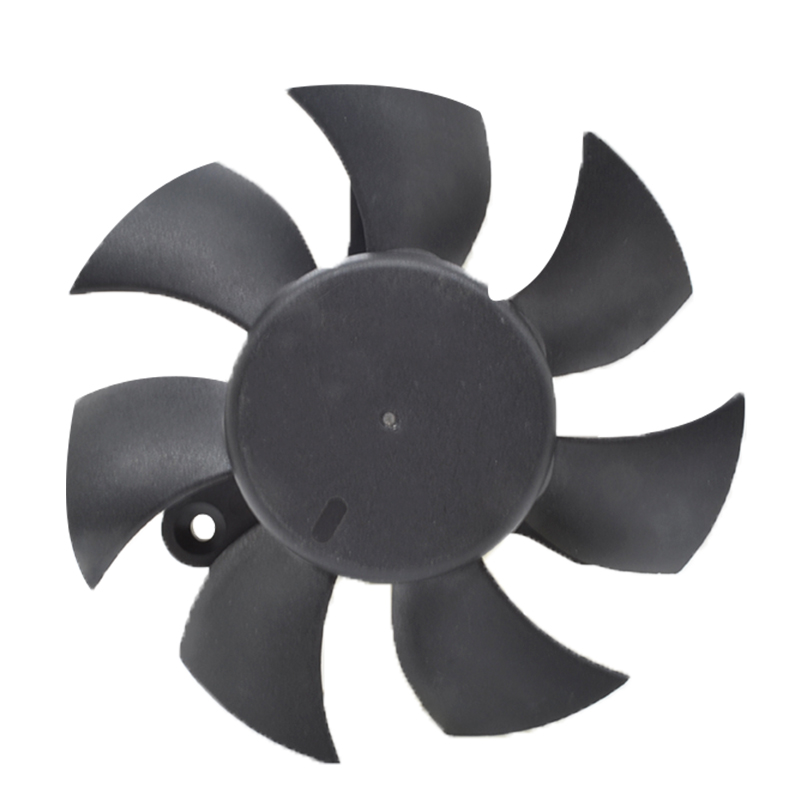

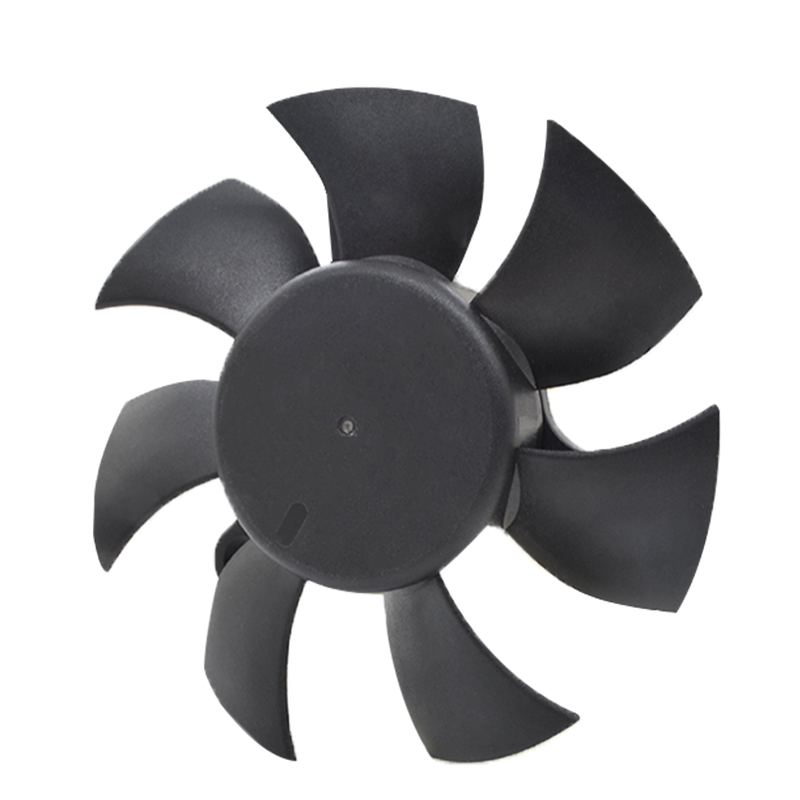

Product introduction:
| Size: | 120x120x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |

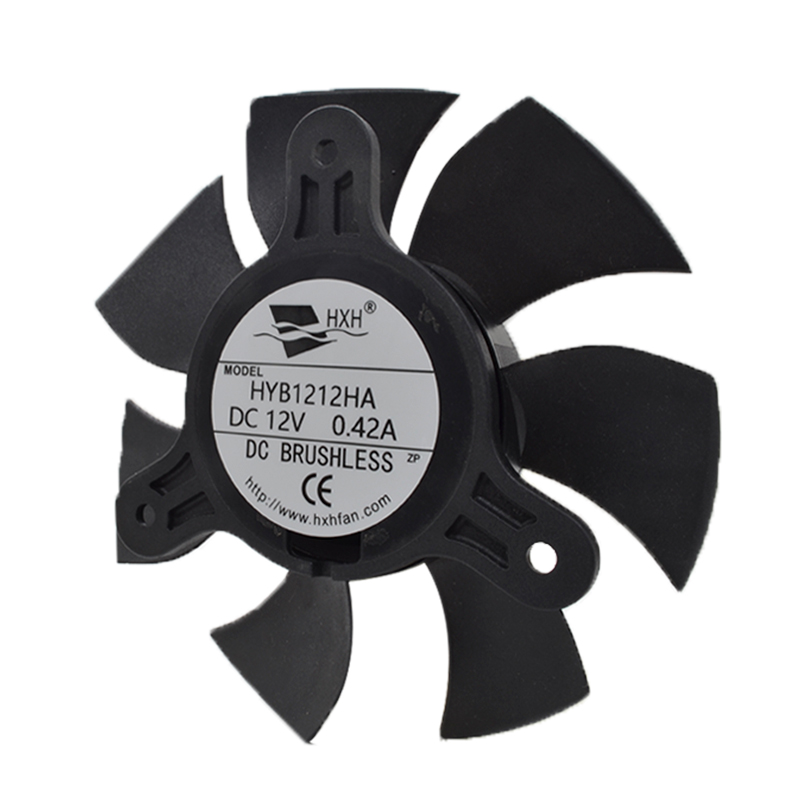

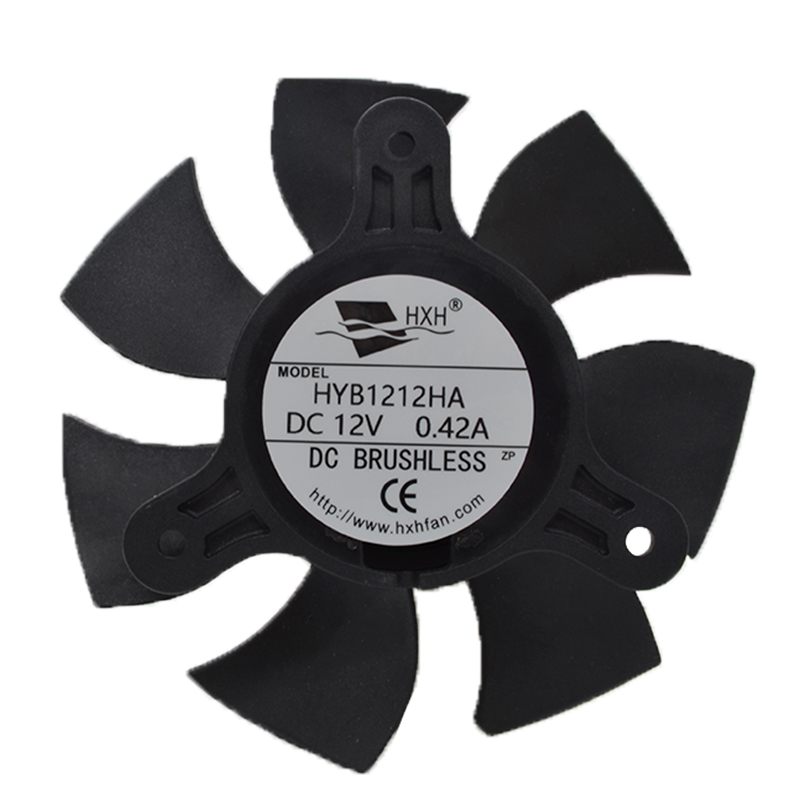

| HYB1212HA-1 | Ball | 12 | 6.0 | 0.32 | 3.84 | 2800 | 2.57 | 90.70 | 6.20 | 0.24 | 43.0 | |
| HYB1212MA-1 | 6.0 | 0.24 | 2.88 | 2400 | 2.24 | 79.20 | 4.72 | 0.19 | 39.1 | |||
| HYB1212LA-1 | 6.0 | 0.18 | 2.16 | 2000 | 1.85 | 65.38 | 3.29 | 0.13 | 35.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
