Product introduction:

Size: 50x50x10mm
Material: Environmental protection and fire protection PBT UL 94V-0
Operating voltage: 5V 12V 24V
Bearing structure: Oil Bearing  Ball Bearing
Product life: 30,000 hours  70,000 hours
Output function: FG function  RD function PWM function
Operating temperature: -10℃ ~70℃
Storage temperature: -40℃ ~75℃
Click for Inqueries
Click to Download pdf

50x50x10mm
Frame Size(mm) Part NO. Function System VDC VDC A W RPM M3/min CFM mmH2O INH2O dBA

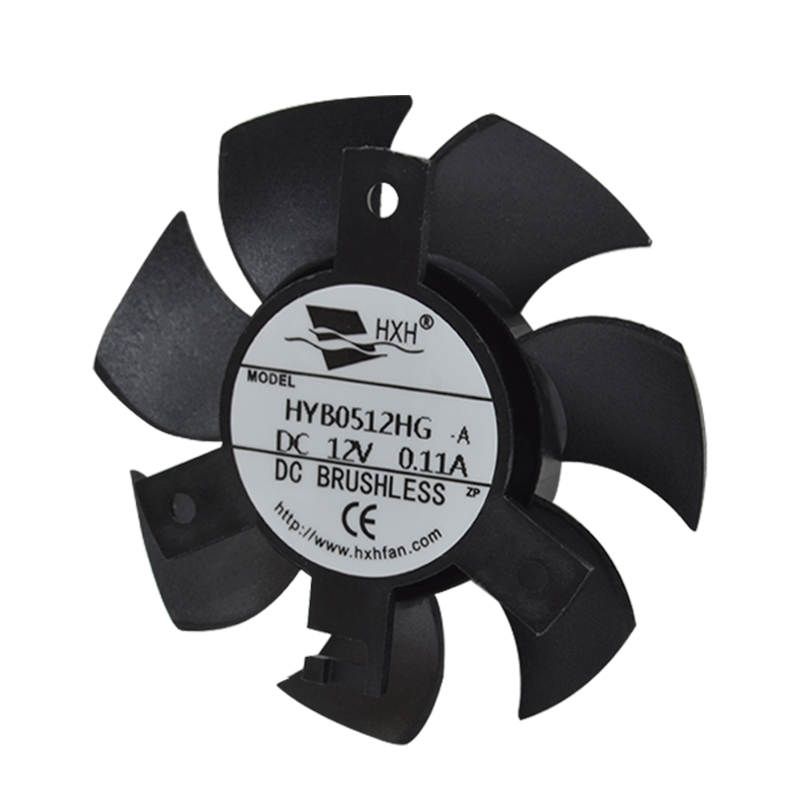

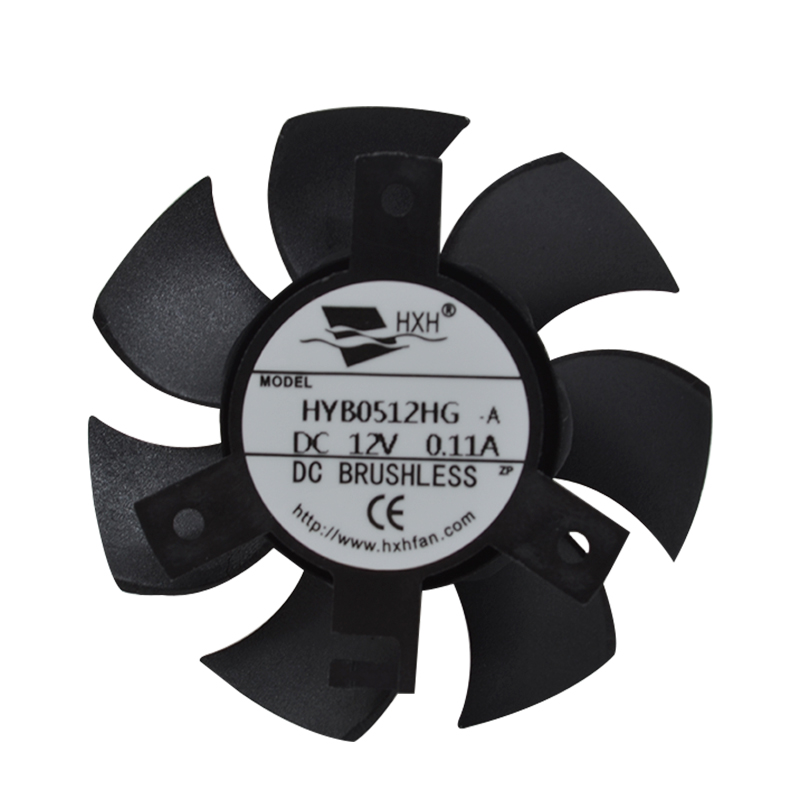

50x50x10mm HYB0512HG   Sleeve /Ball 12 9.0  0.15  1.80  6000 0.25  8.74 3.79 0.15  33.0
HYB0512MG   9.0  0.10  1.20  5500 0.23  8.17 3.31 0.13  30.9
HYB0512LG   9.0  0.08  0.96  4500 0.18  6.35 2.14 0.08  25.8
