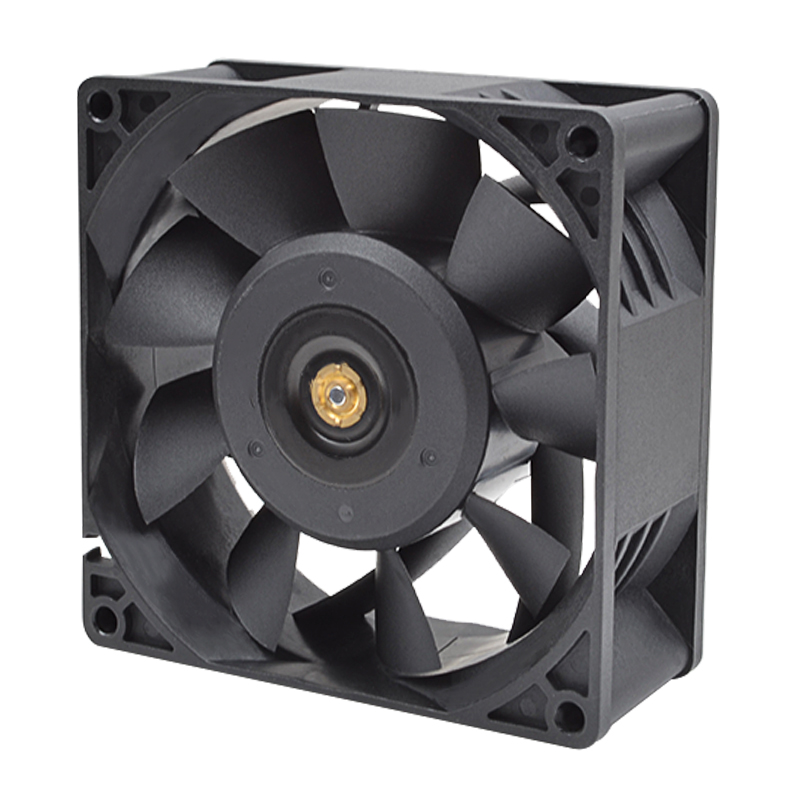

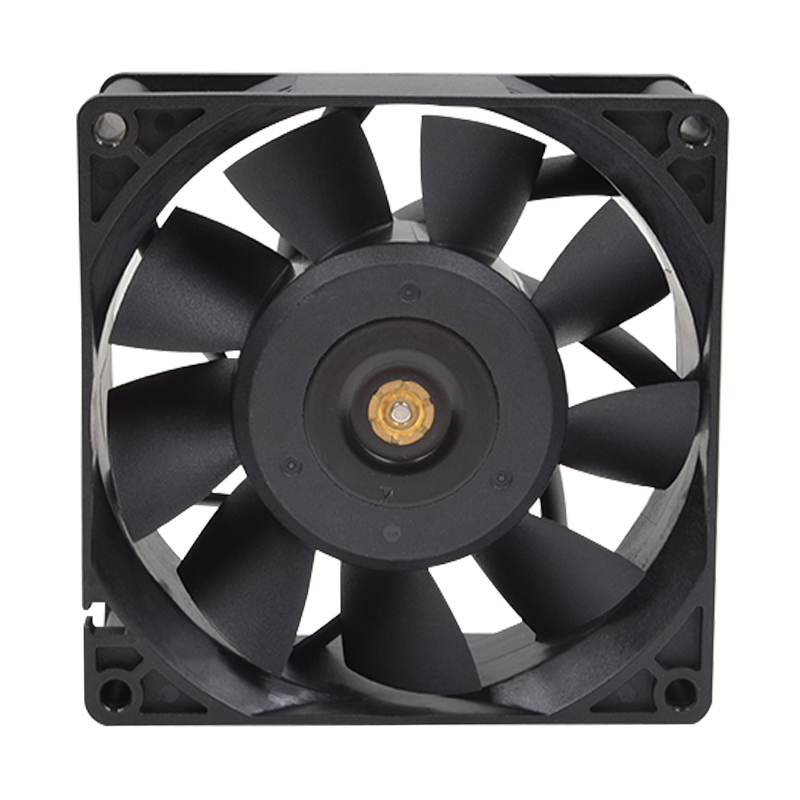

| Size: | 92x92x38mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 92×92×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Operation Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB09110HF | -A | Ball | 110 | 80～130 | 50/60 | 5.50 | 4400 | 2.63 | 92.79 | 13.00 | 0.51 | 49.2 |
| HEB09110MF | -A | 80～130 | 50/60 | 4.70 | 3800 | 2.23 | 78.83 | 9.22 | 0.36 | 45.4 | ||
| HEB09110LF | -A | 80～130 | 50/60 | 3.90 | 3200 | 1.89 | 66.76 | 6.91 | 0.27 | 40.8 | ||
| HEB09220HF | -A | Ball | 220 | 100～240 | 50/60 | 4.80 | 4400 | 2.63 | 92.79 | 13.00 | 0.51 | 49.2 |
| HEB09220MF | -A | 100～240 | 50/60 | 4.20 | 3800 | 2.23 | 78.83 | 9.22 | 0.36 | 45.4 | ||
| HEB09220LF | -A | 100～240 | 50/60 | 3.60 | 3200 | 1.89 | 66.76 | 6.91 | 0.27 | 40.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
