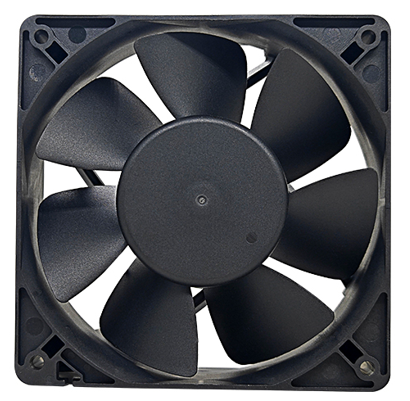

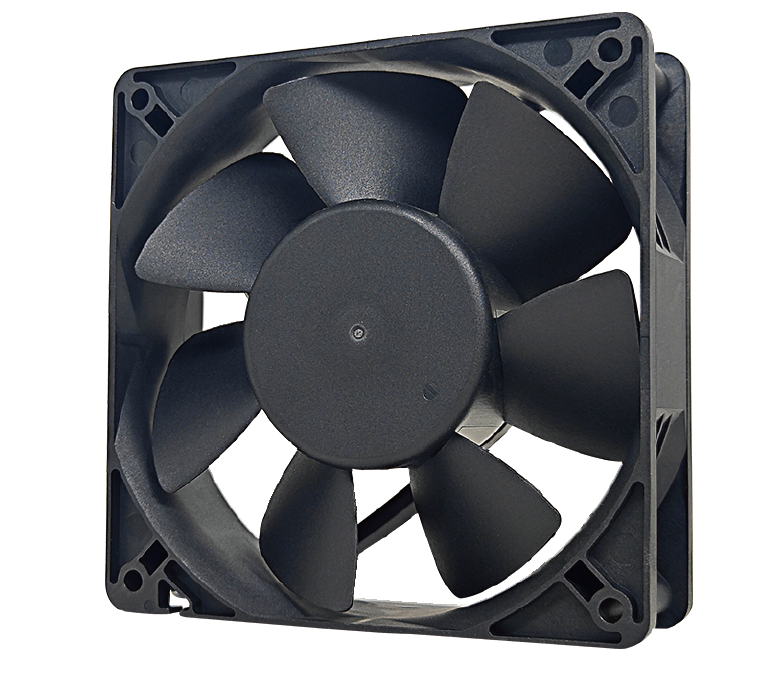

| Size: | 120x120x38mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

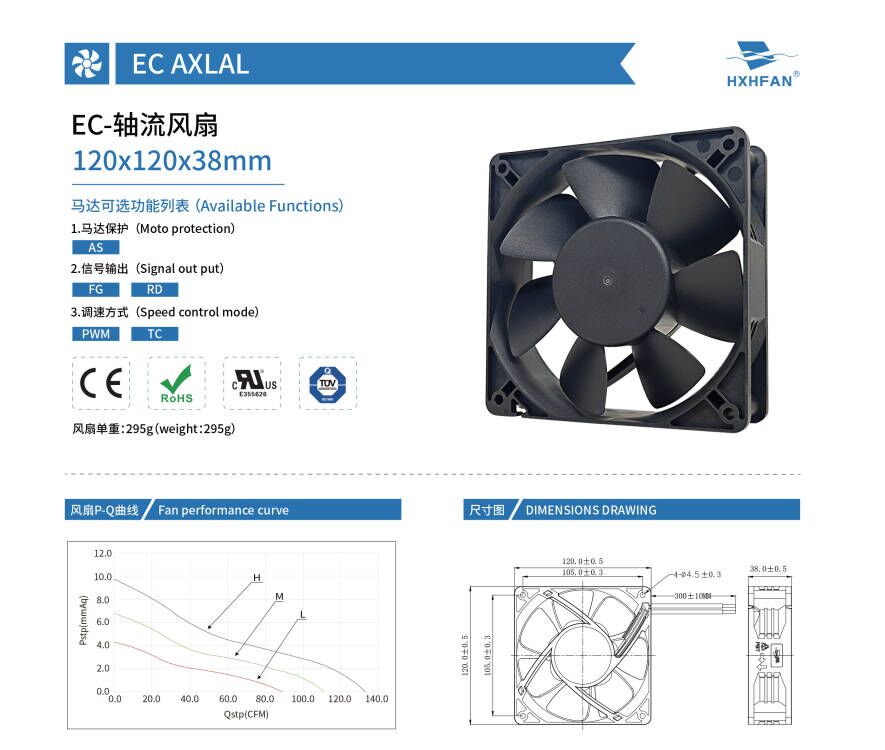

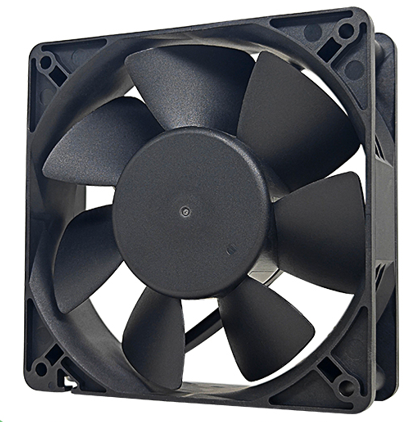

| 120×120×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Operation Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB12110HF | -A | Ball | 110 | 80～130 | 50/60 | 15.00 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HEB12110MF | -A | 80～130 | 50/60 | 7.90 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HEB12110LF | -A | 80～130 | 50/60 | 1.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||

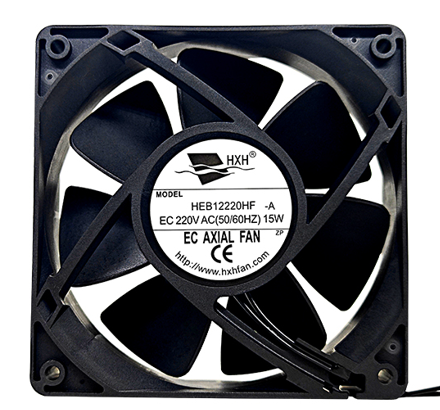

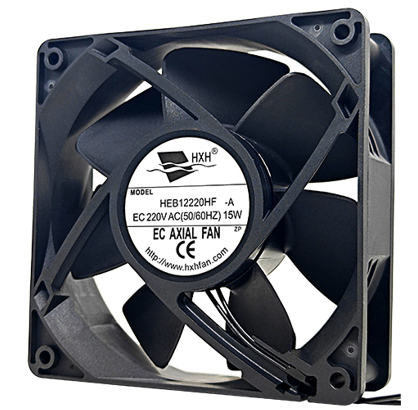

| HEB12220HF | -A | Ball | 220 | 100～240 | 50/60 | 15.00 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HEB12220MF | -A | 100～240 | 50/60 | 7.90 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HEB12220LF | -A | 100～240 | 50/60 | 1.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
