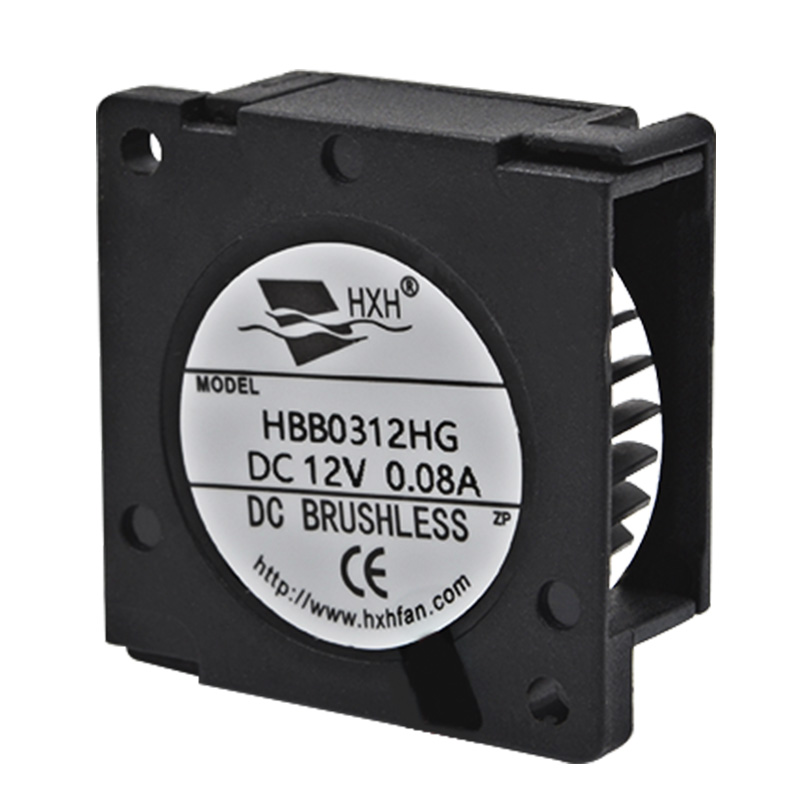

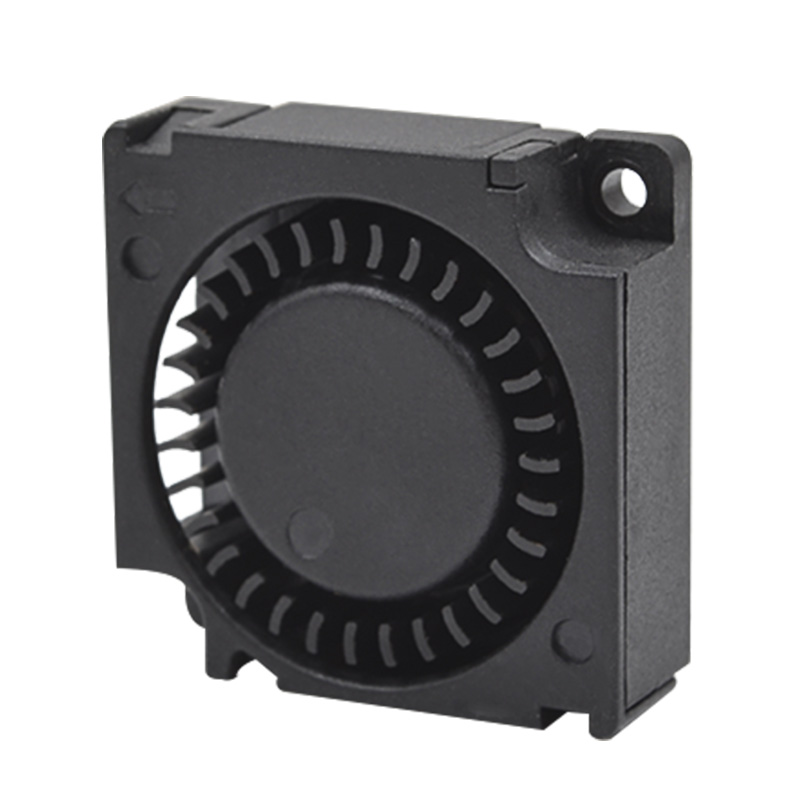

Product introduction:
| Size: | 30x30x10mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic bearings, ball bearings |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

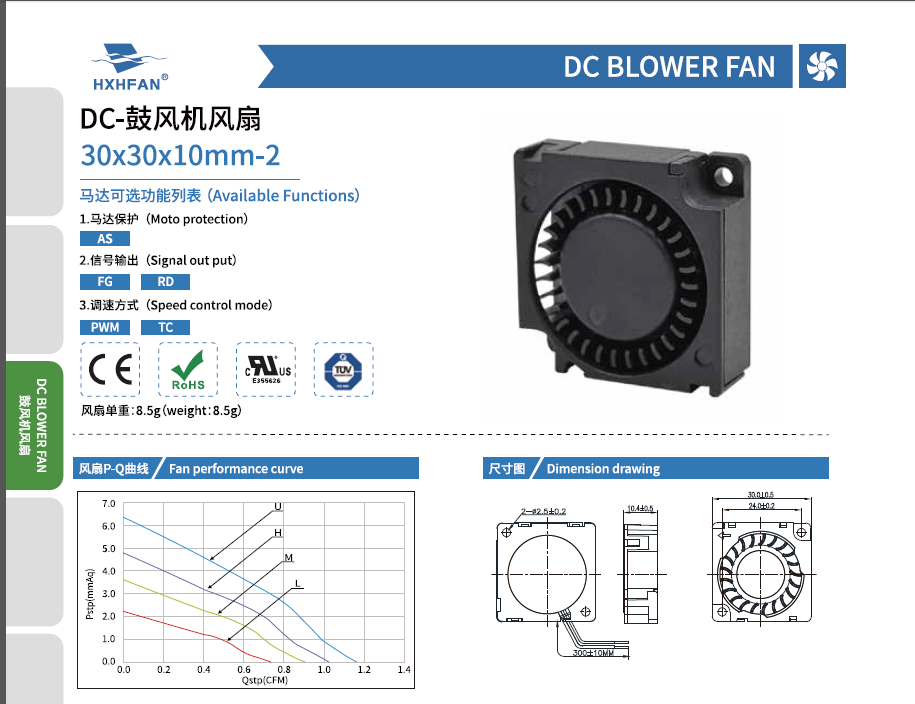

| 30×30×10MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0305UG-2 | Hydraulic | 5 | 4.0 | 0.17 | 0.85 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | |
| HBH0305HG-2 | 4.0 | 0.11 | 0.55 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBH0305MG-2 | 4.0 | 0.08 | 0.40 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBH0305LG-2 | 4.0 | 0.06 | 0.30 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| HBB0305UG-2 | Ball | 4.0 | 0.17 | 0.85 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | ||
| HBB0305HG-2 | 4.0 | 0.11 | 0.55 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBB0305MG-2 | 4.0 | 0.08 | 0.40 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBB0305LG-2 | 4.0 | 0.06 | 0.30 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| HBH0312UG-2 | Hydraulic | 12 | 6.0 | 0.08 | 0.96 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | |
| HBH0312HG-2 | 6.0 | 0.07 | 0.84 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBH0312MG-2 | 6.0 | 0.05 | 0.60 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBH0312LG-2 | 6.0 | 0.04 | 0.48 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| HBB0312UG-2 | Ball | 6.0 | 0.08 | 0.96 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | ||
| HBB0312HG-2 | 6.0 | 0.07 | 0.84 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBB0312MG-2 | 6.0 | 0.05 | 0.60 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBB0312LG-2 | 6.0 | 0.04 | 0.48 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| HBH0324UG-2 | Hydraulic | 24 | 6.0 | 0.10 | 2.40 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | |
| HBH0324HG-2 | 6.0 | 0.08 | 1.92 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBH0324MG-2 | 6.0 | 0.06 | 1.44 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBH0324LG-2 | 6.0 | 0.05 | 1.20 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| HBB0324UG-2 | Ball | 6.0 | 0.10 | 2.40 | 8500 | 0.03 | 1.16 | 6.31 | 0.25 | 30.1 | ||
| HBB0324HG-2 | 6.0 | 0.08 | 1.92 | 7500 | 0.03 | 1.03 | 4.76 | 0.19 | 25.1 | |||
| HBB0324MG-2 | 6.0 | 0.06 | 1.44 | 6500 | 0.03 | 0.91 | 3.61 | 0.14 | 21.8 | |||
| HBB0324LG-2 | 6.0 | 0.05 | 1.20 | 5500 | 0.02 | 0.73 | 2.21 | 0.09 | 19.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
