Product introduction:
| Size: | 40x40x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic bearings, ball bearings |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

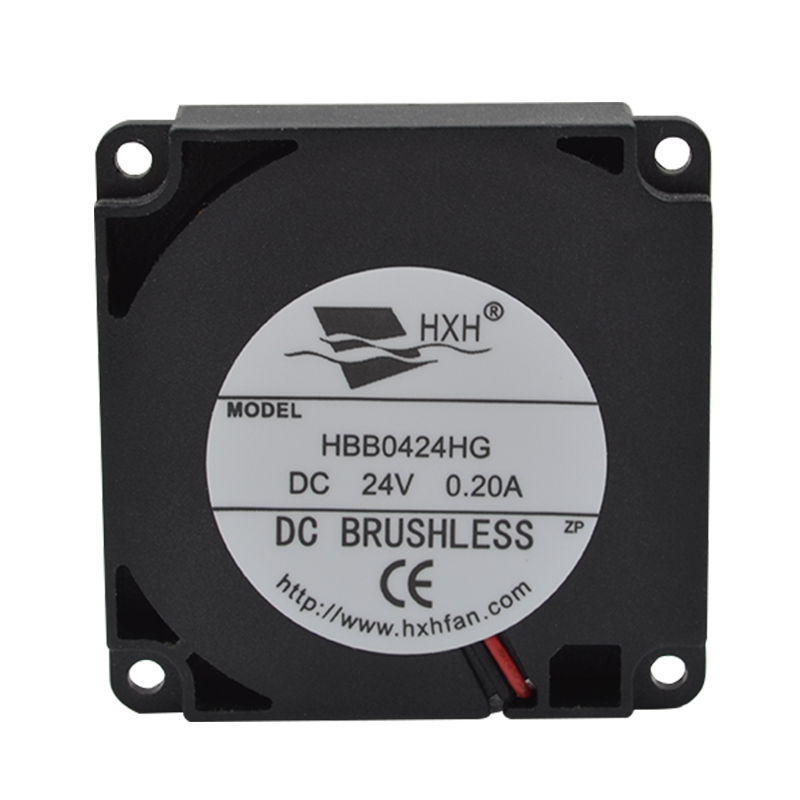

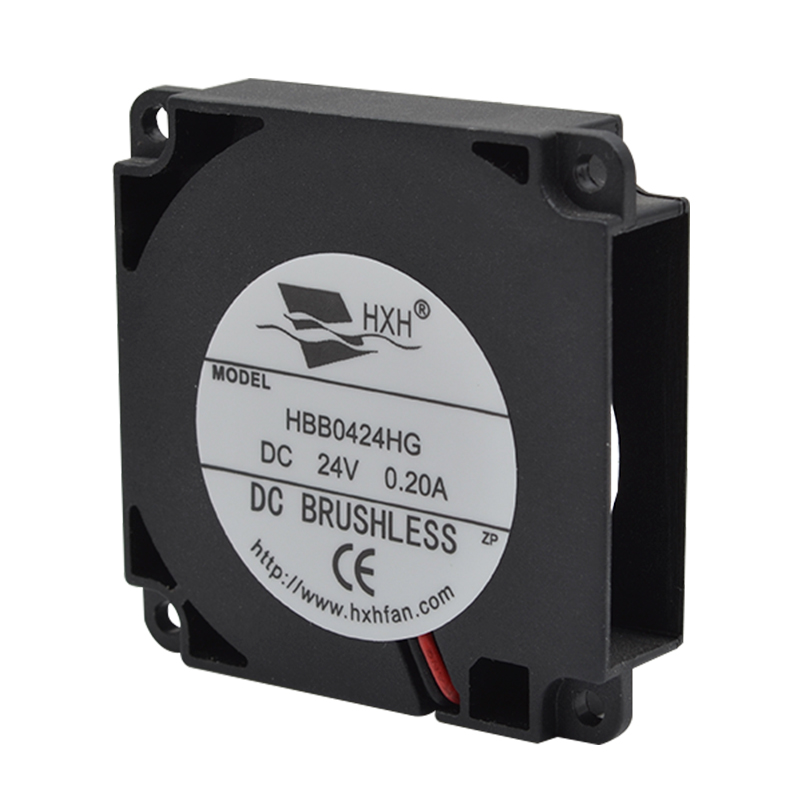

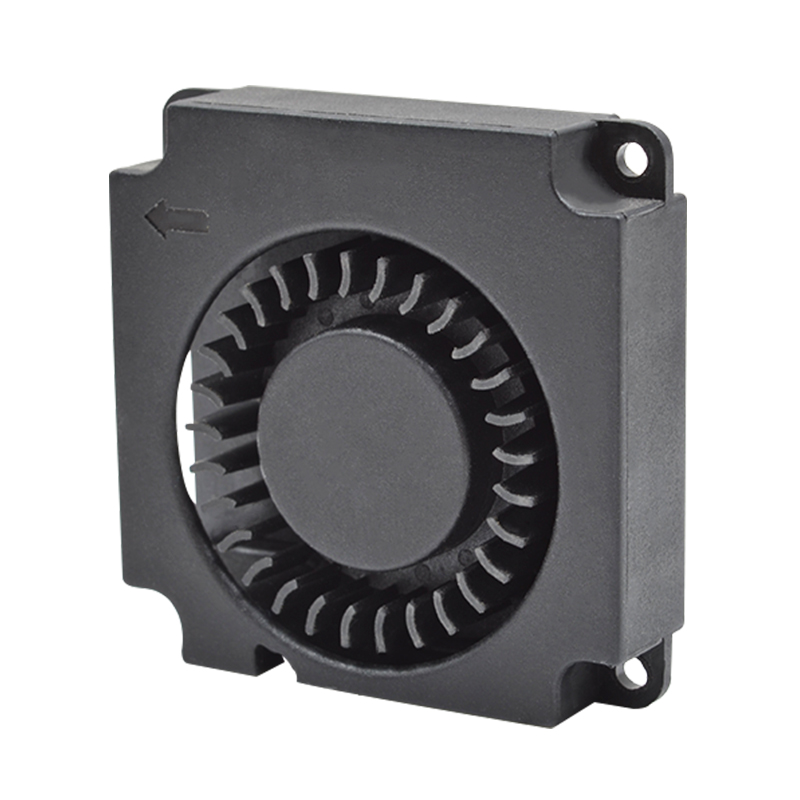

| 40×40×10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0405UG | Sleeve | 5 | 4.0 | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0405HG | 4.0 | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0405MG | 4.0 | 0.11 | 0.55 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0405LG | 4.0 | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0405UG | Ball | 4.0 | 0.22 | 1.10 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | ||
| HBB0405HG | 4.0 | 0.17 | 0.85 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBB0405MG | 4.0 | 0.11 | 0.55 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBB0405LG | 4.0 | 0.07 | 0.35 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBS0412UG | Sleeve | 12 | 9.0 | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | |
| HBS0412HG | 9.0 | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBS0412MG | 9.0 | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBS0412LG | 9.0 | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| HBB0412UG | Ball | 9.0 | 0.10 | 1.20 | 8500 | 0.07 | 2.36 | 7.71 | 0.30 | 28.2 | ||
| HBB0412HG | 9.0 | 0.08 | 0.96 | 7500 | 0.06 | 2.04 | 6.07 | 0.24 | 26.6 | |||
| HBB0412MG | 9.0 | 0.06 | 0.72 | 6500 | 0.05 | 1.72 | 4.57 | 0.18 | 23.7 | |||
| HBB0412LG | 9.0 | 0.05 | 0.60 | 5500 | 0.04 | 1.56 | 3.36 | 0.13 | 20.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
