Product introduction:
| Size: | 60x60x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Ball Bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

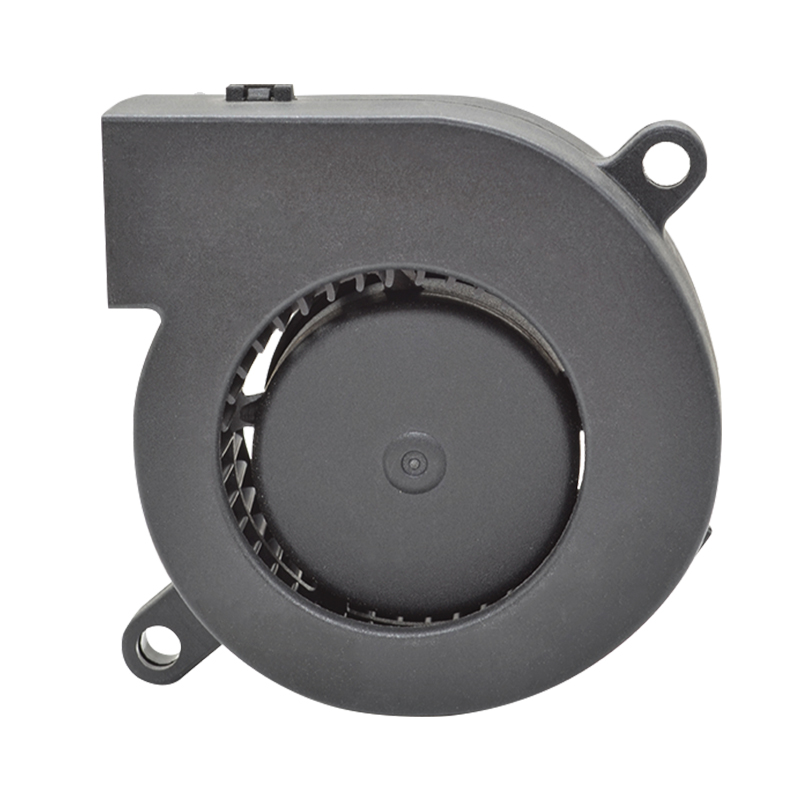

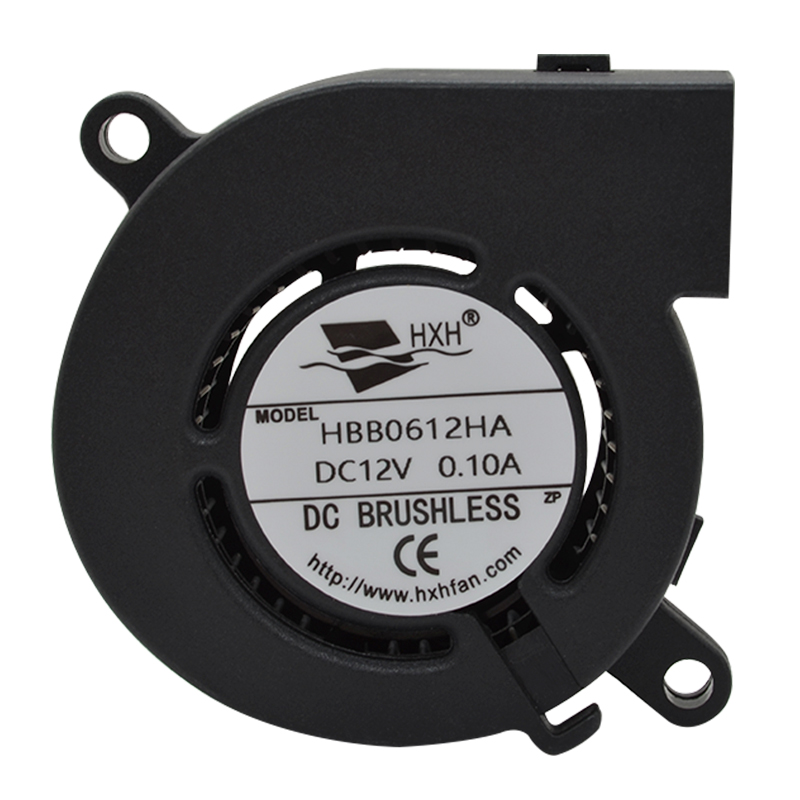

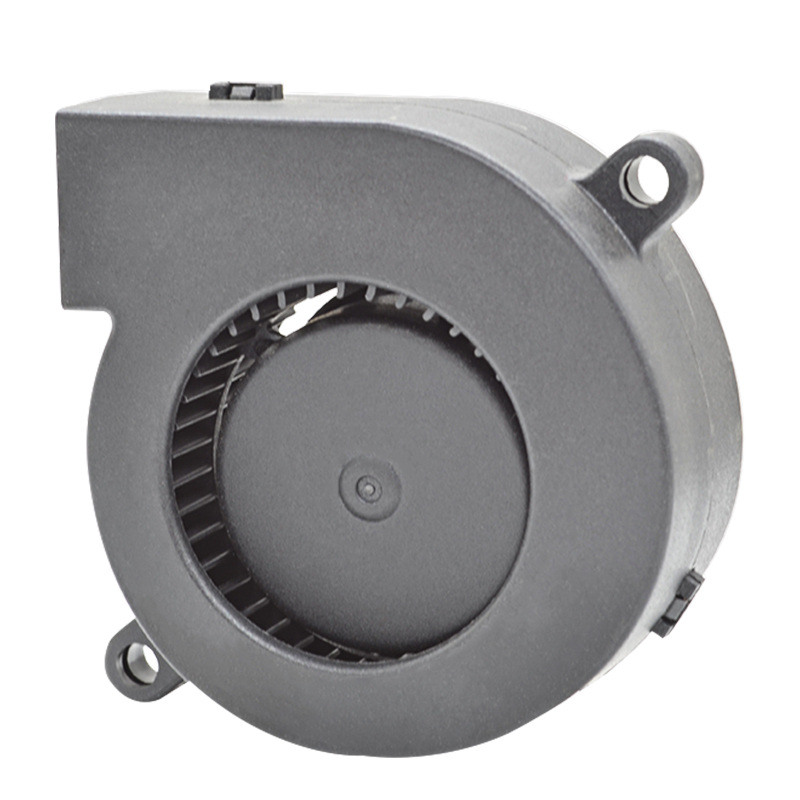

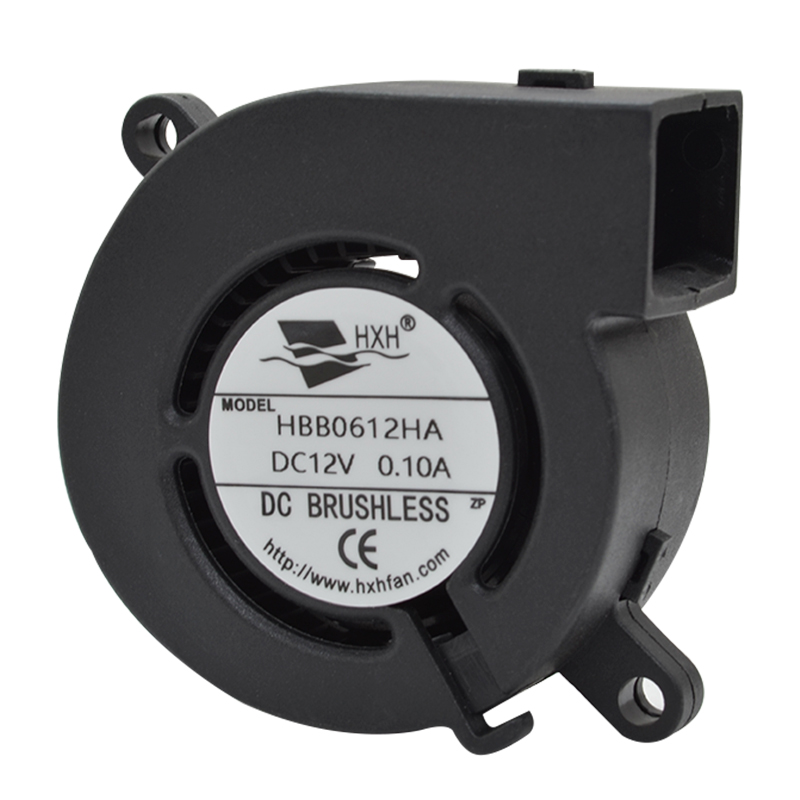

| 60*60*25MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0612HA-1 | Sleeve | 12 | 5.0 | 0.32 | 3.84 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | |
| HBS0612MA-1 | 5.0 | 0.24 | 2.88 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBS0612LA-1 | 5.0 | 0.18 | 2.16 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBB0612HA-1 | Ball | 5.0 | 0.32 | 3.84 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | ||
| HBB0612MA-1 | 5.0 | 0.24 | 2.88 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBB0612LA-1 | 5.0 | 0.18 | 2.16 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBS0624HA-1 | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | |
| HBS0624MA-1 | 12.0 | 0.15 | 3.60 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBS0624LA-1 | 12.0 | 0.11 | 2.64 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| HBB0624HA-1 | Ball | 12.0 | 0.20 | 4.80 | 4500 | 0.21 | 7.56 | 13.40 | 0.53 | 41.3 | ||
| HBB0624MA-1 | 12.0 | 0.15 | 3.60 | 3700 | 0.18 | 6.22 | 9.06 | 0.36 | 37.1 | |||
| HBB0624LA-1 | 12.0 | 0.11 | 2.64 | 3200 | 0.15 | 5.38 | 6.78 | 0.27 | 33.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
