Product introduction:
Product introduction:
| Size: | 50x50x12mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Hydraulic Bearing Double Ball Bearing |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 50×50×12mm | ||||||||||||
| Model | BearinE | Rated VoltaEe | Startup VoltaEe | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0505EE | -A | Hydraulic | 5 | 4.0 | 0.30 | 1.50 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 |
| HDH0505UE | 4.0 | 0.25 | 1.25 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||
| HDH0505HE | 4.0 | 0.22 | 1.10 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDH0505ME | 4.0 | 0.20 | 1.00 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDH0505LE | 4.0 | 0.16 | 0.80 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| HDB0505EE | -A | Ball | 4.0 | 0.30 | 1.50 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 | |
| HDB0505UE | 4.0 | 0.25 | 1.25 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||
| HDB0505HE | 4.0 | 0.22 | 1.10 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDB0505ME | 4.0 | 0.20 | 1.00 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDB0505LE | 4.0 | 0.16 | 0.80 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| HDH0512EE | Hydraulic | 12 | 7.0 | 0.24 | 2.88 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 | |
| HDH0512UE | 7.0 | 0.20 | 2.40 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||
| HDH0512HE | 7.0 | 0.15 | 1.80 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDH0512ME | 7.0 | 0.10 | 1.20 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDH0512LE | 9.0 | 0.08 | 0.96 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| HDB0512EE | Ball | 7.0 | 0.24 | 2.88 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 | ||
| HDB0512UE | 7.0 | 0.20 | 2.40 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||

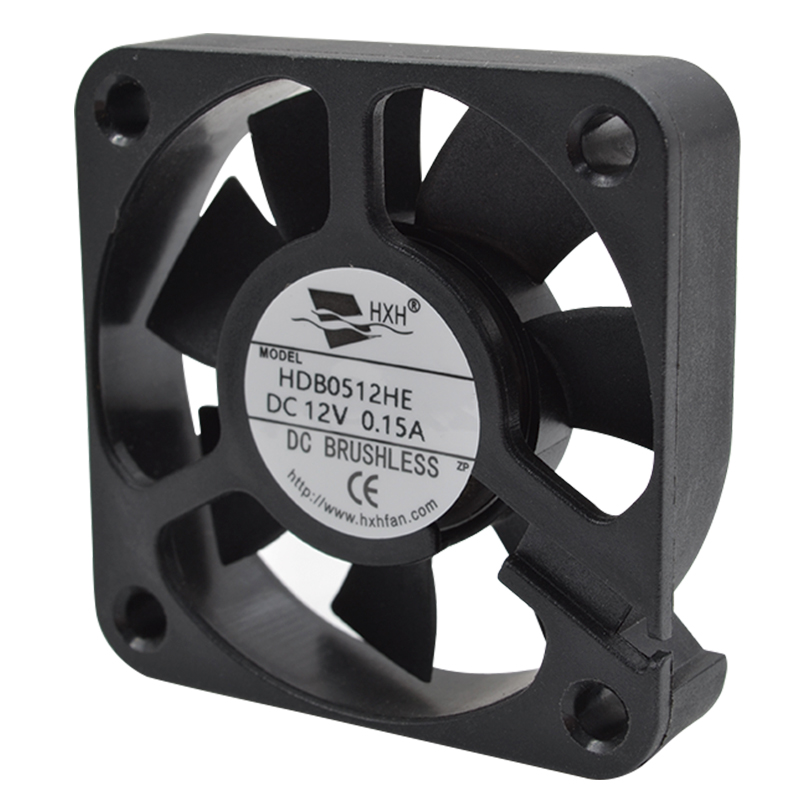

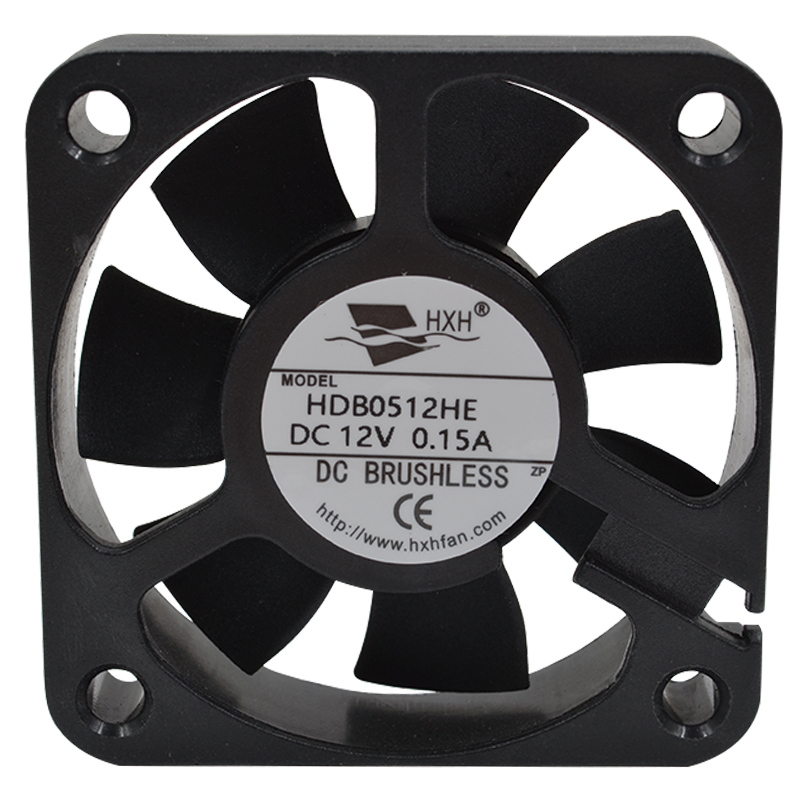

| HDB0512HE | 7.0 | 0.15 | 1.80 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDB0512ME | 7.0 | 0.10 | 1.20 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDB0512LE | 9.0 | 0.08 | 0.96 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| HDH0524EE | Hydraulic | 24 | 12.0 | 0.15 | 3.60 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 | |
| HDH0524UE | 12.0 | 0.12 | 2.88 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||
| HDH0524HE | 12.0 | 0.10 | 2.40 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDH0524ME | 12.0 | 0.09 | 2.16 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDH0524LE | 12.0 | 0.06 | 1.44 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| HDB0524EE | Ball | 12.0 | 0.15 | 3.60 | 7500 | 0.31 | 11.09 | 5.58 | 0.22 | 43.6 | ||
| HDB0524UE | 12.0 | 0.12 | 2.88 | 6500 | 0.27 | 9.52 | 4.53 | 0.18 | 39.9 | |||
| HDB0524HE | 12.0 | 0.10 | 2.40 | 6000 | 0.25 | 8.81 | 3.86 | 0.15 | 37.9 | |||
| HDB0524ME | 12.0 | 0.09 | 2.16 | 5500 | 0.23 | 7.98 | 3.29 | 0.13 | 35.9 | |||
| HDB0524LE | 12.0 | 0.06 | 1.44 | 4500 | 0.18 | 6.39 | 2.29 | 0.09 | 32.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
