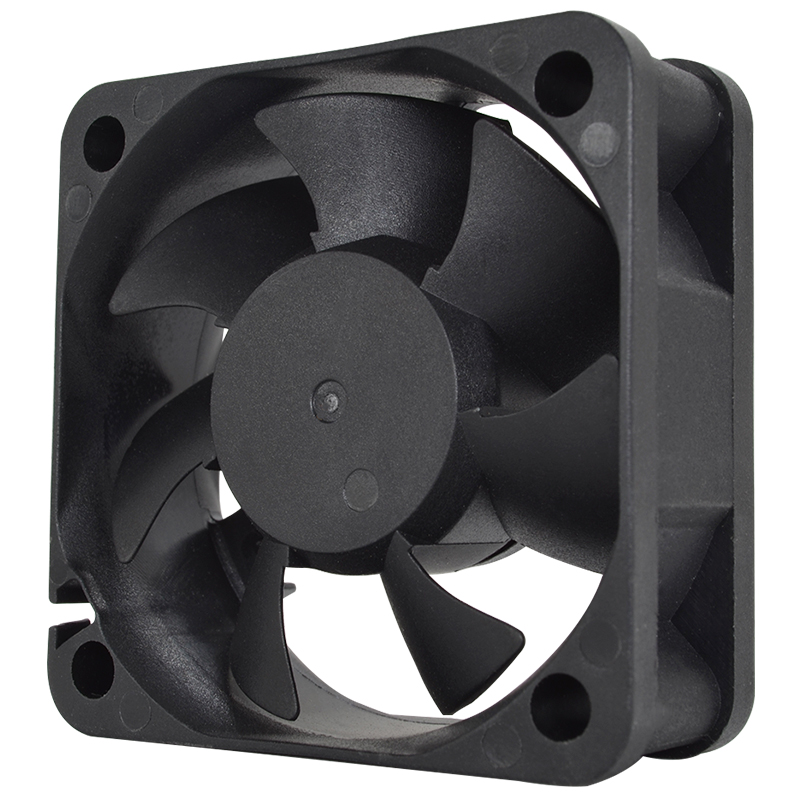

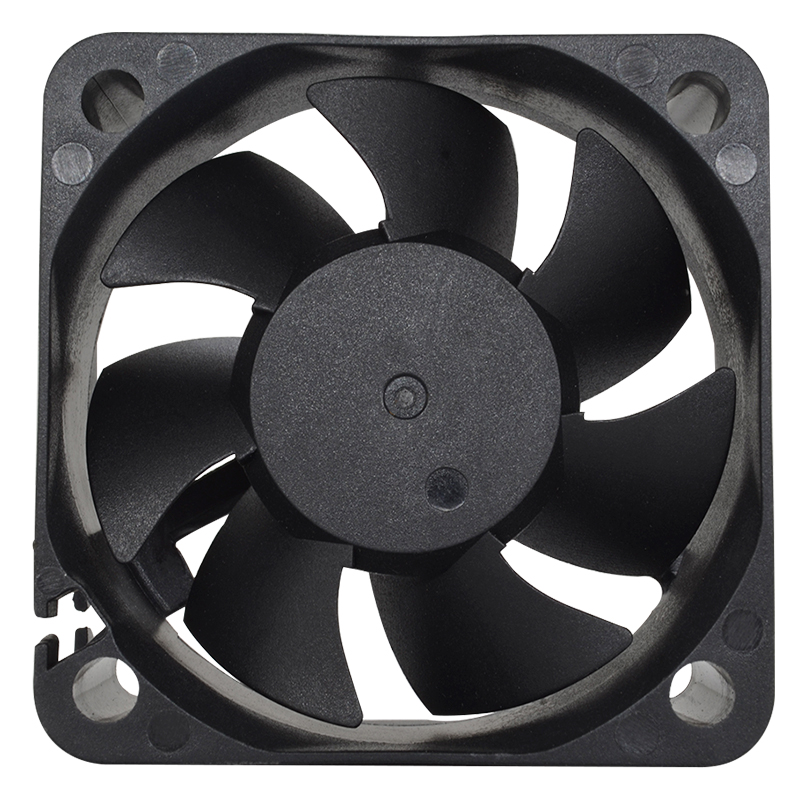

Product introduction:
Product introduction:
| Size: | 50x50x20mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Hydraulic Bearing Double Ball Bearing |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 50×50×20mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0505HC | -A | Hydraulic | 5 | 4.0 | 0.31 | 1.55 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 |
| HDH0505MC | 4.0 | 0.25 | 1.25 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDH0505LC | 4.0 | 0.14 | 0.70 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| HDB0505HC | -A | Ball | 4.0 | 0.31 | 1.55 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 | |
| HDB0505MC | 4.0 | 0.25 | 1.25 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDB0505LC | 4.0 | 0.14 | 0.70 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| HDH0512VC | -A | Hydraulic | 12 | 4.0 | 0.35 | 4.20 | 7000 | 0.58 | 20.34 | 8.98 | 0.35 | 43.7 |
| HDH0512EC | -A | 7.0 | 0.30 | 3.60 | 6500 | 0.52 | 18.25 | 7.91 | 0.31 | 41.5 | ||
| HDH0512UC | 7.0 | 0.25 | 3.00 | 6000 | 0.49 | 17.23 | 7.10 | 0.28 | 39.2 | |||
| HDH0512HC | 7.0 | 0.20 | 2.40 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 | |||
| HDH0512MC | 7.0 | 0.12 | 1.44 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDH0512LC | 7.0 | 0.09 | 1.08 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| HDB0512VC | -A | Ball | 7.0 | 0.35 | 4.20 | 7000 | 0.58 | 20.34 | 8.98 | 0.35 | 43.7 | |
| HDB0512EC | -A | 7.0 | 0.30 | 3.60 | 6500 | 0.52 | 18.25 | 7.91 | 0.31 | 41.5 | ||
| HDB0512UC | 7.0 | 0.25 | 3.00 | 6000 | 0.49 | 17.23 | 7.10 | 0.28 | 39.2 | |||

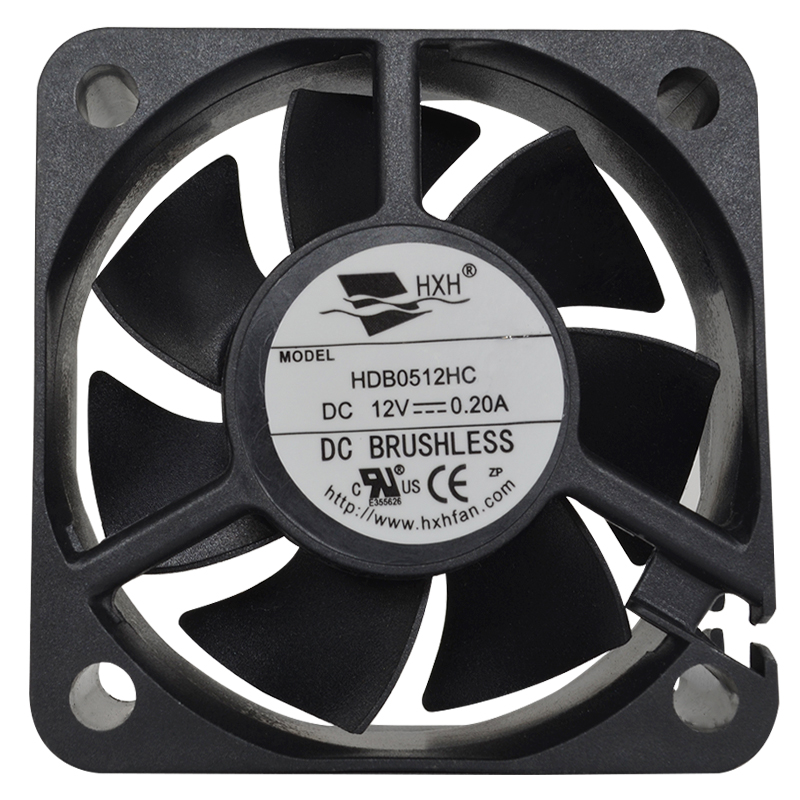

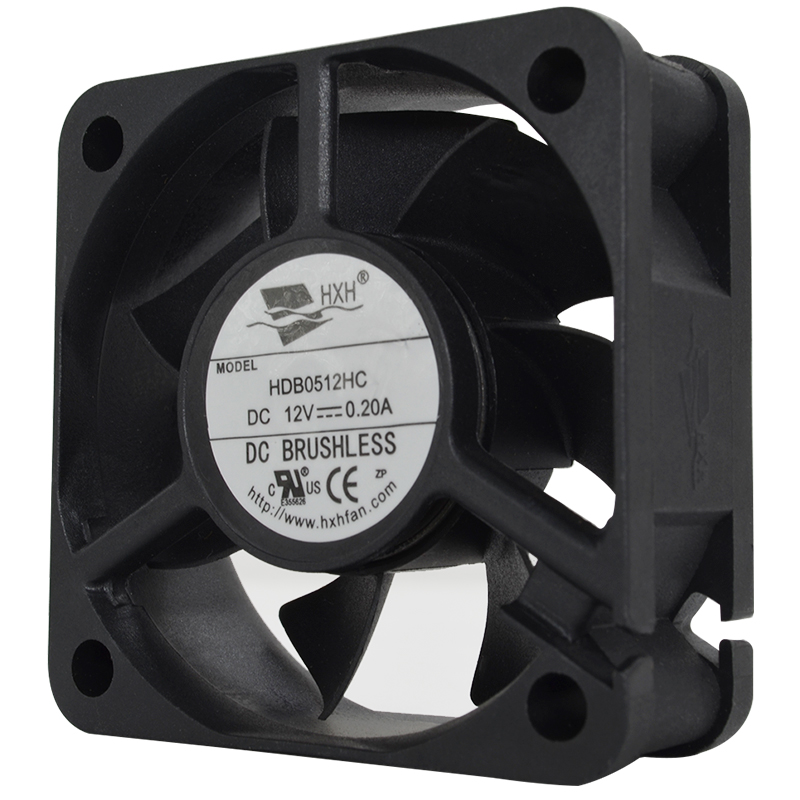

| HDB0512HC | 7.0 | 0.20 | 2.40 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 | |||
| HDB0512MC | 7.0 | 0.12 | 1.44 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDB0512LC | 7.0 | 0.09 | 1.08 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| HDH0524VC | -A | Hydraulic | 24 | 12.0 | 0.23 | 5.52 | 7000 | 0.58 | 20.34 | 8.98 | 0.35 | 43.7 |
| HDH0524EC | -A | 12.0 | 0.20 | 4.80 | 6500 | 0.52 | 18.25 | 7.91 | 0.31 | 41.5 | ||
| HDH0524UC | 12.0 | 0.18 | 4.32 | 6000 | 0.49 | 17.23 | 7.10 | 0.28 | 39.2 | |||
| HDH0524HC | 12.0 | 0.13 | 3.12 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 | |||
| HDH0524MC | 12.0 | 0.08 | 1.92 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDH0524LC | 12.0 | 0.06 | 1.44 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| HDB0524VC | -A | Ball | 12.0 | 0.23 | 5.52 | 7000 | 0.58 | 20.34 | 8.98 | 0.35 | 43.7 | |
| HDB0524EC | -A | 12.0 | 0.20 | 4.80 | 6500 | 0.52 | 18.25 | 7.91 | 0.31 | 41.5 | ||
| HDB0524UC | 12.0 | 0.18 | 4.32 | 6000 | 0.49 | 17.23 | 7.10 | 0.28 | 39.2 | |||
| HDB0524HC | 12.0 | 0.13 | 3.12 | 5500 | 0.45 | 15.77 | 5.80 | 0.23 | 37.6 | |||
| HDB0524MC | 12.0 | 0.08 | 1.92 | 5000 | 0.41 | 14.32 | 4.85 | 0.19 | 35.0 | |||
| HDB0524LC | 12.0 | 0.06 | 1.44 | 4000 | 0.33 | 11.51 | 3.28 | 0.13 | 30.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
