Product introduction:
Product introduction:
| Size: | 60x60x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

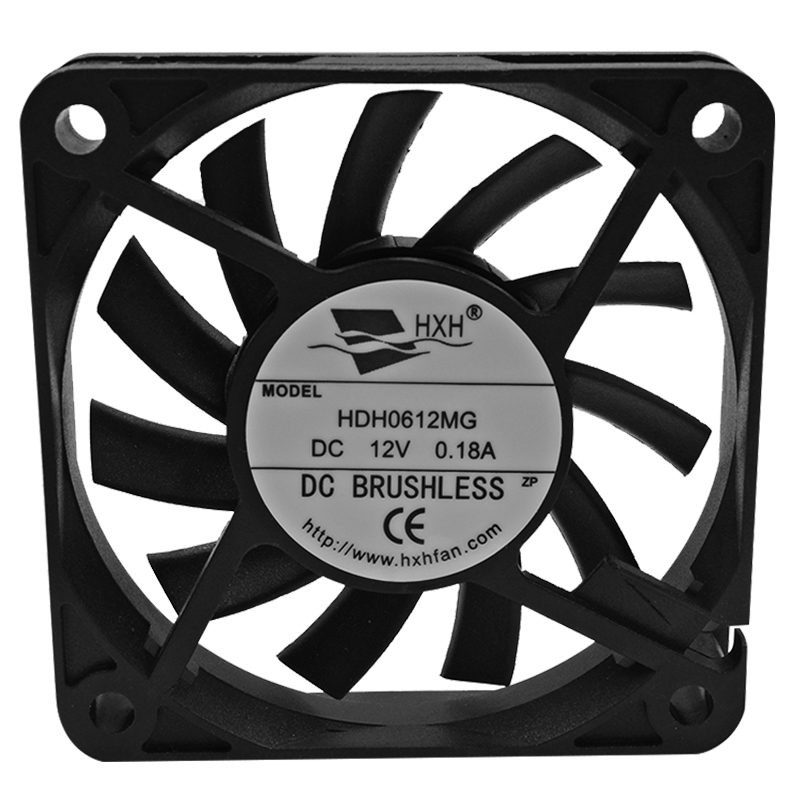

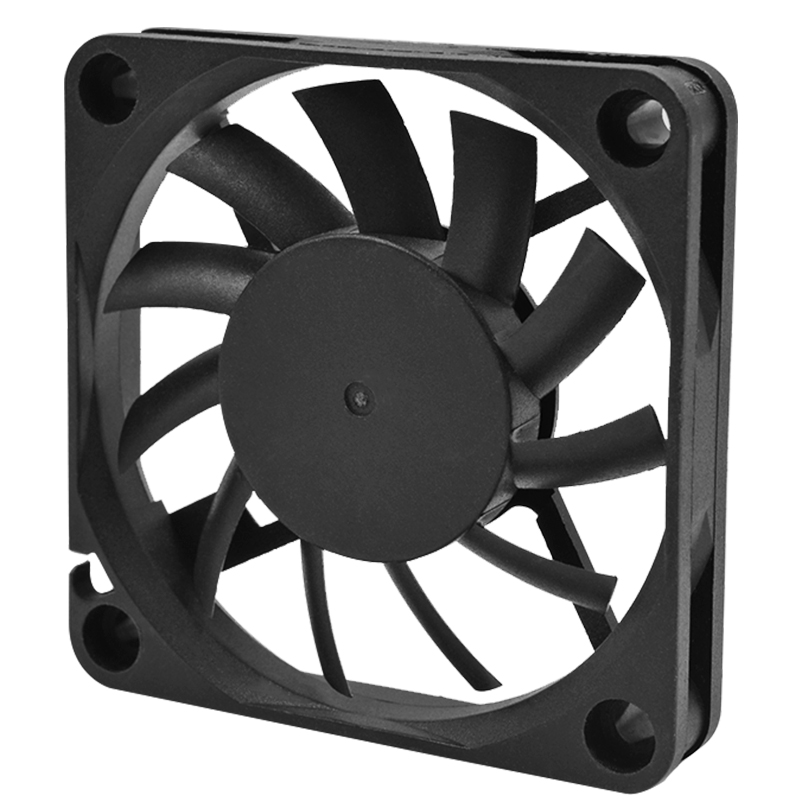

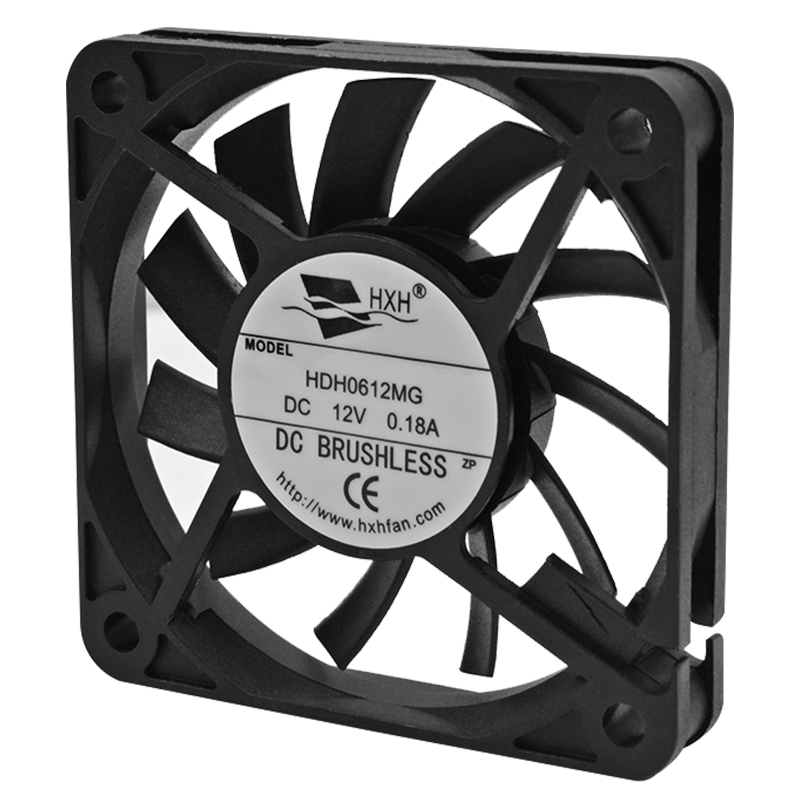

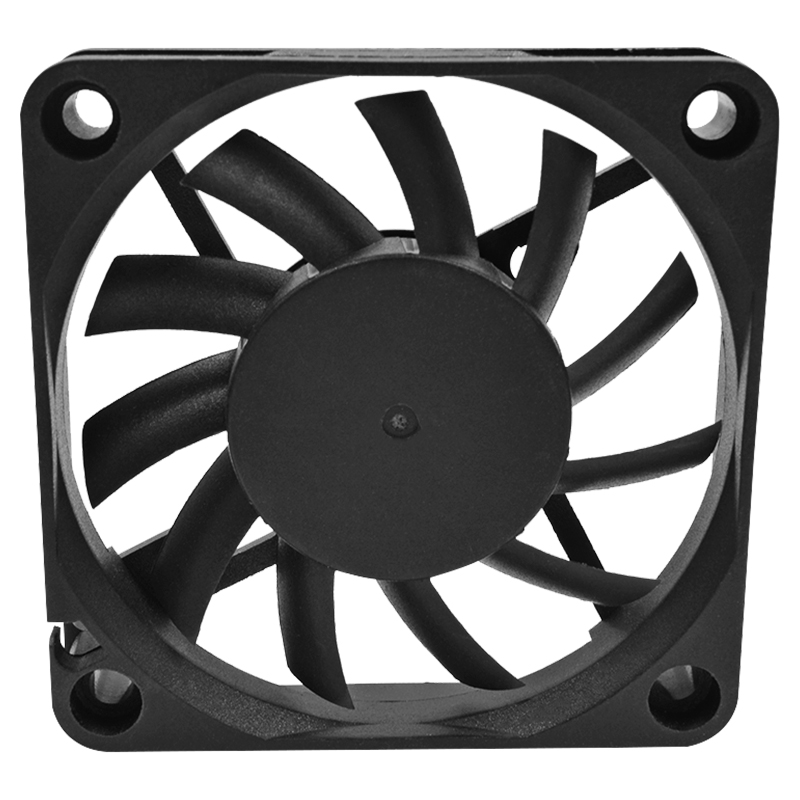

| 60×60×10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0605HG | Sleeve | 5 | 4.0 | 0.28 | 1.40 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | |
| HDS0605MG | 4.0 | 0.25 | 1.25 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HDS0605LG | 4.0 | 0.20 | 1.00 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| HDB0605HG | Ball | 4.0 | 0.28 | 1.40 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | ||
| HDB0605MG | 4.0 | 0.25 | 1.25 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HDB0605LG | 4.0 | 0.20 | 1.00 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| HDS0612HG | Sleeve | 12 | 6.0 | 0.22 | 2.64 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | |
| HDS0612MG | 6.0 | 0.18 | 2.16 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HDS0612LG | 6.0 | 0.16 | 1.92 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| HDB0612HG | Ball | 6.0 | 0.22 | 2.64 | 4000 | 0.43 | 15.09 | 2.31 | 0.09 | 29.2 | ||
| HDB0612MG | 6.0 | 0.18 | 2.16 | 3500 | 0.38 | 13.29 | 1.81 | 0.07 | 26.8 | |||
| HDB0612LG | 6.0 | 0.16 | 1.92 | 3000 | 0.31 | 10.84 | 1.26 | 0.05 | 23.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
