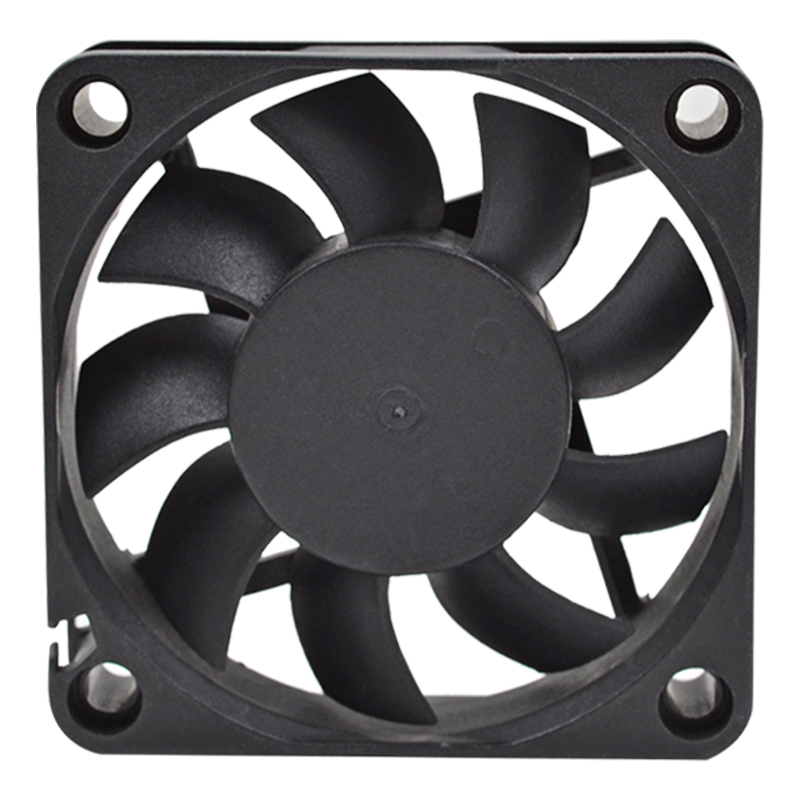

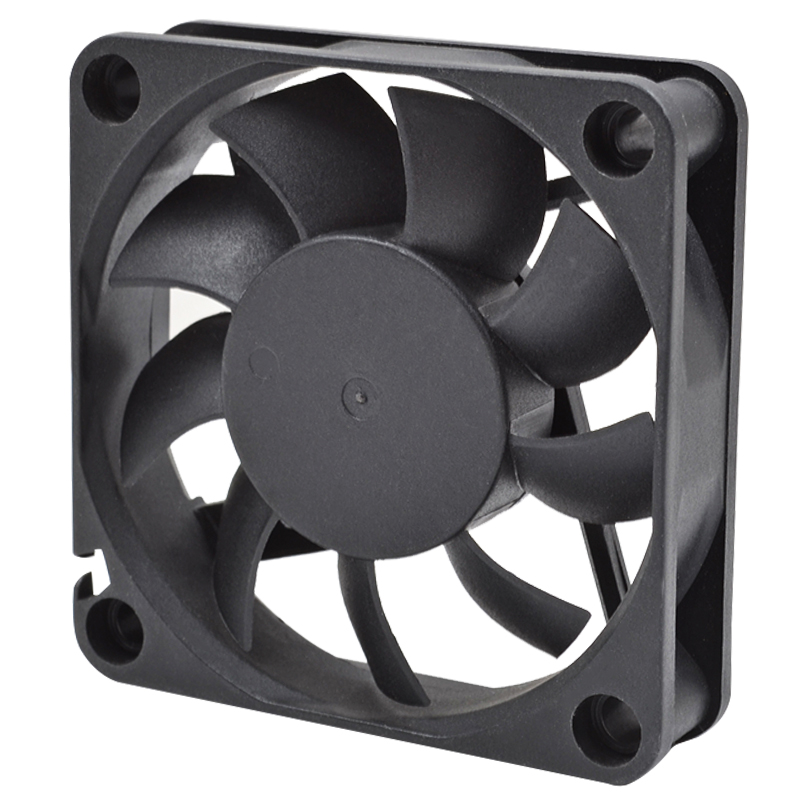

Product introduction:
| Size: | 60x60x15mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24VV |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 60×60×15mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0605HD-1 | Sleeve | 5 | 4.0 | 0.23 | 1.15 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |
| HDS0605MD-1 | 4.0 | 0.20 | 1.00 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDS0605LD-1 | 4.0 | 0.15 | 0.75 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HDB0605HD-1 | Ball | 4.0 | 0.23 | 1.15 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | ||
| HDB0605MD-1 | 4.0 | 0.20 | 1.00 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDB0605LD-1 | 4.0 | 0.15 | 0.75 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HDS0612UD-1 | Sleeve | 12 | 7.0 | 0.20 | 2.40 | 5000 | 0.57 | 20.21 | 4.36 | 0.17 | 34.5 | |
| HDS0612HD-1 | 7.0 | 0.16 | 1.92 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |||
| HDS0612MD-1 | 7.0 | 0.12 | 1.44 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDS0612LD-1 | 7.0 | 0.08 | 0.96 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HDB0612UD-1 | Ball | 7.0 | 0.20 | 2.40 | 5000 | 0.57 | 20.21 | 4.36 | 0.17 | 34.5 | ||

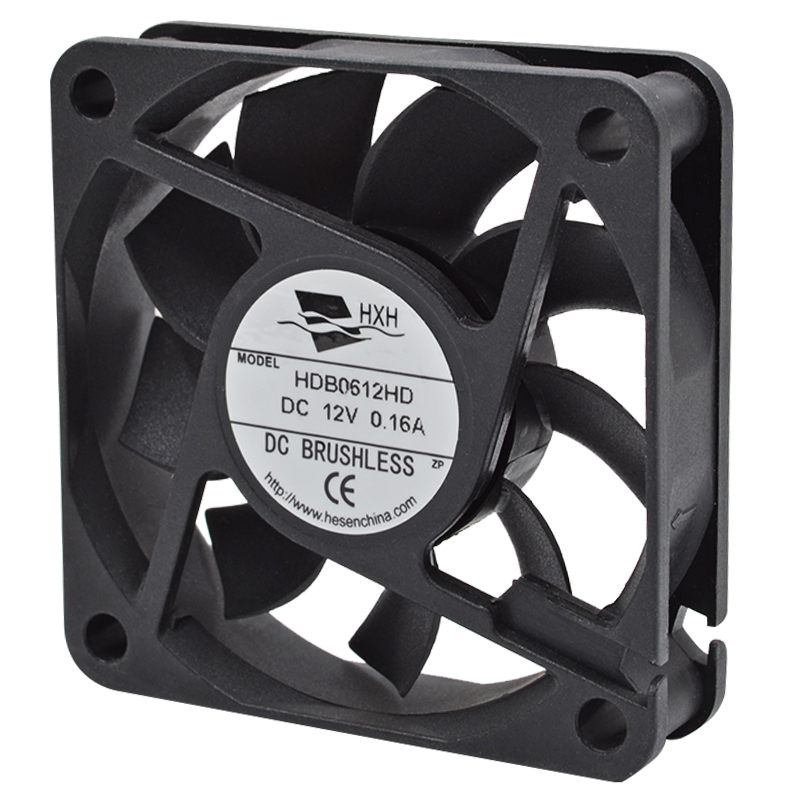

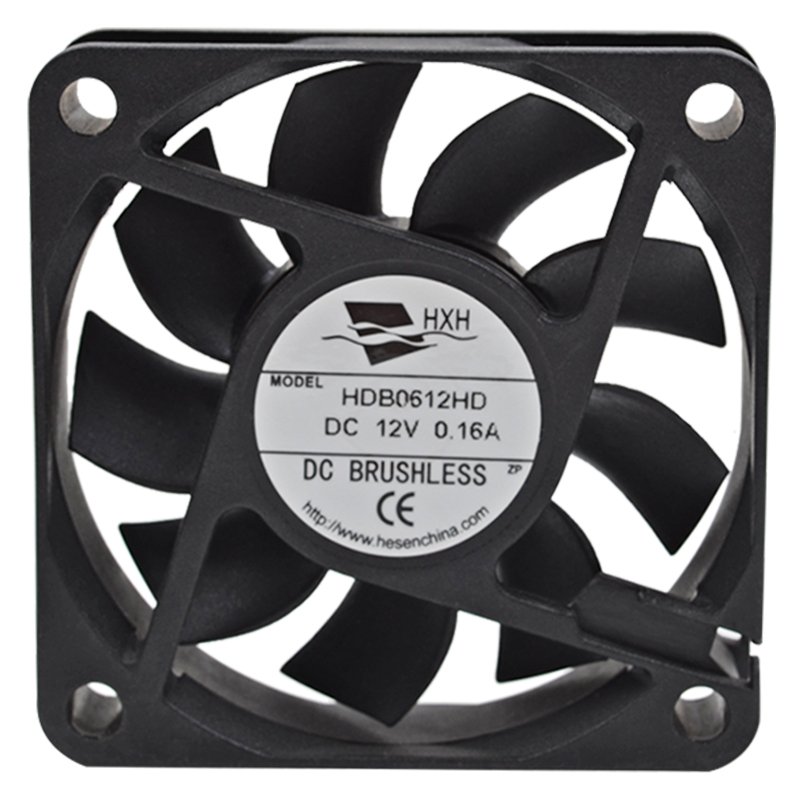

| HDB0612HD-1 | 7.0 | 0.16 | 1.92 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |||
| HDB0612MD-1 | 7.0 | 0.12 | 1.44 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDB0612LD-1 | 7.0 | 0.08 | 0.96 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HDS0624UD-1 | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 5000 | 0.57 | 20.21 | 4.36 | 0.17 | 34.5 | |
| HDS0624HD-1 | 12.0 | 0.10 | 2.40 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |||
| HDS0624MD-1 | 12.0 | 0.08 | 1.92 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDS0624LD-1 | 12.0 | 0.05 | 1.20 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| HDB0624UD-1 | Ball | 12.0 | 0.20 | 4.80 | 5000 | 0.57 | 20.21 | 4.36 | 0.17 | 34.5 | ||
| HDB0624HD-1 | 12.0 | 0.10 | 2.40 | 4200 | 0.49 | 17.17 | 3.21 | 0.13 | 29.8 | |||
| HDB0624MD-1 | 12.0 | 0.08 | 1.92 | 3500 | 0.41 | 14.49 | 2.33 | 0.09 | 26.3 | |||
| HDB0624LD-1 | 12.0 | 0.05 | 1.20 | 3000 | 0.37 | 13.18 | 1.94 | 0.08 | 23.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
