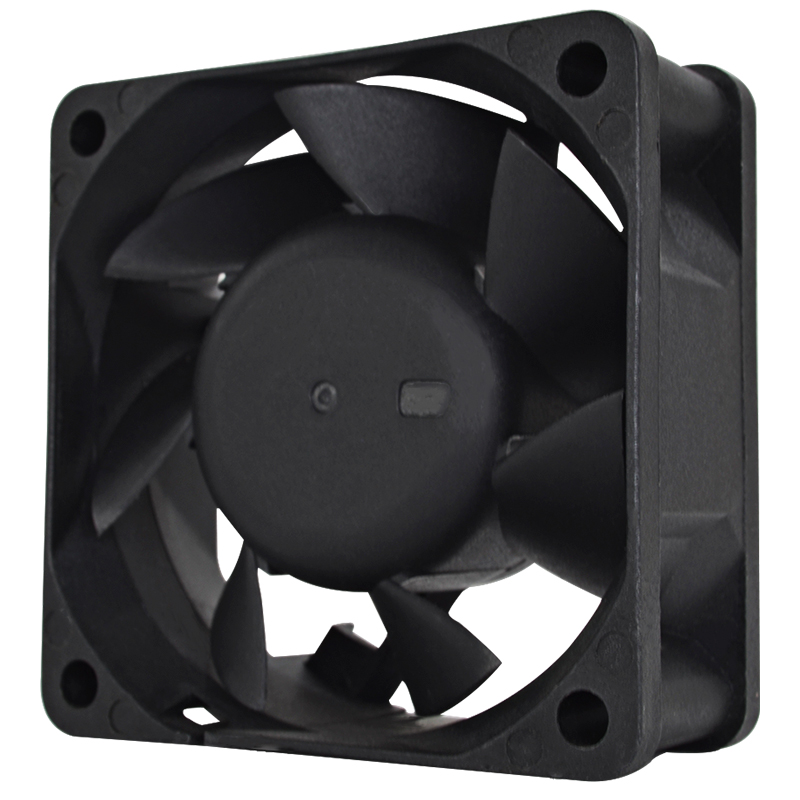

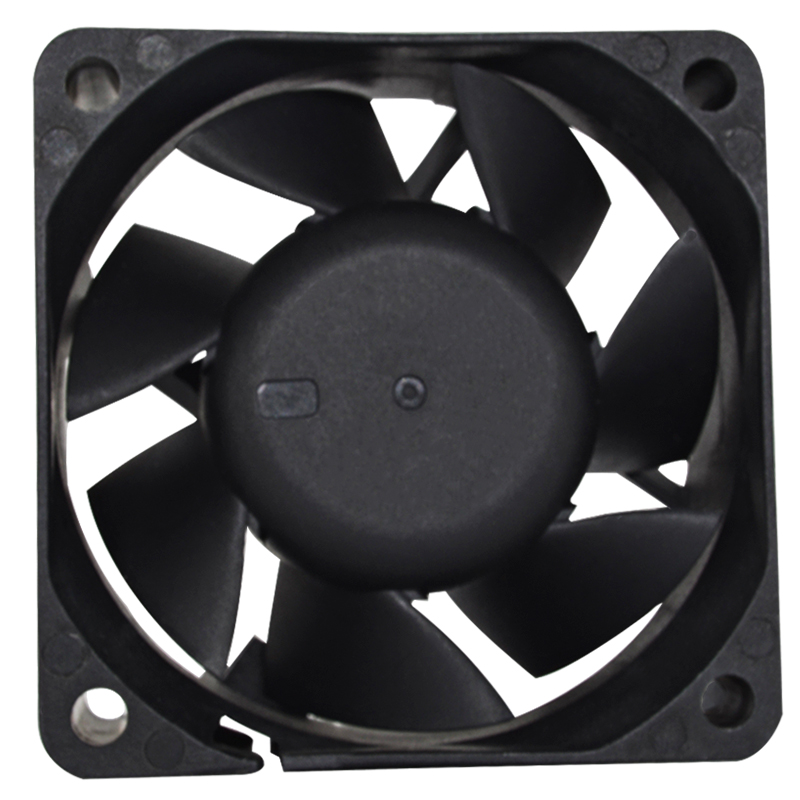

Product introduction:
| Size: |
60x60x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 60×60×25mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0612UA-1 | Hydraulic | 12 | 5.0 | 0.27 | 3.24 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |
| HDH0612HA-1 | 5.0 | 0.18 | 2.16 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
| HDH0612MA-1 | 5.0 | 0.14 | 1.68 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
| HDH0612LA-1 | 5.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
| HDB0612EA-1 | -A | Ball | 5.0 | 0.38 | 4.56 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 | |

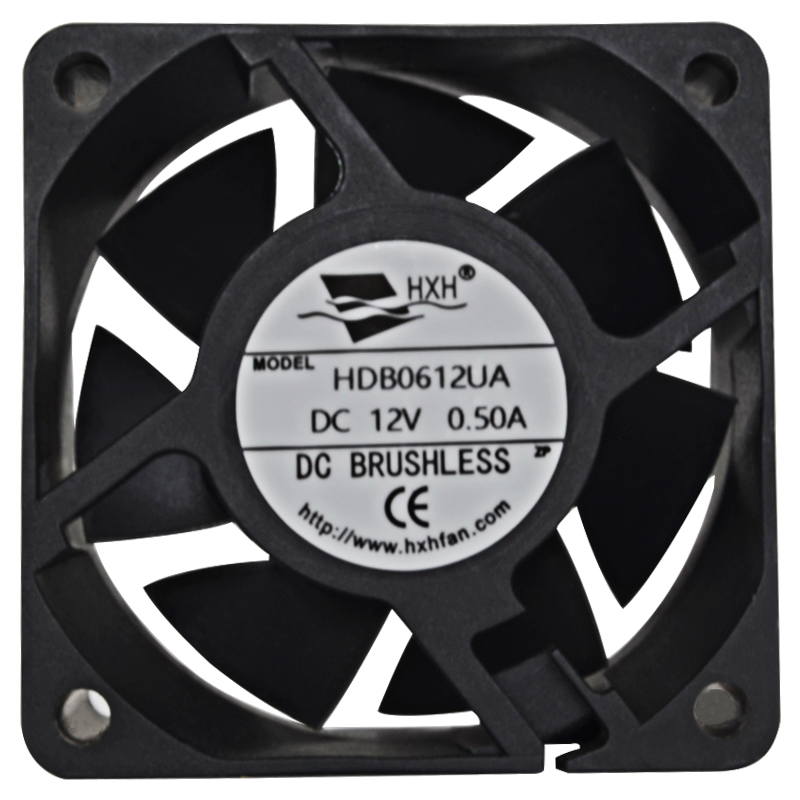

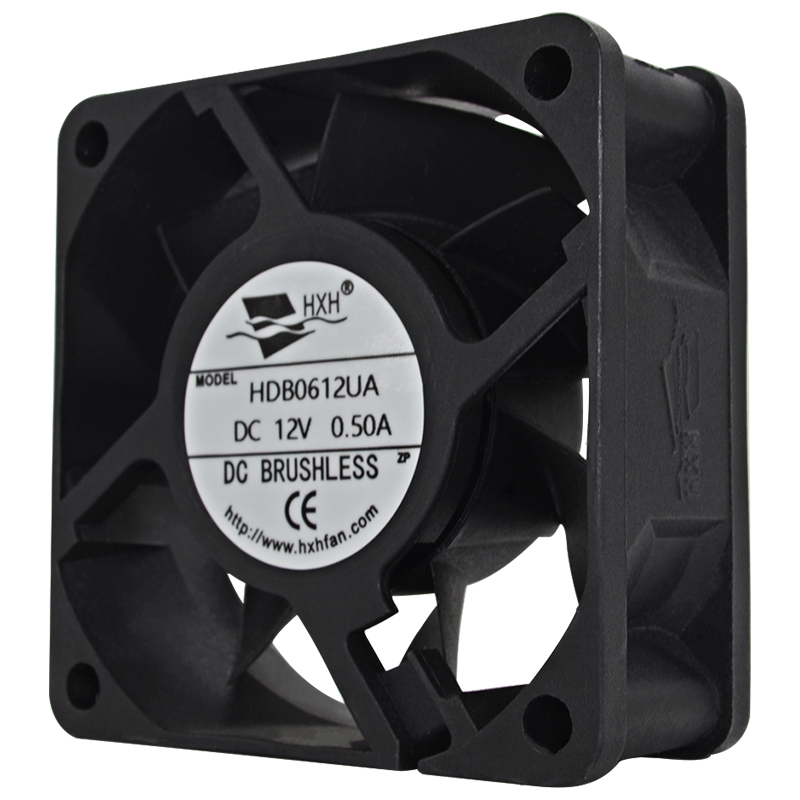

| HDB0612UA-1 | 5.0 | 0.27 | 3.24 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |||
| HDB0612HA-1 | 5.0 | 0.18 | 2.16 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
| HDB0612MA-1 | 5.0 | 0.14 | 1.68 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
| HDB0612LA-1 | 5.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
| HDH0624UA-1 | Hydraulic | 24 | 12.0 | 0.18 | 4.32 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |
| HDH0624HA-1 | 12.0 | 0.12 | 2.88 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
| HDH0624MA-1 | 12.0 | 0.09 | 2.16 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
| HDH0624LA-1 | 12.0 | 0.07 | 1.68 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
| HDB0624EA-1 | -A | Ball | 12.0 | 0.25 | 6.00 | 6000 | 0.93 | 32.70 | 10.82 | 0.43 | 47.3 | |
| HDB0624UA-1 | 12.0 | 0.18 | 4.32 | 5000 | 0.71 | 25.09 | 7.83 | 0.31 | 42.1 | |||
| HDB0624HA-1 | 12.0 | 0.12 | 2.88 | 4000 | 0.55 | 19.60 | 5.12 | 0.20 | 37.1 | |||
| HDB0624MA-1 | 12.0 | 0.09 | 2.16 | 3000 | 0.42 | 14.77 | 2.91 | 0.11 | 30.7 | |||
| HDB0624LA-1 | 12.0 | 0.07 | 1.68 | 2500 | 0.35 | 12.53 | 2.03 | 0.08 | 29.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
