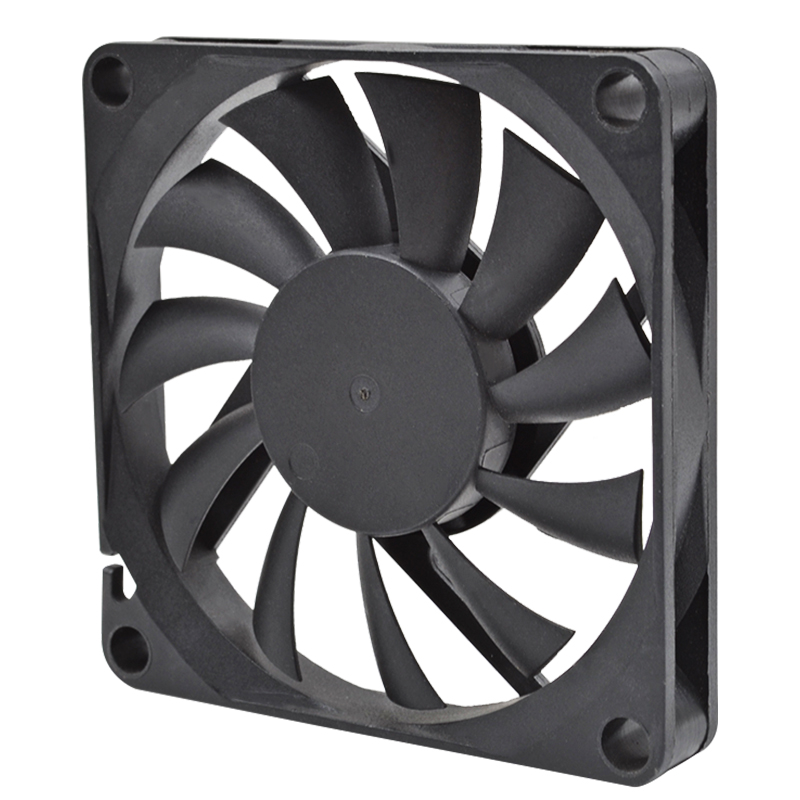

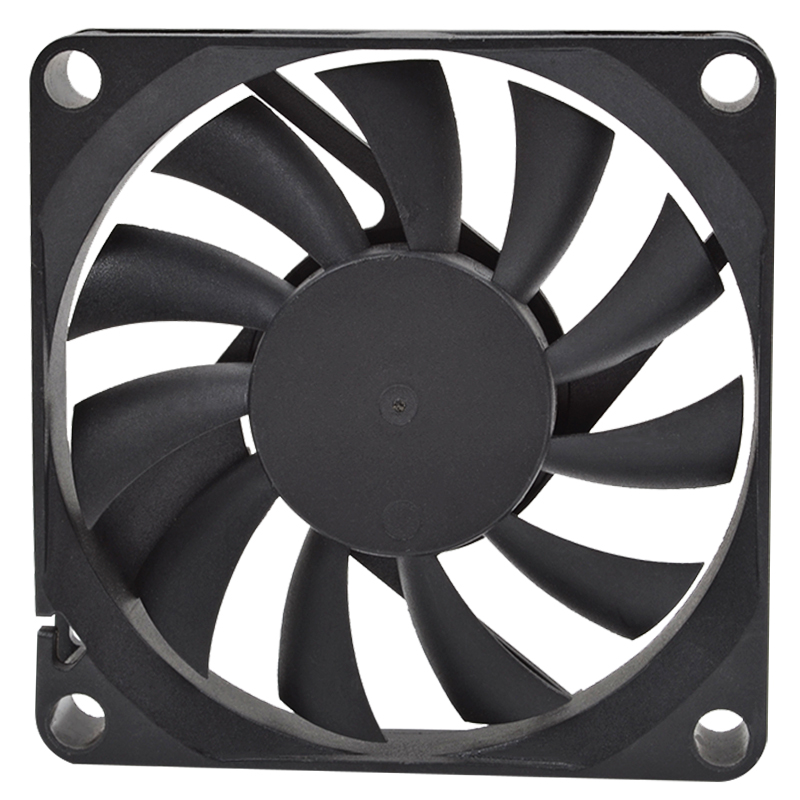

Product introduction:
| Size: | 70x70x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 70×70×10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0705MG | Sleeve | 5 | 4.0 | 0.27 | 1.35 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |
| HDS0705LG | 4.0 | 0.13 | 0.65 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| HDB0705HG | -A | Ball | 4.0 | 0.35 | 1.75 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | |
| HDB0705MG | 4.0 | 0.27 | 1.35 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HDB0705LG | 4.0 | 0.13 | 0.65 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| HDS0712HG | Sleeve | 12 | 5.0 | 0.21 | 2.52 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | |
| HDS0712MG | 5.0 | 0.14 | 1.68 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HDS0712LG | 5.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||

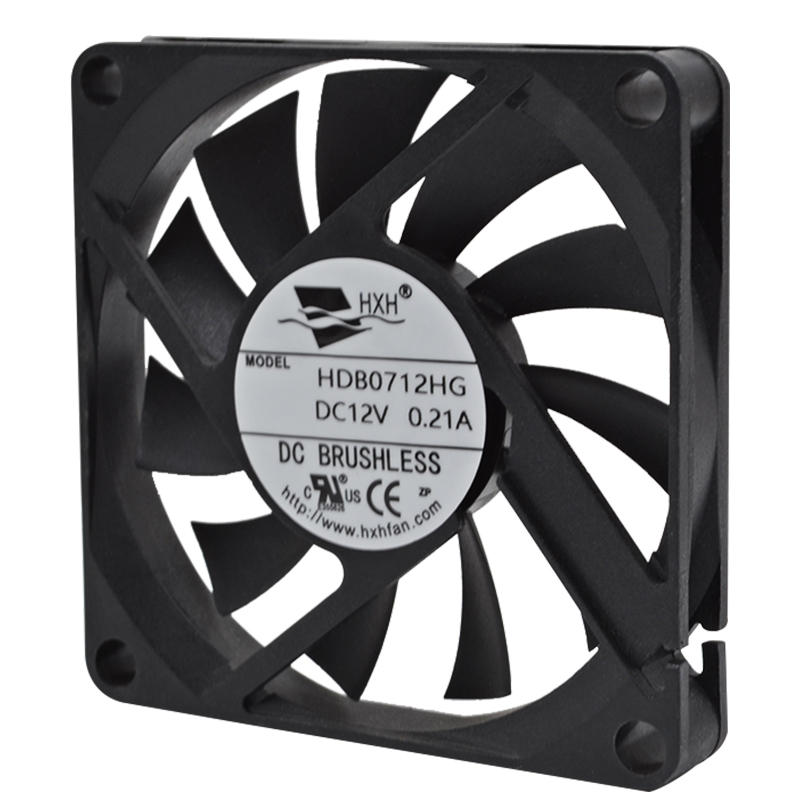

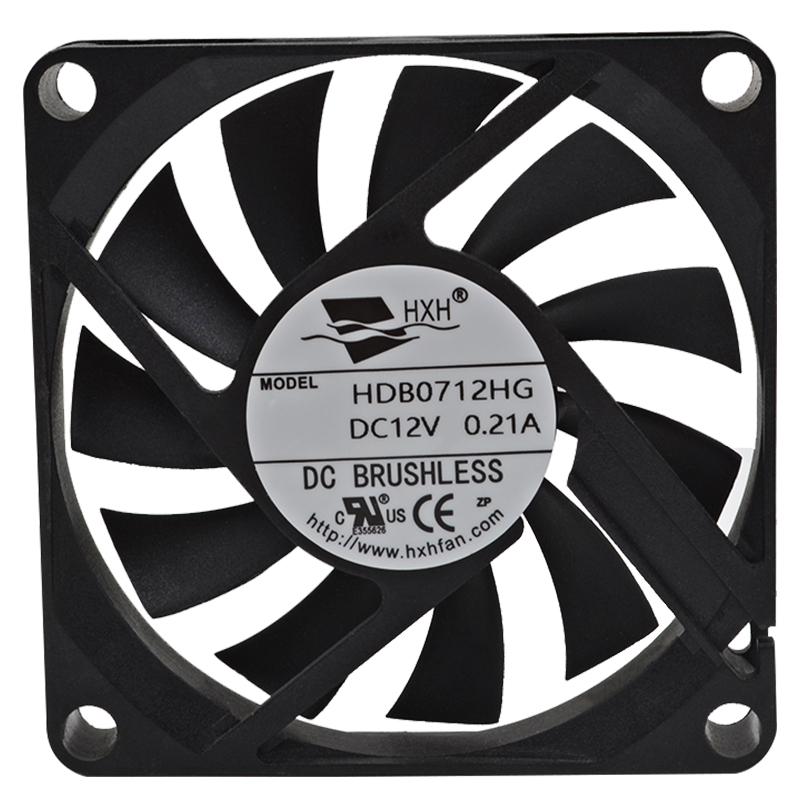

| HDB0712HG | Ball | 5.0 | 0.21 | 2.52 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | ||
| HDB0712MG | 5.0 | 0.14 | 1.68 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HDB0712LG | 5.0 | 0.10 | 1.20 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| HDS0724HG | Sleeve | 24 | 12.0 | 0.13 | 3.12 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | |
| HDS0724MG | 12.0 | 0.11 | 2.64 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HDS0724LG | 12.0 | 0.08 | 1.92 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| HDB0724HG | Ball | 12.0 | 0.13 | 3.12 | 3500 | 0.58 | 20.59 | 2.70 | 0.11 | 27.7 | ||
| HDB0724MG | 12.0 | 0.11 | 2.64 | 3000 | 0.42 | 15.00 | 1.71 | 0.07 | 24.2 | |||
| HDB0724LG | 12.0 | 0.08 | 1.92 | 2500 | 0.35 | 12.36 | 1.09 | 0.04 | 21.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
