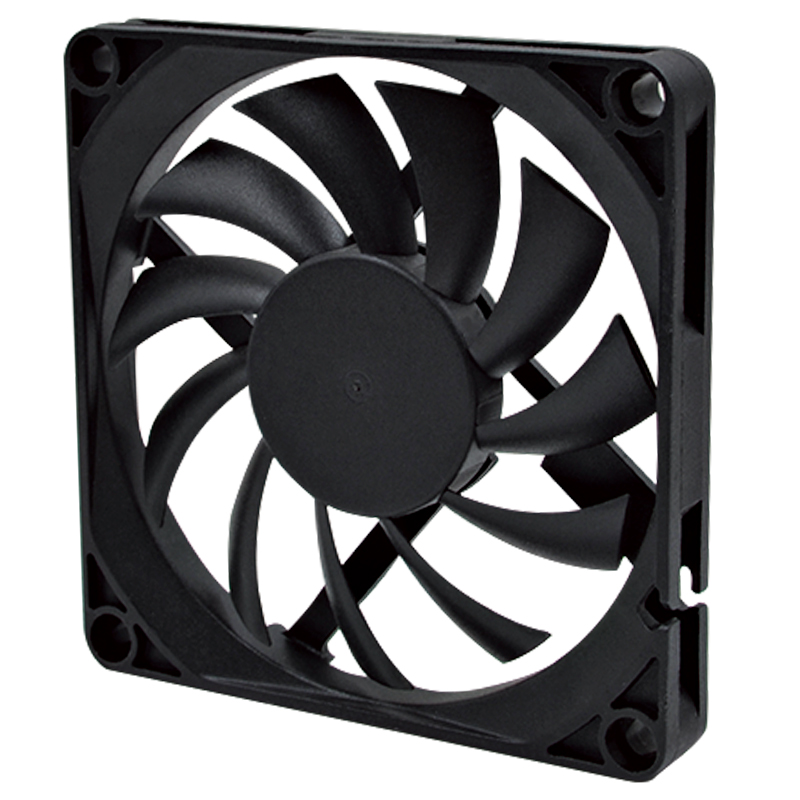

Product introduction:
| Size: | 80x80x10mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 80×80×10mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0805MG | Sleeve | 5 | 4.0 | 0.25 | 1.25 | 2200 | 0.51 | 18.00 | 1.14 | 0.04 | 21.3 | |
| HDS0805LG | 4.0 | 0.20 | 1.00 | 1800 | 0.43 | 15.02 | 0.83 | 0.03 | 18.9 | |||
| HDB0805MG | Ball | 4.0 | 0.25 | 1.25 | 2200 | 0.51 | 18.00 | 1.14 | 0.04 | 21.3 | ||
| HDB0805LG | 4.0 | 0.20 | 1.00 | 1800 | 0.43 | 15.02 | 0.83 | 0.03 | 18.9 | |||
| HDS0812UG | -A | Sleeve | 12 | 6.0 | 0.30 | 3.60 | 3500 | 0.76 | 26.86 | 2.49 | 0.10 | 30.9 |
| HDS0812HG | 6.0 | 0.20 | 2.40 | 3000 | 0.69 | 24.28 | 1.97 | 0.08 | 27.4 | |||

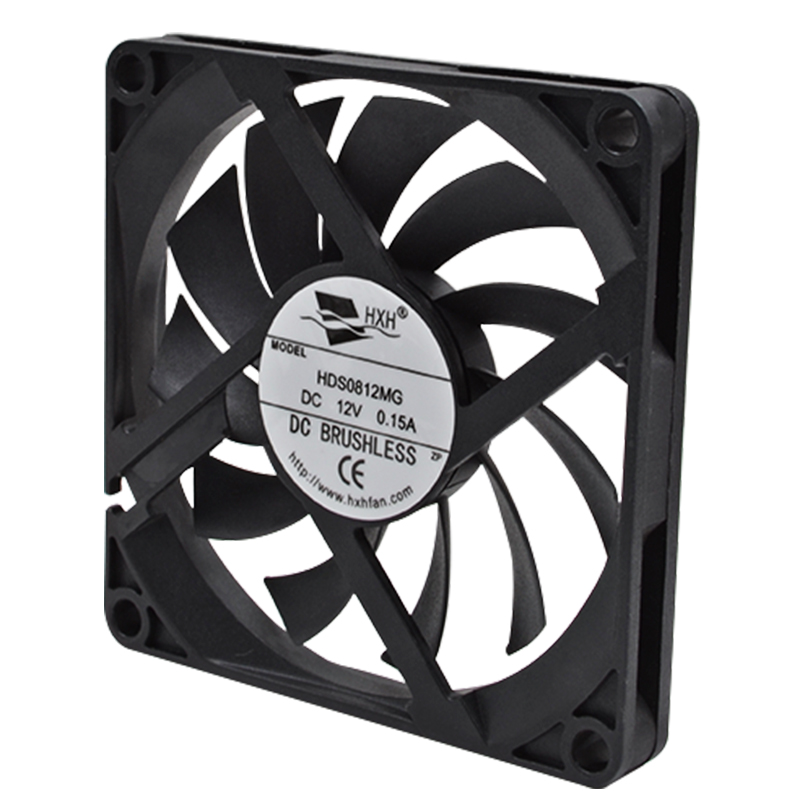

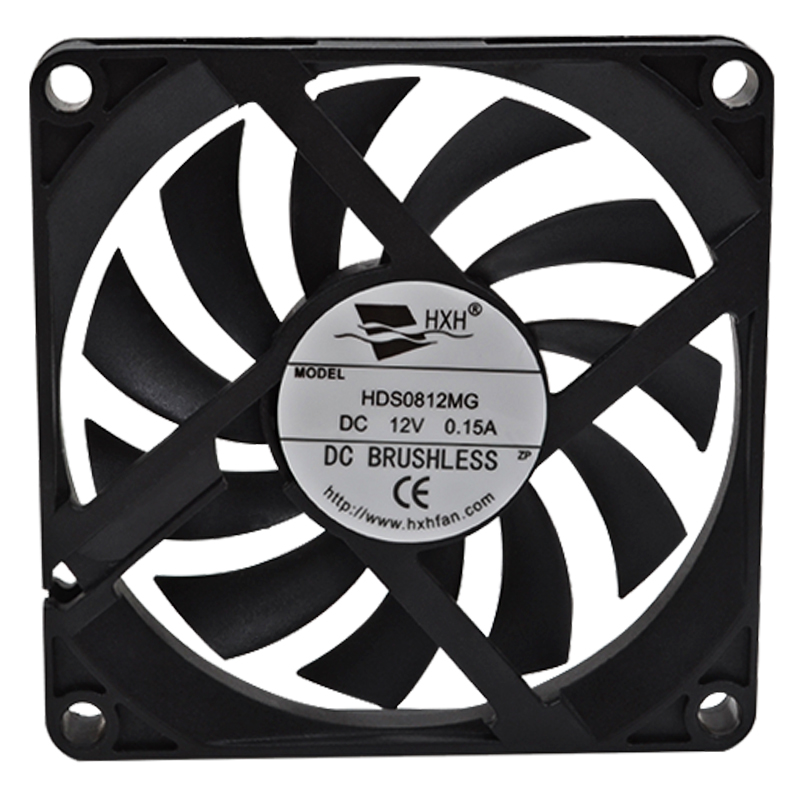

| HDS0812MG | 6.0 | 0.15 | 1.80 | 2500 | 0.58 | 20.49 | 1.45 | 0.06 | 23.9 | |||
| HDS0812LG | 6.0 | 0.10 | 1.20 | 2000 | 0.46 | 16.13 | 0.93 | 0.04 | 20.4 | |||
| HDB0812UG | -A | Ball | 6.0 | 0.30 | 3.60 | 3500 | 0.76 | 26.86 | 2.49 | 0.10 | 30.9 | |
| HDB0812HG | 6.0 | 0.20 | 2.40 | 3000 | 0.69 | 24.28 | 1.97 | 0.08 | 27.4 | |||
| HDB0812MG | 6.0 | 0.15 | 1.80 | 2500 | 0.58 | 20.49 | 1.45 | 0.06 | 23.9 | |||
| HDB0812LG | 6.0 | 0.10 | 1.20 | 2000 | 0.46 | 16.13 | 0.93 | 0.04 | 20.4 | |||
| HDS0824HG | Sleeve | 24 | 12.0 | 0.12 | 2.88 | 3000 | 0.69 | 24.28 | 1.97 | 0.08 | 27.4 | |
| HDS0824MG | 12.0 | 0.08 | 1.92 | 2500 | 0.58 | 20.49 | 1.45 | 0.06 | 23.9 | |||
| HDS0824LG | 12.0 | 0.06 | 1.44 | 2000 | 0.46 | 16.13 | 0.93 | 0.04 | 20.4 | |||
| HDB0824HG | Ball | 12.0 | 0.12 | 2.88 | 3000 | 0.69 | 24.28 | 1.97 | 0.08 | 27.4 | ||
| HDB0824MG | 12.0 | 0.08 | 1.92 | 2500 | 0.58 | 20.49 | 1.45 | 0.06 | 23.9 | |||
| HDB0824LG | 12.0 | 0.06 | 1.44 | 2000 | 0.46 | 16.13 | 0.93 | 0.04 | 20.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
