Product introduction:
| Size: | 92x92x32mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

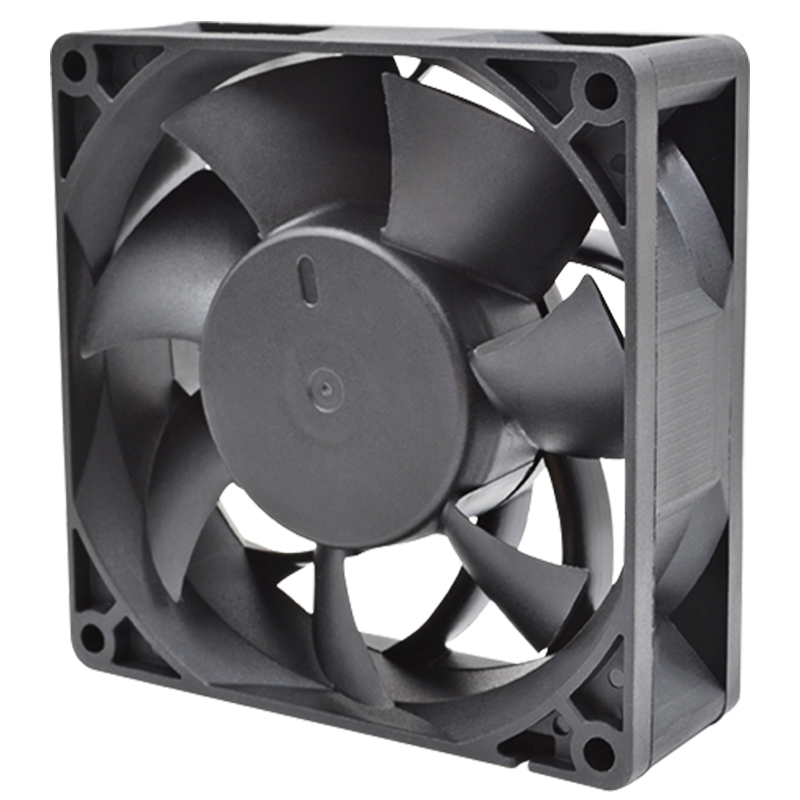

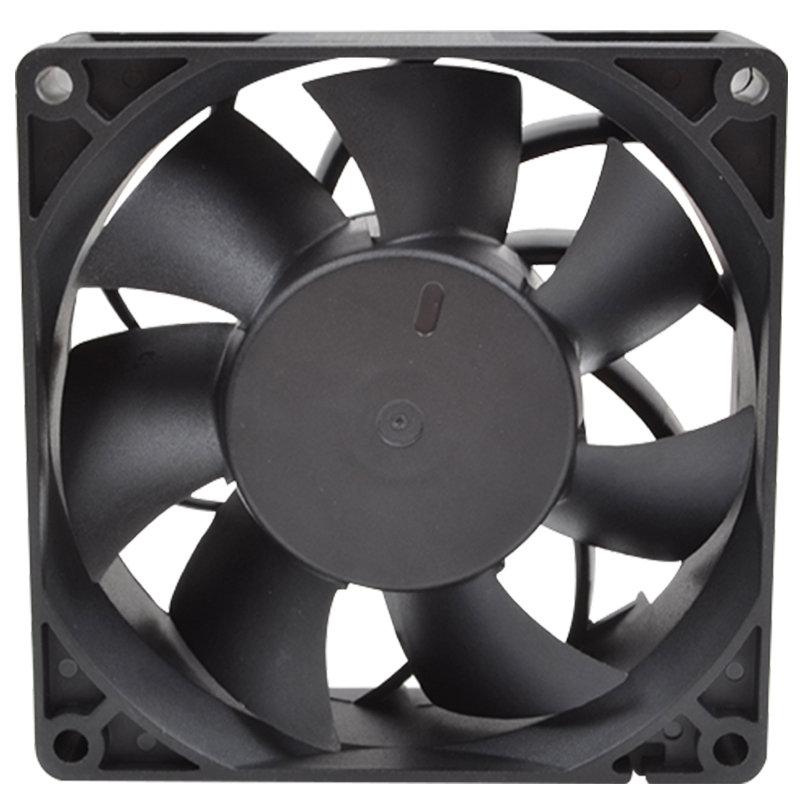

| 92×92×32mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDS0912UY | -A | Sleeve | 12 | 6.0 | 0.93 | 11.16 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 |
| HDS0912HY | -A | 6.0 | 0.68 | 8.16 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDS0912MY | -A | 6.0 | 0.49 | 5.88 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||
| HDS0912LY | -A | 6.0 | 0.35 | 4.20 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| HDB0912UY | -A | Ball | 6.0 | 0.93 | 11.16 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 | |
| HDB0912HY | -A | 6.0 | 0.68 | 8.16 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDB0912MY | -A | 6.0 | 0.49 | 5.88 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||

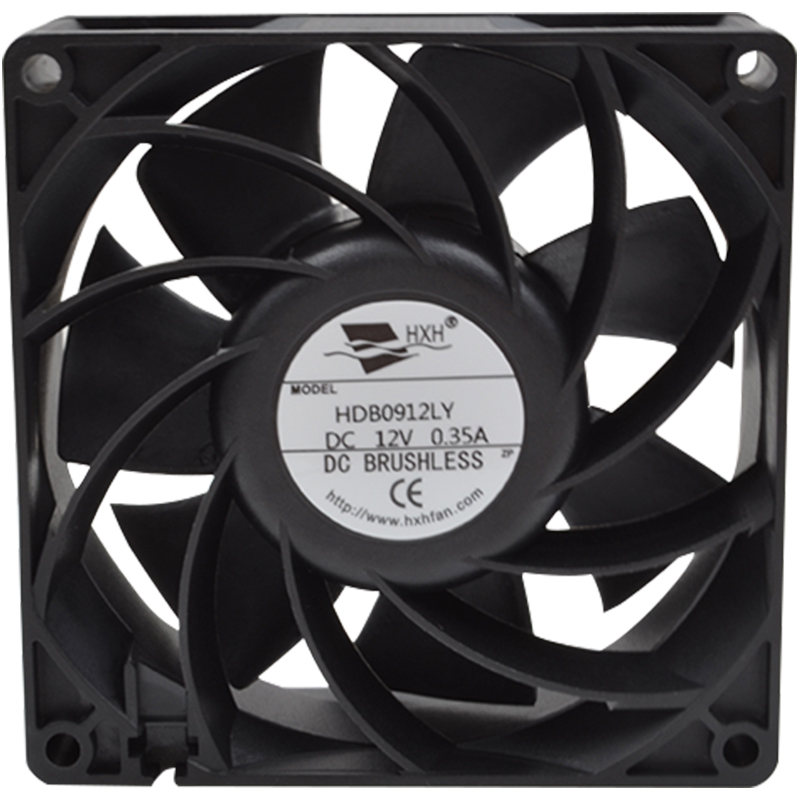

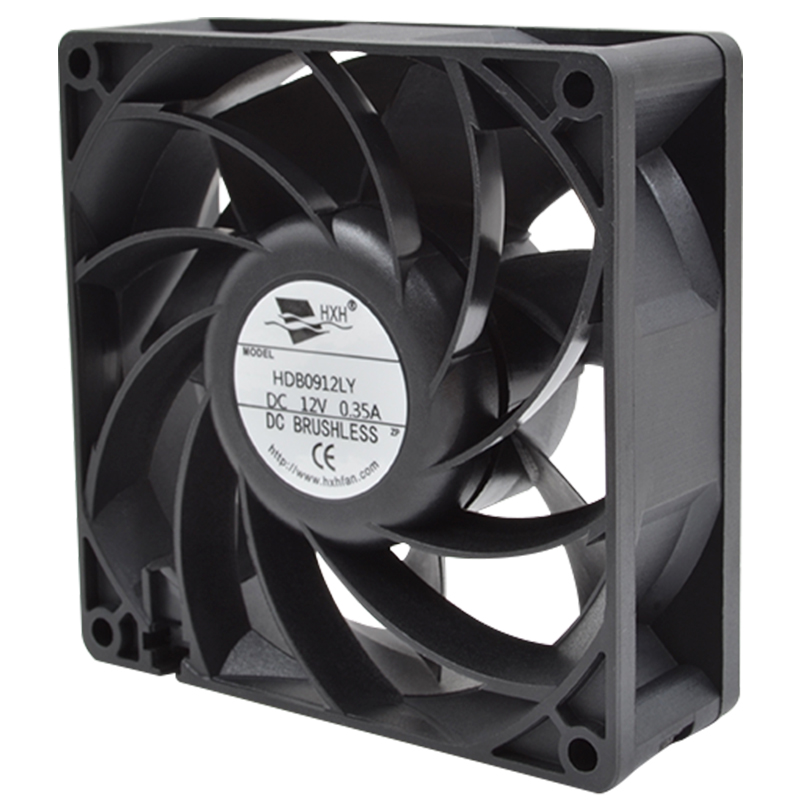

| HDB0912LY | -A | 6.0 | 0.35 | 4.20 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| HDS0924UY | -A | Sleeve | 24 | 12.0 | 0.48 | 11.52 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 |
| HDS0924HY | -A | 12.0 | 0.37 | 8.88 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDS0924MY | -A | 12.0 | 0.25 | 6.00 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||
| HDS0924LY | -A | 12.0 | 0.18 | 4.32 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| HDB0924UY | -A | Ball | 12.0 | 0.48 | 11.52 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 | |
| HDB0924HY | -A | 12.0 | 0.37 | 8.88 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDB0924MY | -A | 12.0 | 0.25 | 6.00 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||
| HDB0924LY | -A | 12.0 | 0.18 | 4.32 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| HDS0948UY | -A | Sleeve | 48 | 24.0 | 0.23 | 11.04 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 |
| HDS0948HY | -A | 24.0 | 0.18 | 8.64 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDS0948MY | -A | 24.0 | 0.13 | 6.24 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||
| HDS0948LY | -A | 24.0 | 0.11 | 5.28 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| HDB0948UY | -A | Ball | 24.0 | 0.23 | 11.04 | 4500 | 2.24 | 79.10 | 11.20 | 0.44 | 45.6 | |
| HDB0948HY | -A | 24.0 | 0.18 | 8.64 | 4000 | 1.96 | 69.30 | 9.58 | 0.38 | 42.3 | ||
| HDB0948MY | -A | 24.0 | 0.13 | 6.24 | 3500 | 1.73 | 61.20 | 7.82 | 0.31 | 40.2 | ||
| HDB0948LY | -A | 24.0 | 0.11 | 5.28 | 3000 | 1.55 | 54.60 | 6.12 | 0.24 | 36.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
