Product introduction:
| Size: | 120x120x25mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×25mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH1212HA | -A | Hydraulic | 12 | 5.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 |
| HDH1212MA | 5.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDH1212LA | 5.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||

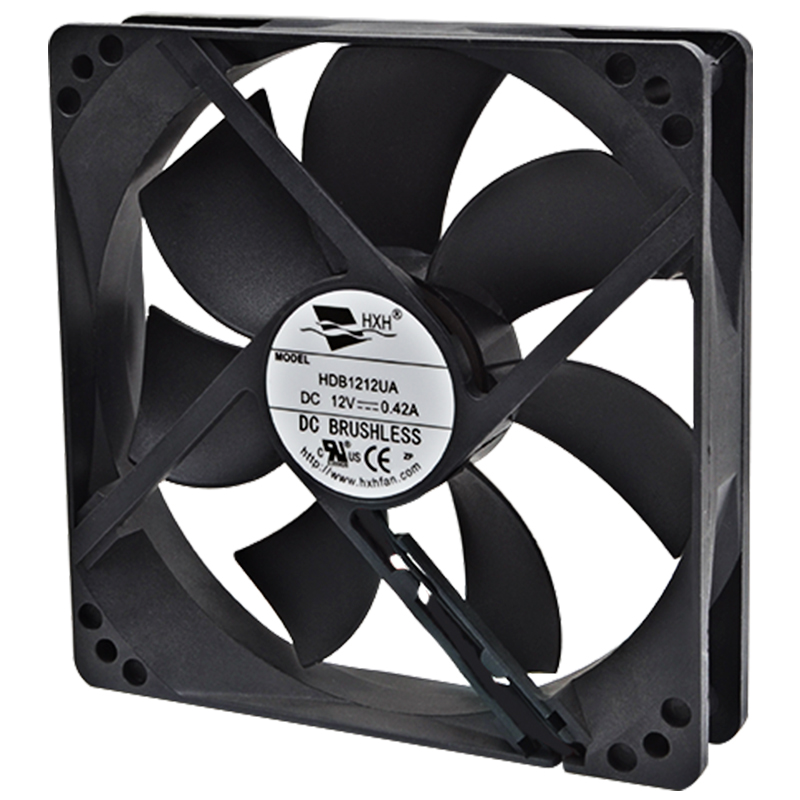

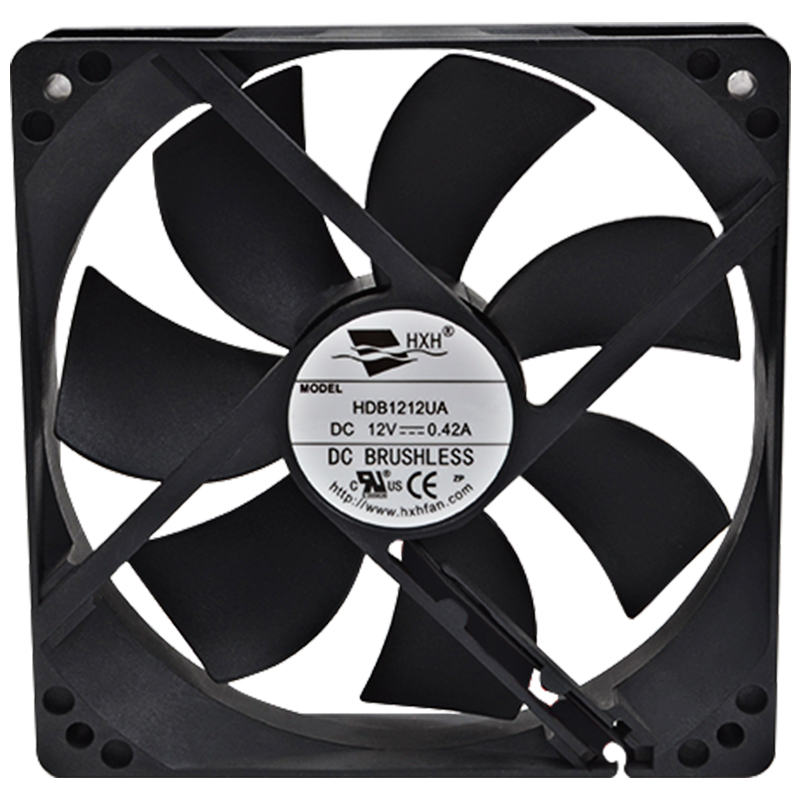

| HDB1212UA | -A | Ball | 5.0 | 0.42 | 5.04 | 2800 | 2.73 | 96.51 | 4.70 | 0.19 | 44.4 | |
| HDB1212HA | -A | 5.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | ||
| HDB1212MA | 5.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDB1212LA | 5.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| HDH1224HA | Hydraulic | 24 | 12.0 | 0.20 | 4.80 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | |
| HDH1224MA | 12.0 | 0.15 | 3.60 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDH1224LA | 12.0 | 0.12 | 2.88 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| HDB1224UA | -A | Ball | 12.0 | 0.30 | 7.20 | 2800 | 2.73 | 96.51 | 4.70 | 0.19 | 44.4 | |
| HDB1224HA | 12.0 | 0.20 | 4.80 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 39.0 | |||
| HDB1224MA | 12.0 | 0.15 | 3.60 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 35.5 | |||
| HDB1224LA | 12.0 | 0.12 | 2.88 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 32.7 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
