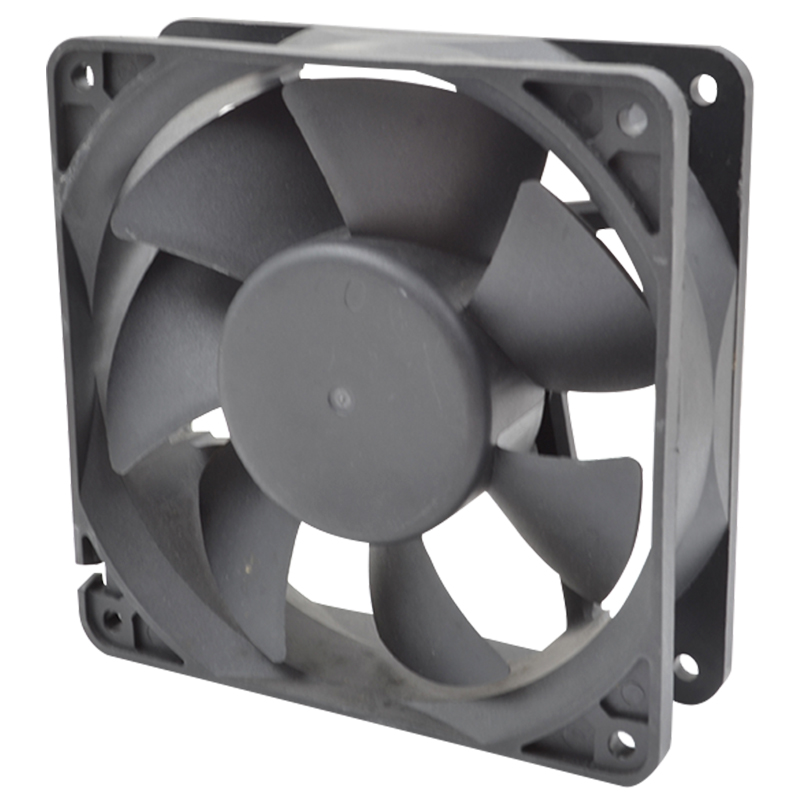

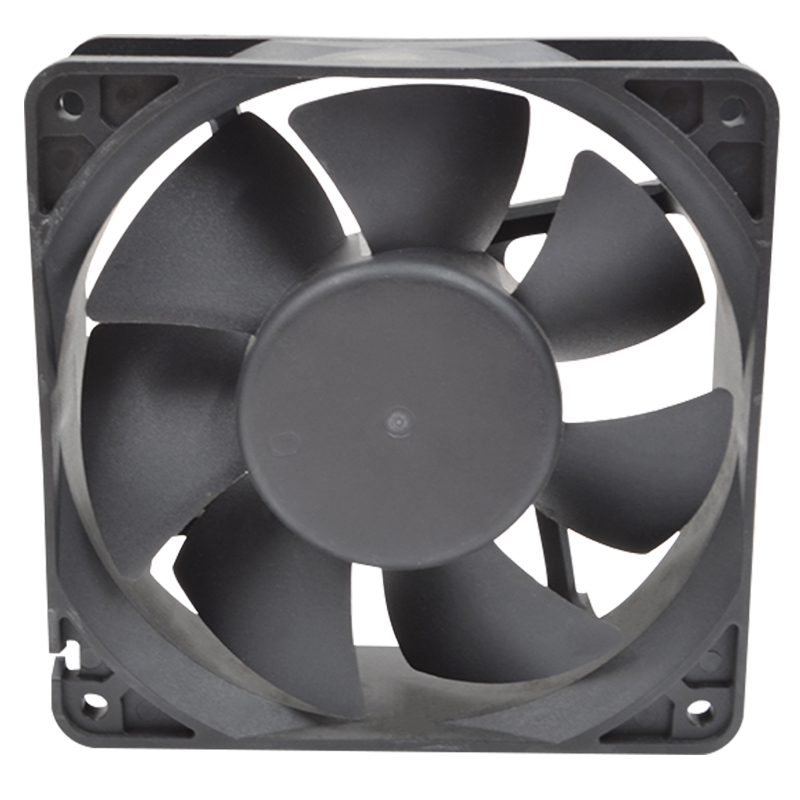

Product introduction:
| Size: | 120x120x38mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 120×120×38MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS1212HF-1 | -A | Sleeve | 12 | 5.0 | 0.70 | 8.40 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1212MF-1 | -A | 5.0 | 0.40 | 4.80 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1212LF-1 | 5.0 | 0.25 | 3.00 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDB1212UF-1 | -A | Ball | 5.0 | 0.80 | 9.60 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |
| HDB1212HF-1 | -A | 5.0 | 0.70 | 8.40 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1212MF-1 | -A | 5.0 | 0.40 | 4.80 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1212LF-1 | 5.0 | 0.25 | 3.00 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDS1224HF-1 | -A | Sleeve | 24 | 12.0 | 0.40 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1224MF-1 | -A | 12.0 | 0.30 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1224LF-1 | 12.0 | 0.20 | 4.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDB1224UF-1 | -A | Ball | 12.0 | 0.60 | 14.40 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |

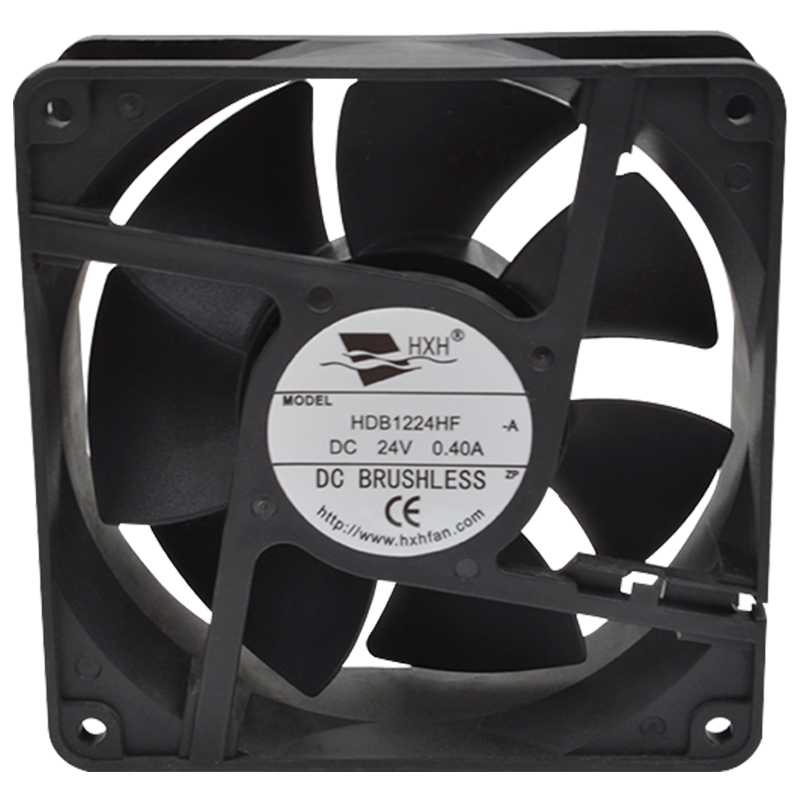

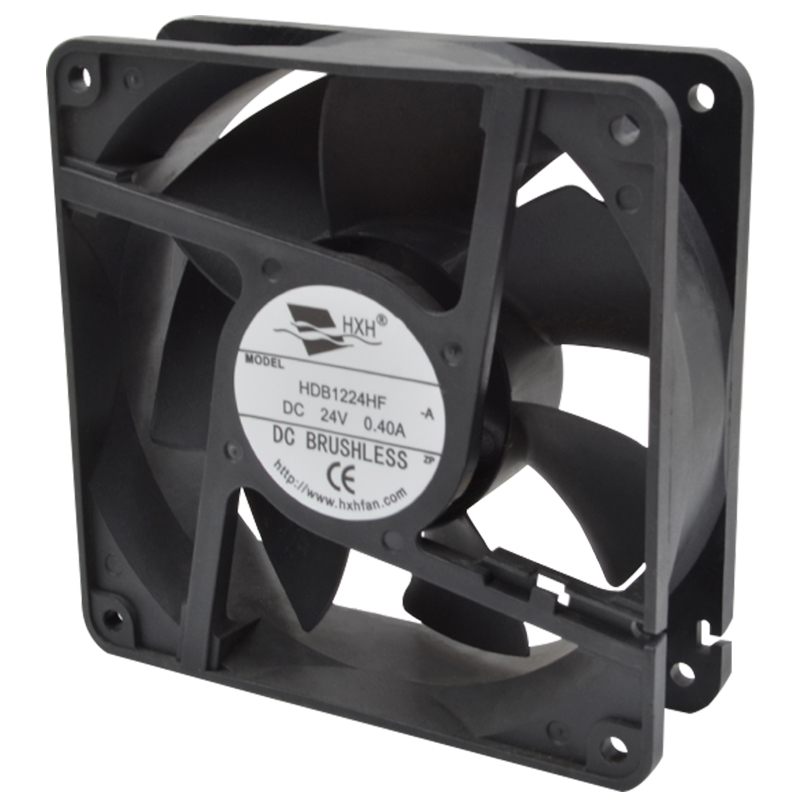

| HDB1224HF-1 | -A | 12.0 | 0.40 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1224MF-1 | -A | 12.0 | 0.30 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1224LF-1 | 12.0 | 0.20 | 4.80 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | |||
| HDS1248HF-1 | -A | Sleeve | 48 | 24.0 | 0.20 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 |
| HDS1248MF-1 | -A | 24.0 | 0.15 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDS1248LF-1 | -A | 24.0 | 0.13 | 6.24 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||
| HDB1248UF-1 | -A | Ball | 24.0 | 0.25 | 12.00 | 3500 | 4.22 | 149.12 | 14.44 | 0.57 | 50.1 | |
| HDB1248HF-1 | -A | 24.0 | 0.20 | 9.60 | 3000 | 3.53 | 124.89 | 10.75 | 0.42 | 45.0 | ||
| HDB1248MF-1 | -A | 24.0 | 0.15 | 7.20 | 2500 | 2.87 | 101.56 | 7.45 | 0.29 | 40.3 | ||
| HDB1248LF-1 | -A | 24.0 | 0.13 | 6.24 | 2000 | 2.27 | 80.12 | 4.95 | 0.19 | 34.8 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
