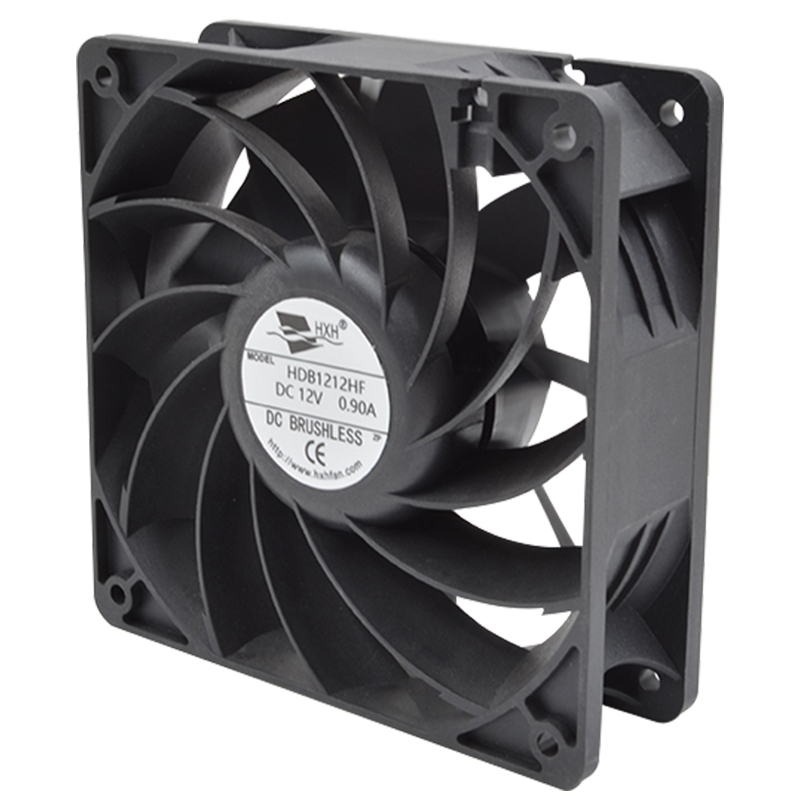

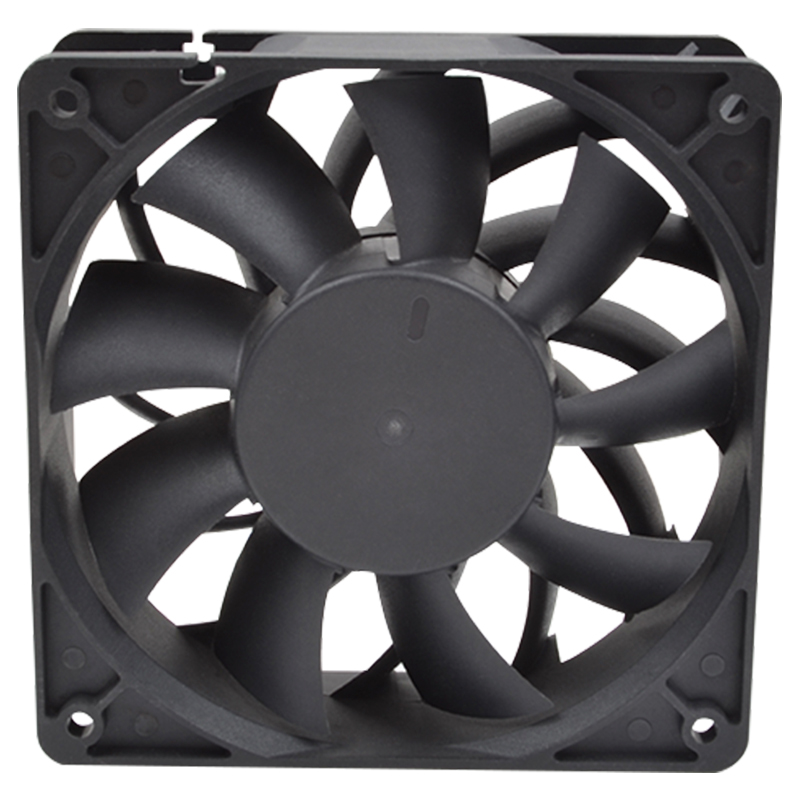

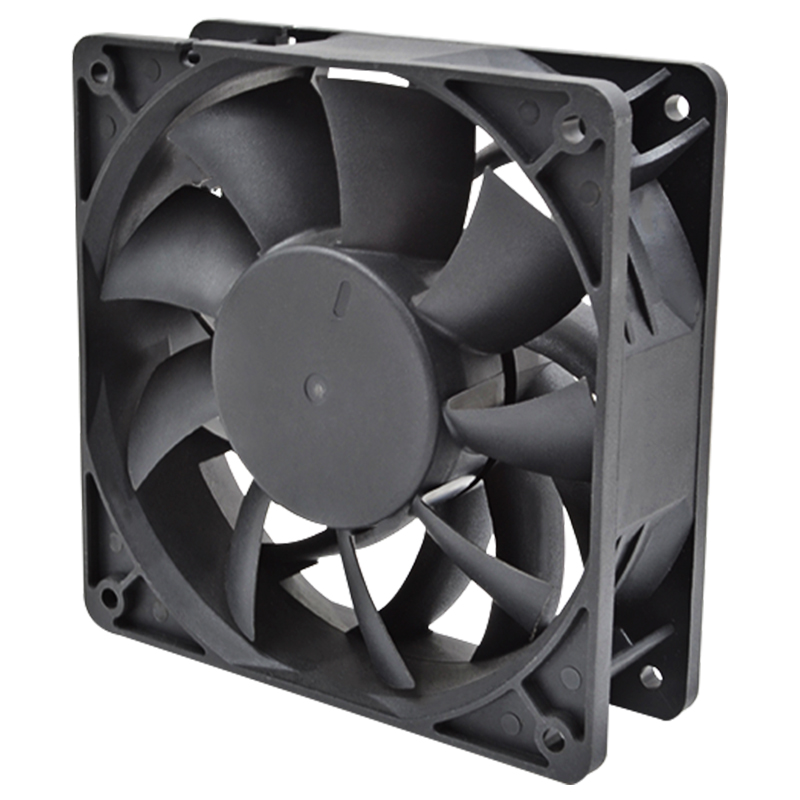

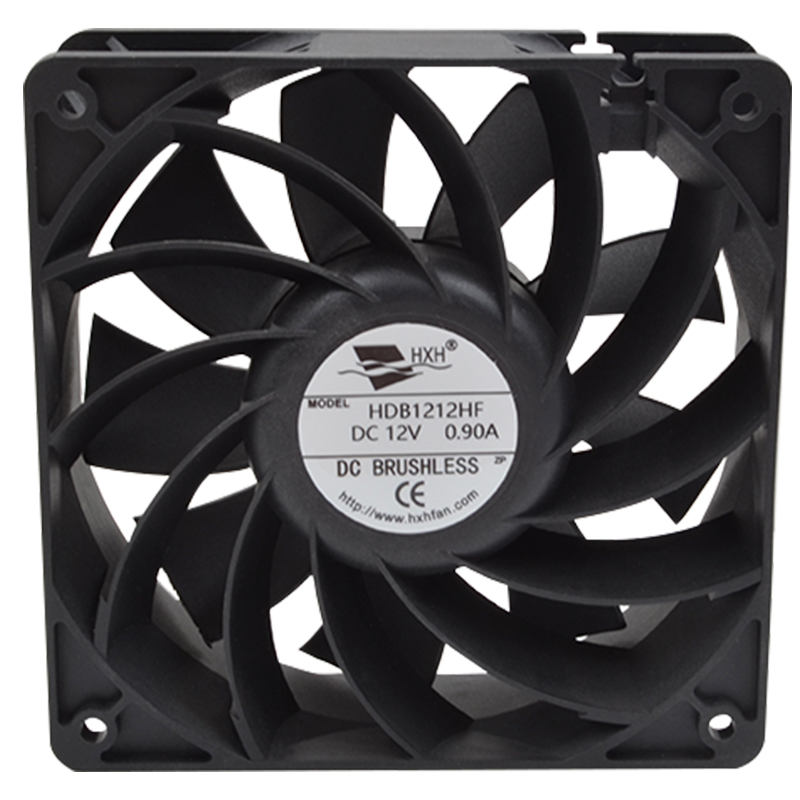

Product introduction:
| Size: | 120x120x38mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Oil bearing Double ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

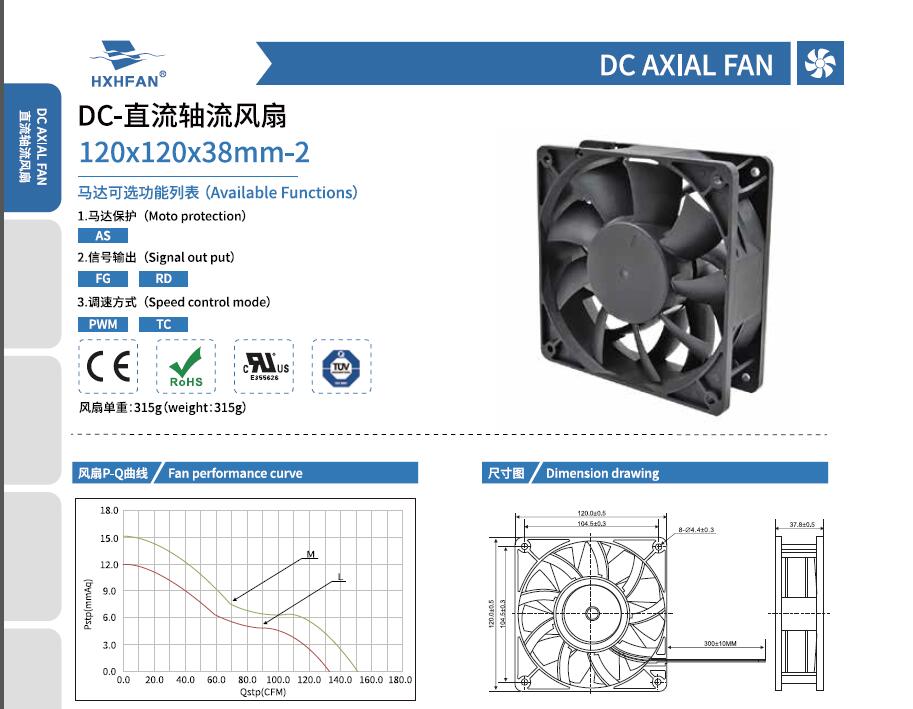

| 120×120×38MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212MF-2 | -A | Ball | 12 | 5.0 | 1.50 | 18.00 | 3600 | 4.27 | 150.78 | 14.97 | 0.59 | 57.7 |
| HDB1212LF-2 | -A | 5.0 | 1.20 | 14.40 | 3200 | 3.78 | 133.43 | 11.93 | 0.47 | 53.9 | ||
| HDB1224MF-2 | -A | Ball | 24 | 12.0 | 0.78 | 18.72 | 3600 | 4.27 | 150.78 | 14.97 | 0.59 | 57.7 |
| HDB1224LF-2 | -A | 12.0 | 0.56 | 13.44 | 3200 | 3.78 | 133.43 | 11.93 | 0.47 | 53.9 | ||
| HDB1248MF-2 | -A | Ball | 48 | 24.0 | 0.38 | 18.24 | 3600 | 4.27 | 150.78 | 14.97 | 0.59 | 57.7 |
| HDB1248LF-2 | -A | 24.0 | 0.28 | 13.44 | 3200 | 3.78 | 133.43 | 11.93 | 0.47 | 53.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
