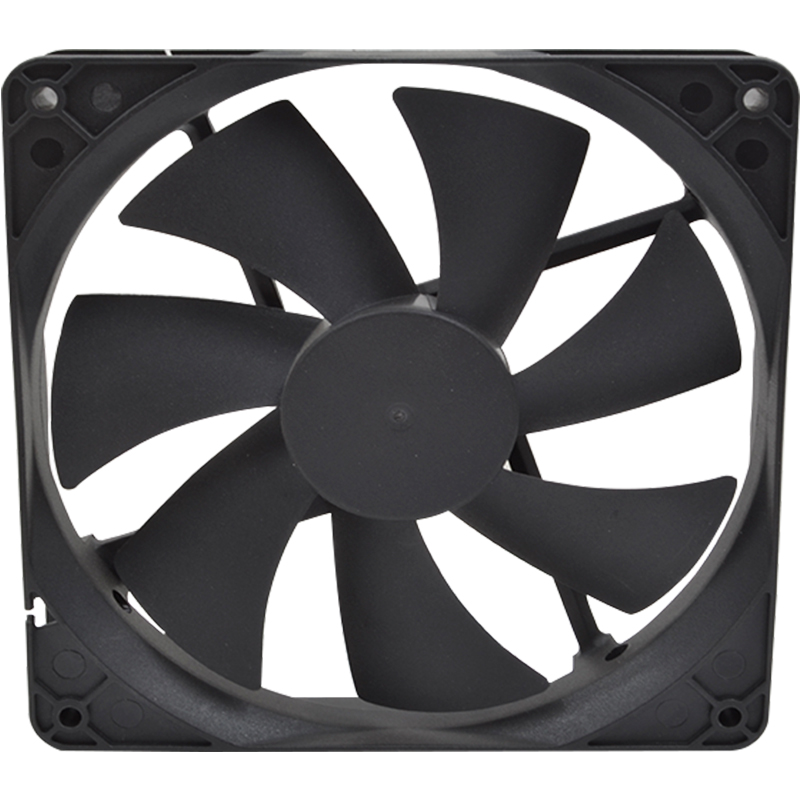

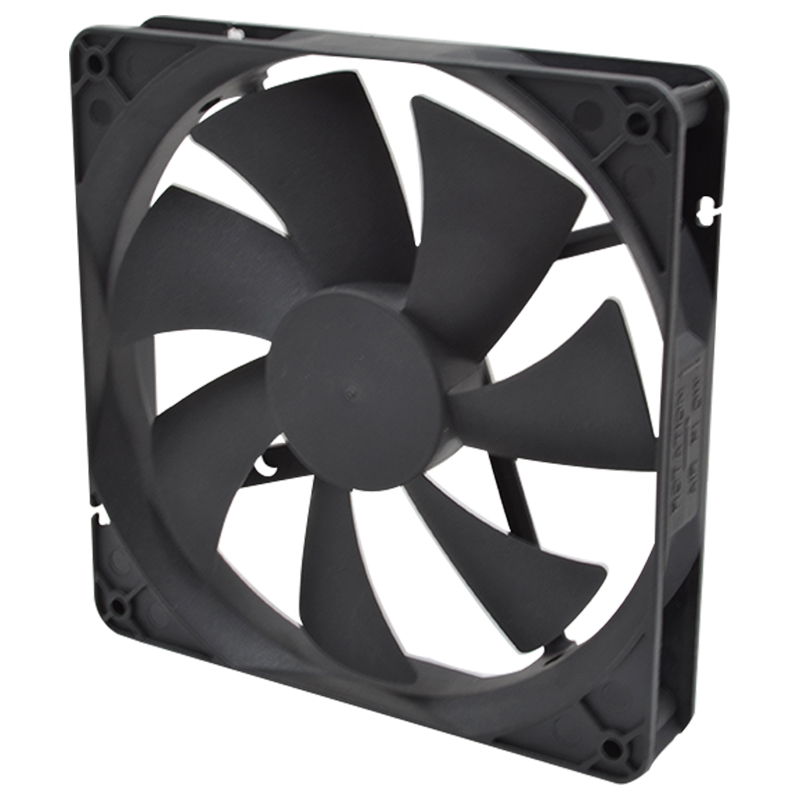

Product introduction:
| Size: | 140x140x25mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 140×140×25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS1412HA | Sleeve | 12 | 5.0 | 0.68 | 8.16 | 2500 | 2.81 | 99.24 | 3.51 | 0.14 | 41.0 | |
| HDS1412MA | 5.0 | 0.39 | 4.68 | 2000 | 2.25 | 79.39 | 2.25 | 0.09 | 35.7 | |||
| HDS1412LA | 5.0 | 0.19 | 2.28 | 1500 | 1.80 | 63.51 | 1.44 | 0.06 | 31.0 | |||

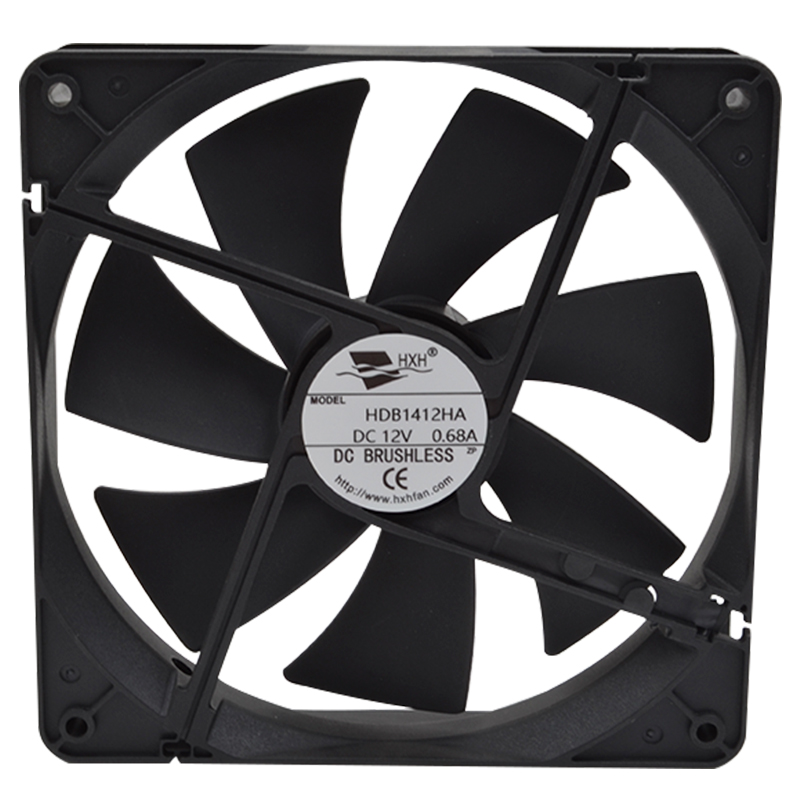

| HDB1412HA | Ball | 5.0 | 0.68 | 8.16 | 2500 | 2.81 | 99.24 | 3.51 | 0.14 | 41.0 | ||
| HDB1412MA | 5.0 | 0.39 | 4.68 | 2000 | 2.25 | 79.39 | 2.25 | 0.09 | 35.7 | |||
| HDB1412LA | 5.0 | 0.19 | 2.28 | 1500 | 1.80 | 63.51 | 1.44 | 0.06 | 31.0 | |||
| HDS1424HA | Sleeve | 24 | 12.0 | 0.33 | 7.92 | 2500 | 2.81 | 99.24 | 3.51 | 0.14 | 41.0 | |
| HDS1424MA | 12.0 | 0.18 | 4.32 | 2000 | 2.25 | 79.39 | 2.25 | 0.09 | 35.7 | |||
| HDS1424LA | 12.0 | 0.11 | 2.64 | 1500 | 1.80 | 63.51 | 1.44 | 0.06 | 31.0 | |||
| HDB1424HA | Ball | 12.0 | 0.33 | 7.92 | 2500 | 2.81 | 99.24 | 3.51 | 0.14 | 41.0 | ||
| HDB1424MA | 12.0 | 0.18 | 4.32 | 2000 | 2.25 | 79.39 | 2.25 | 0.09 | 35.7 | |||
| HDB1424LA | 12.0 | 0.11 | 2.64 | 1500 | 1.80 | 63.51 | 1.44 | 0.06 | 31.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
