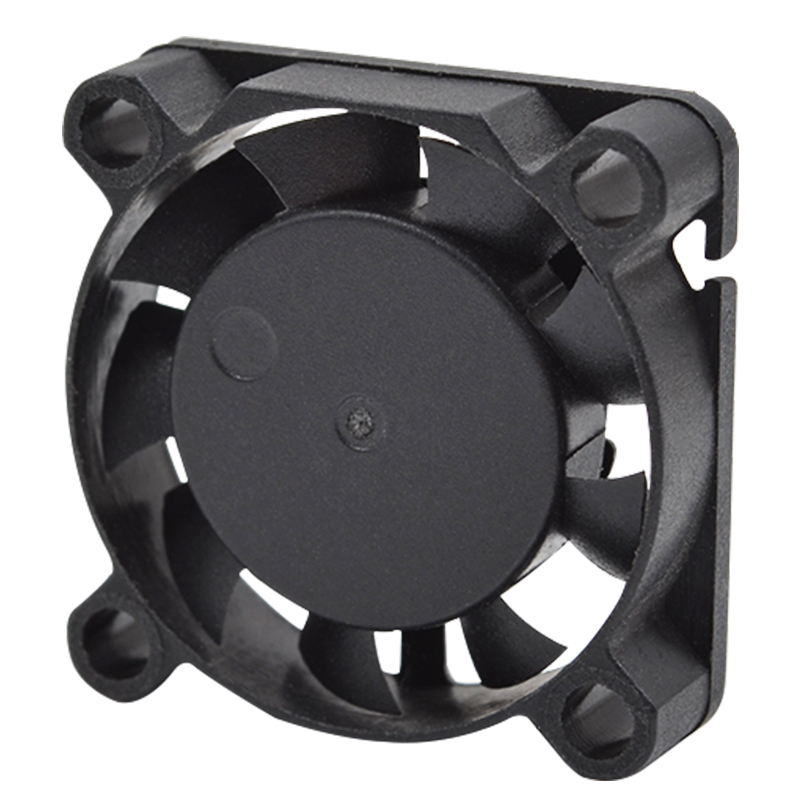

Product introduction:
| Size: | 25x25x10mm-1 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours, 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

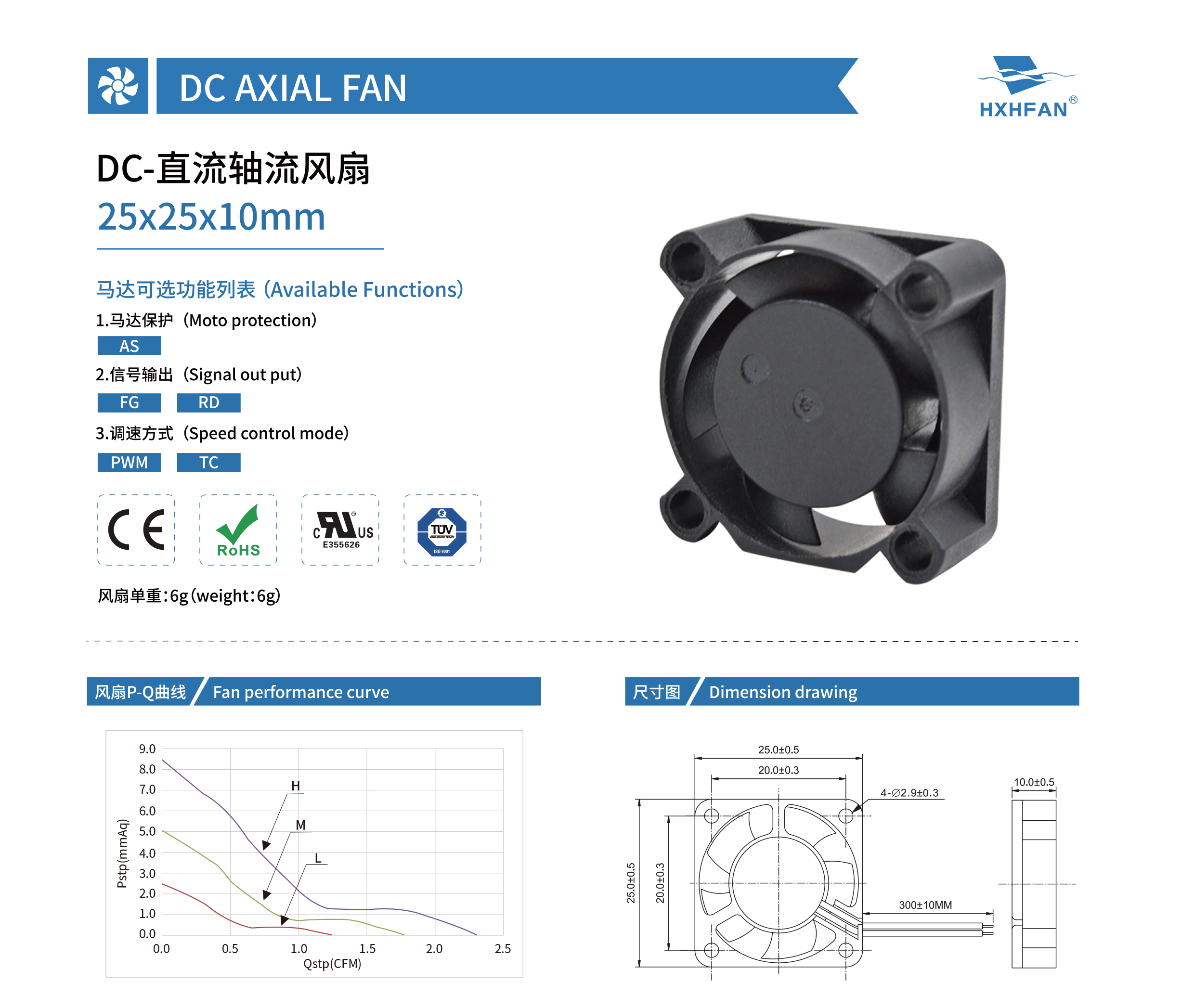

| 25*25*10MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH2505HG-1 | Hydraulic | 5 | 4.0 | 0.18 | 0.90 | 13000 | 0.07 | 2.30 | 8.48 | 0.33 | 27.4 | |
| HDH2505MG-1 | 4.0 | 0.12 | 0.60 | 10000 | 0.05 | 1.77 | 5.02 | 0.20 | 21.7 | |||
| HDH2505LG-1 | 4.0 | 0.10 | 0.50 | 7000 | 0.04 | 1.24 | 2.46 | 0.10 | 14.0 | |||
| HDB2505HG-1 | Ball | 4.0 | 0.18 | 0.90 | 13000 | 0.07 | 2.30 | 8.48 | 0.33 | 27.4 | ||
| HDB2505MG-1 | 4.0 | 0.12 | 0.60 | 10000 | 0.05 | 1.77 | 5.02 | 0.20 | 21.7 | |||
| HDB2505LG-1 | 4.0 | 0.10 | 0.50 | 7000 | 0.04 | 1.24 | 2.46 | 0.10 | 14.0 | |||
| HDH2512HG-1 | Hydraulic | 12 | 7.0 | 0.14 | 1.68 | 13000 | 0.07 | 2.30 | 8.48 | 0.33 | 27.4 | |
| HDH2512MG-1 | 7.0 | 0.08 | 0.96 | 10000 | 0.05 | 1.77 | 5.02 | 0.20 | 21.7 | |||
| HDH2512LG-1 | 9.0 | 0.06 | 0.72 | 7000 | 0.04 | 1.24 | 2.46 | 0.10 | 14.0 | |||
| HDB2512HG-1 | Ball | 7.0 | 0.14 | 1.68 | 13000 | 0.07 | 2.30 | 8.48 | 0.33 | 27.4 | ||
| HDB2512MG-1 | 7.0 | 0.08 | 0.96 | 10000 | 0.05 | 1.77 | 5.02 | 0.20 | 21.7 | |||
| HDB2512LG-1 | 9.0 | 0.06 | 0.72 | 7000 | 0.04 | 1.24 | 2.46 | 0.10 | 14.0 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
