Product introduction:

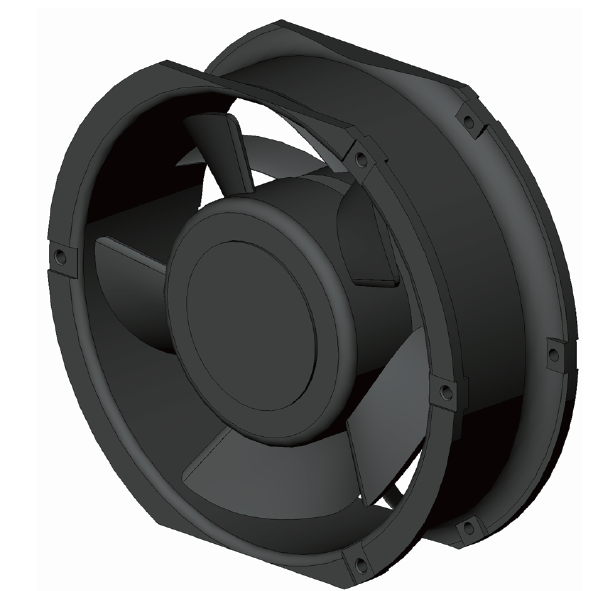

| Size: | 172x150x51mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 12V 24V 48V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

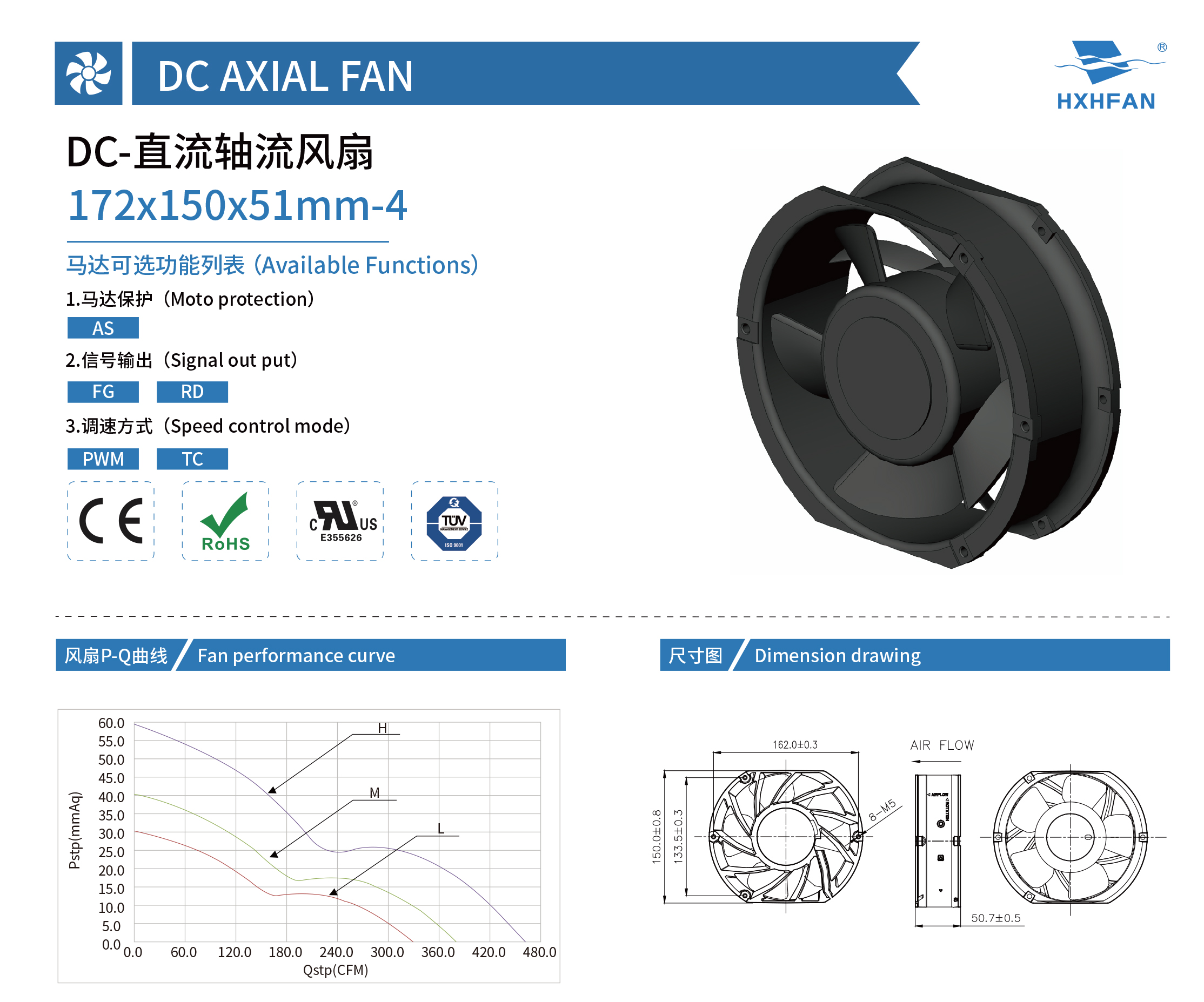

| 172×150×51MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB17224HU-4 | -A | Ball | 24 | 18.0 | 4.60 | 110.40 | 6300 | 13.07 | 461.90 | 59.40 | 2.34 | 72.7 |
| HDB17224MU-4 | -A | Ball | 18.0 | 2.59 | 62.16 | 5200 | 10.78 | 381.00 | 40.50 | 1.59 | 68.5 | |
| HDB17224LU-4 | -A | Ball | 18.0 | 1.68 | 40.32 | 4500 | 9.34 | 329.90 | 30.30 | 1.19 | 65.4 | |
| HDB17248HU-4 | -A | Ball | 48 | 24.0 | 2.30 | 110.40 | 6300 | 13.07 | 461.90 | 59.40 | 2.34 | 72.7 |
| HDB17248MU-4 | -A | Ball | 24.0 | 1.30 | 62.40 | 5200 | 10.78 | 381.00 | 40.50 | 1.59 | 68.5 | |
| HDB17248LU-4 | -A | Ball | 24.0 | 0.84 | 40.32 | 4500 | 9.34 | 329.90 | 30.30 | 1.19 | 65.4 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
