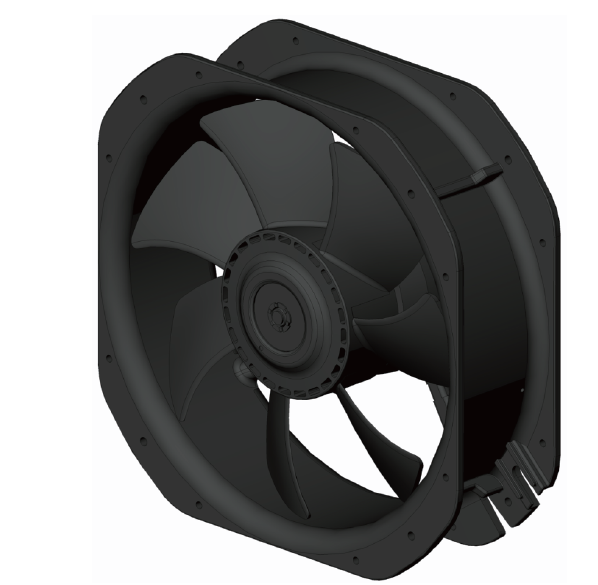

| Size: | 280x280x80mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 110V 220V |
| Bearing structure: | Ball bearing |
| Product life: | 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

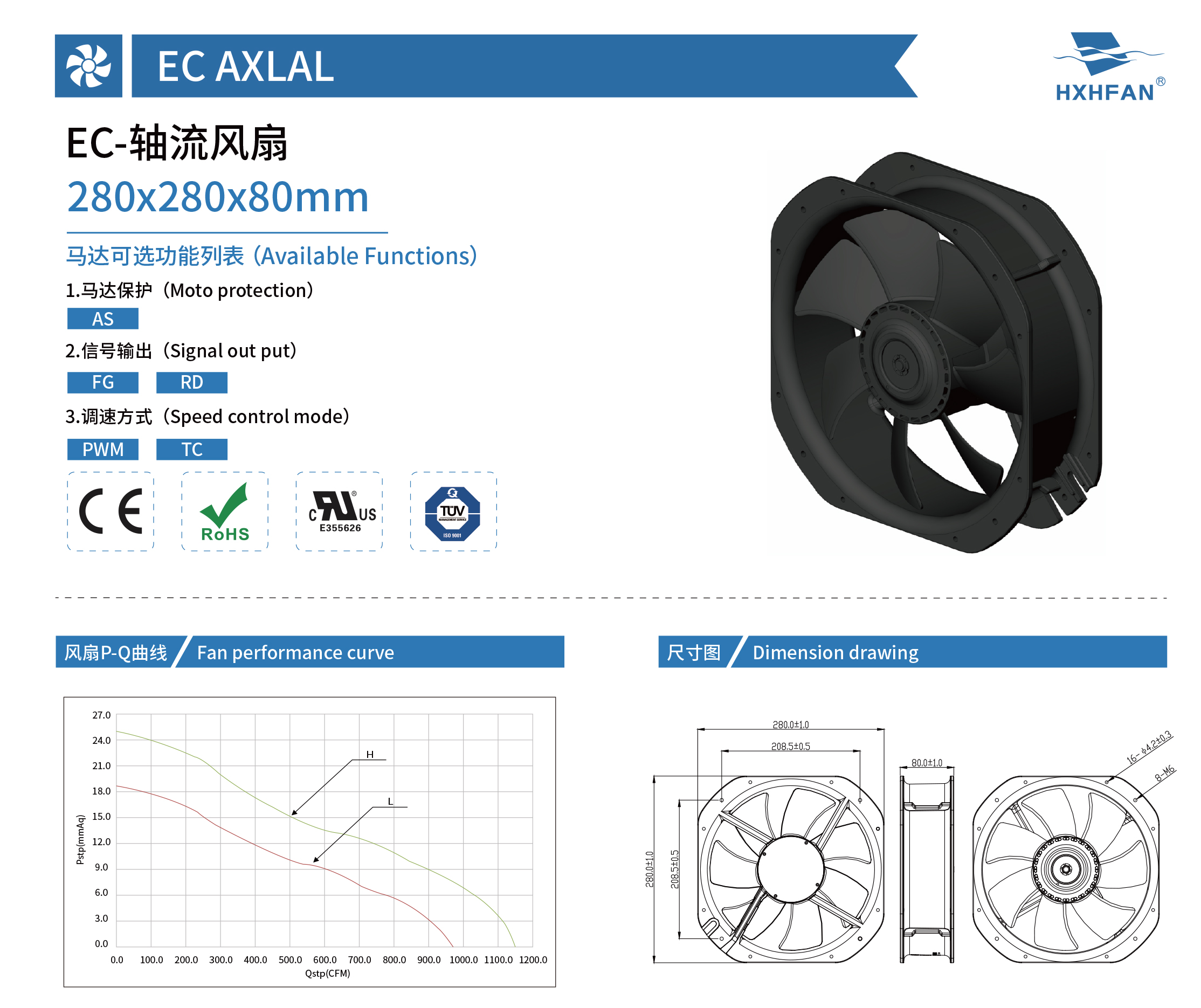

| 280×280×80MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB280230H80 | -A | Ball | 110-230 | 90-260 | 50/60 | 144.70 | 3200 | 32.57 | 1151.00 | 24.90 | 0.98 | 68.5 |
| HEB280230L80 | -A | 90-260 | 50/60 | 86.90 | 2700 | 27.48 | 971.20 | 18.70 | 0.74 | 65.0 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
