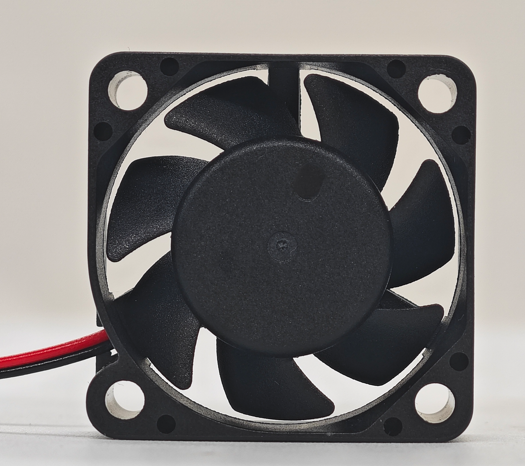

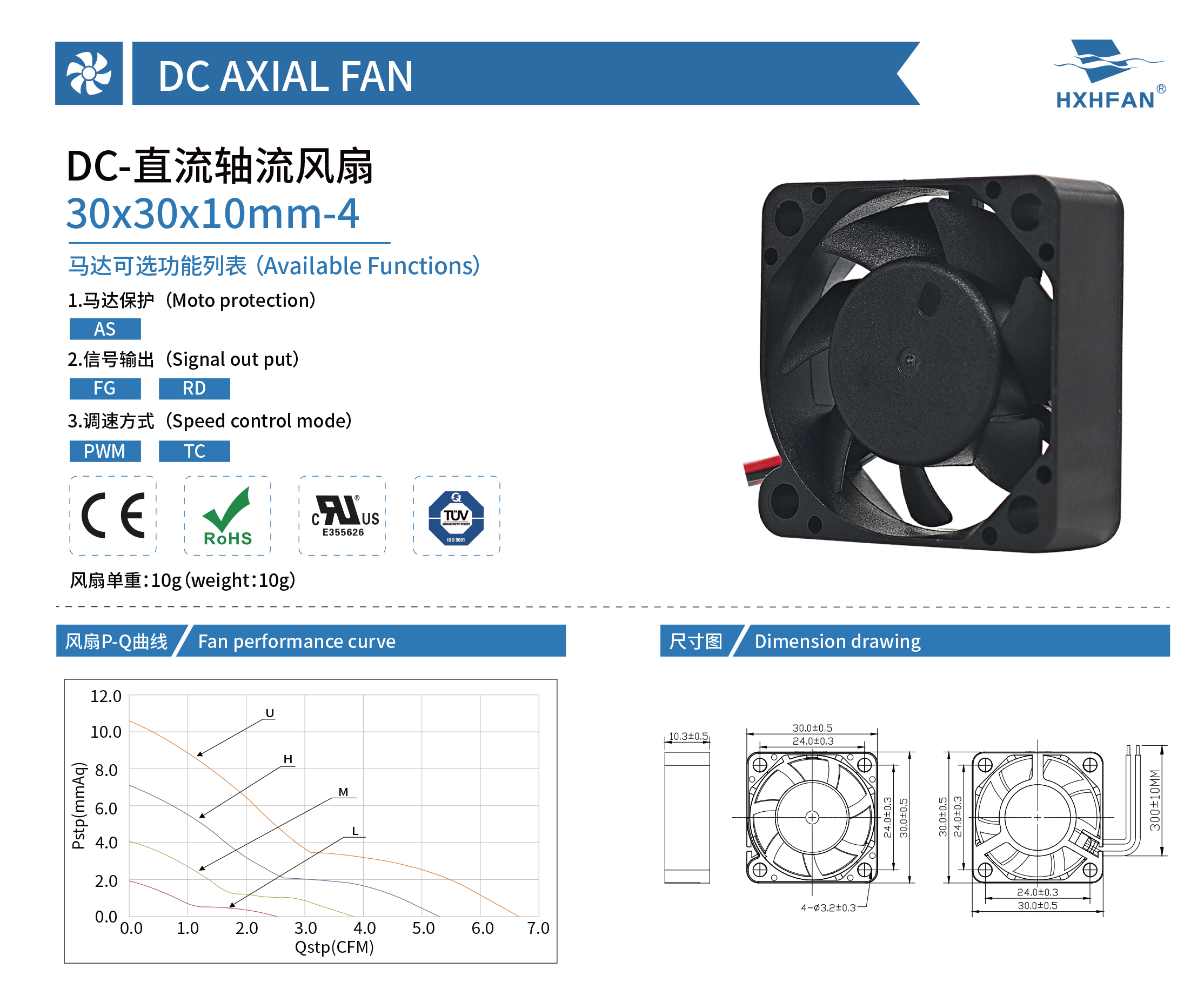

Product introduction:
| Size: | 30x30x10mm-4 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24v |
| Bearing structure: | Hydraulic Bearing Double Ball Bearing |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |
| 30×30×10MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0305HG-4 | Hydraulic | 5 | 4.0 | 0.30 | 1.50 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | |
| HDH0305MG-4 | 4.0 | 0.18 | 0.90 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDH0305LG-4 | 4.0 | 0.12 | 0.60 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||
| HDB0305HG-4 | Ball | 4.0 | 0.30 | 1.50 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | ||
| HDB0305MG-4 | 4.0 | 0.18 | 0.90 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDB0305LG-4 | 4.0 | 0.12 | 0.60 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||
| HDH0312HG-4 | Hydraulic | 12 | 9.0 | 0.10 | 1.20 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | |
| HDH0312MG-4 | 9.0 | 0.08 | 0.96 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDH0312LG-4 | 9.0 | 0.06 | 0.72 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||
| HDB0312UG-4 | Ball | 9.0 | 0.21 | 1.56 | 15000 | 0.19 | 6.64 | 10.62 | 0.42 | 41.8 | ||
| HDB0312HG-4 | 9.0 | 0.10 | 1.20 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | |||
| HDB0312MG-4 | 9.0 | 0.08 | 0.96 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDB0312LG-4 | 9.0 | 0.06 | 0.72 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||
| HDH0324HG-4 | Hydraulic | 24 | 12.0 | 0.07 | 1.68 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | |
| HDH0324MG-4 | 12.0 | 0.06 | 1.44 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDH0324LG-4 | 12.0 | 0.04 | 0.96 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||

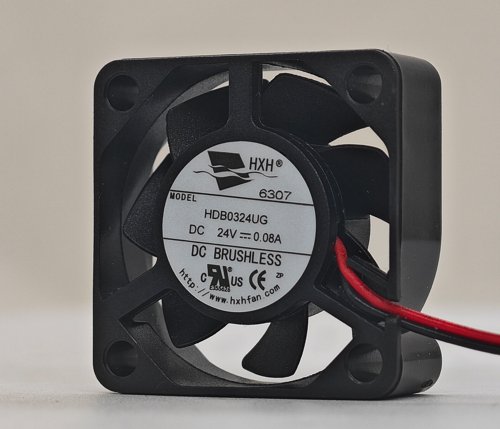

| HDB0324UG-4 | Ball | 12.0 | 0.08 | 1.92 | 15000 | 0.19 | 6.64 | 10.62 | 0.42 | 41.8 | ||
| HDB0324HG-4 | 12.0 | 0.07 | 1.68 | 12000 | 0.15 | 5.29 | 7.11 | 0.28 | 37.4 | |||
| HDB0324MG-4 | 12.0 | 0.06 | 1.44 | 9000 | 0.11 | 3.85 | 4.07 | 0.16 | 28.8 | |||
| HDB0324LG-4 | 12.0 | 0.04 | 0.96 | 6000 | 0.07 | 2.52 | 1.95 | 0.08 | 21.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
