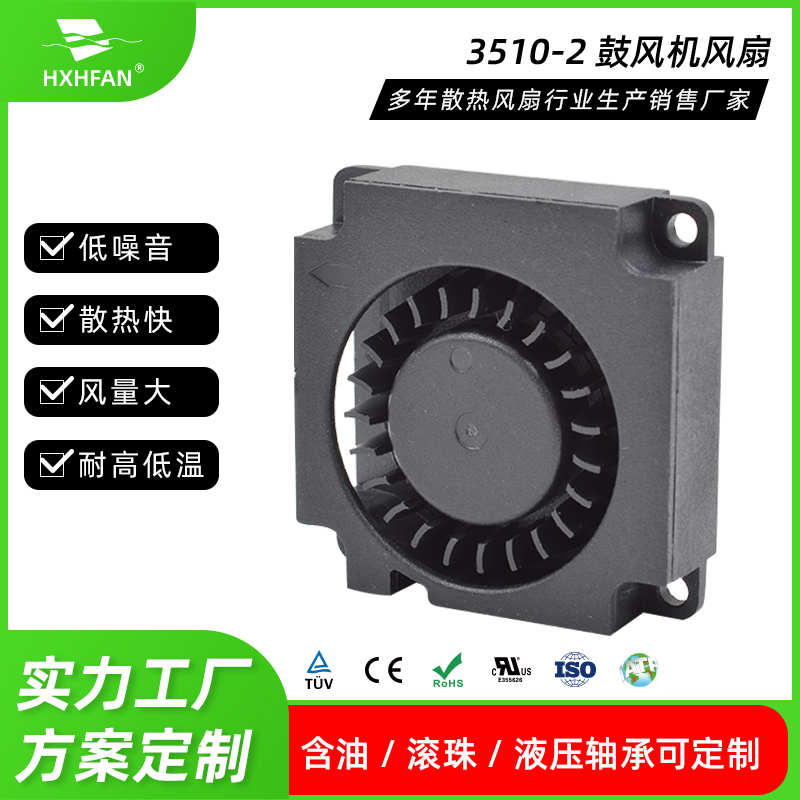

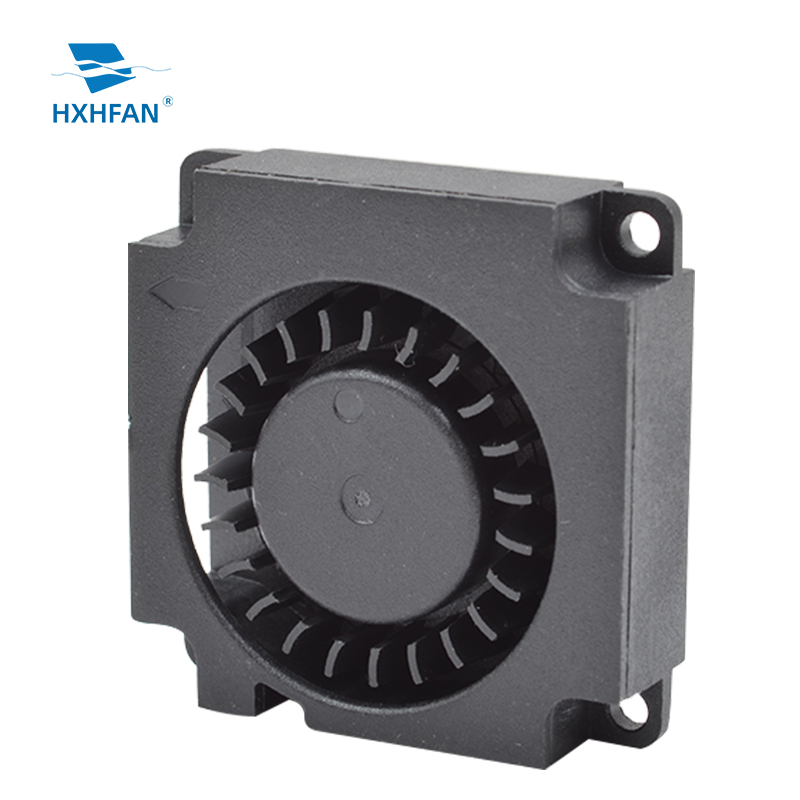

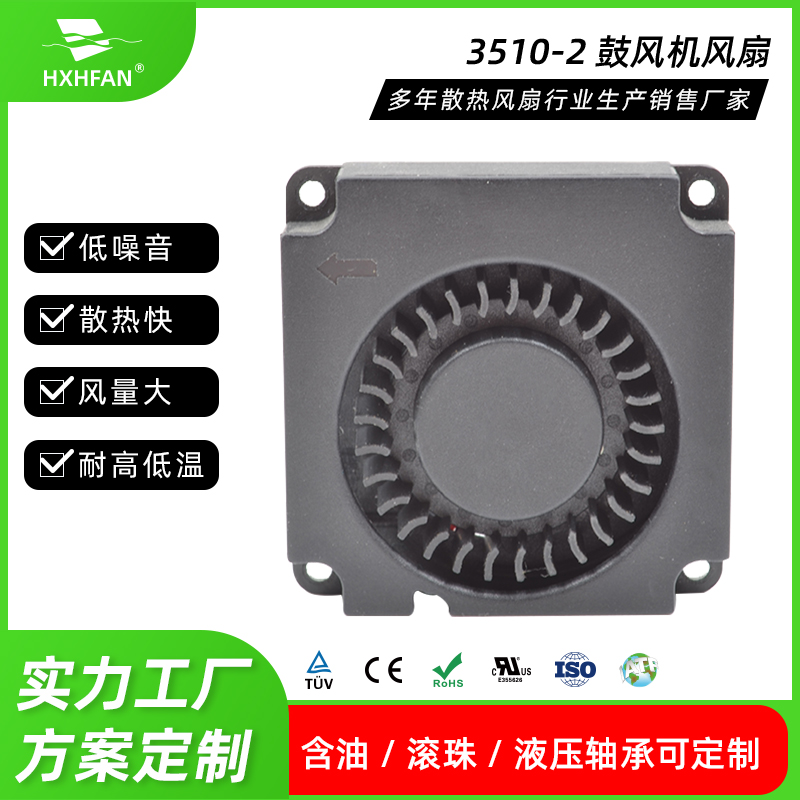

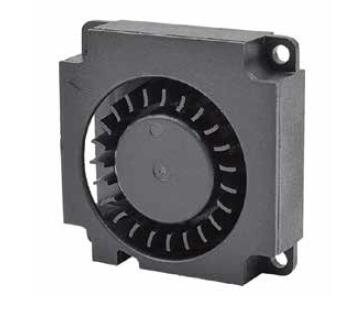

Product introduction:
| Size: | 35x35x10mm-2 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Two ball bearings |
| Product life: | 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

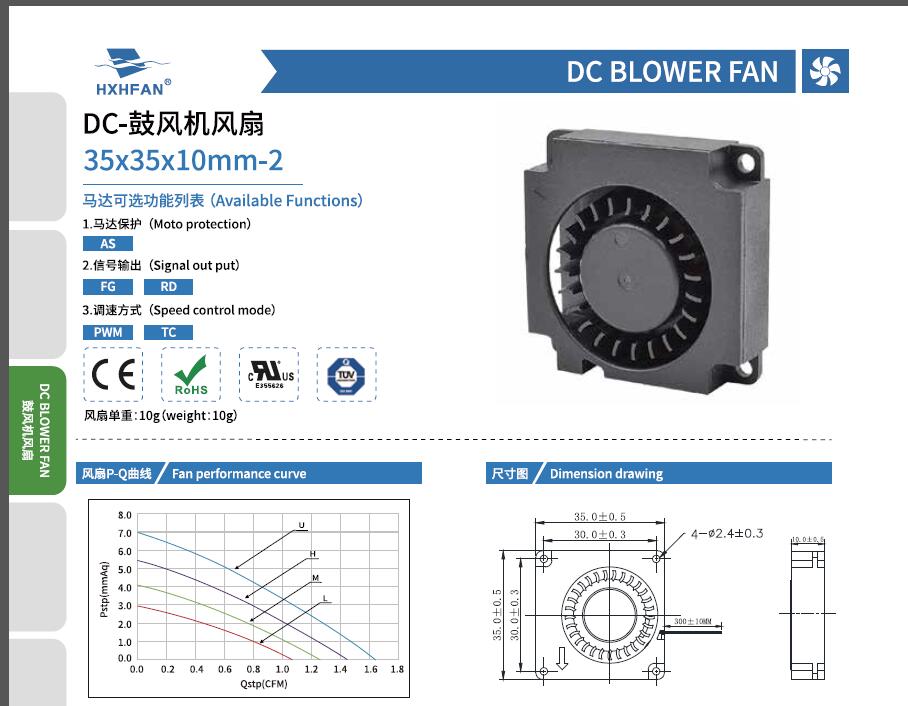

| 35×35×10MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH3505UG-2 | Hydraulic | 5 | 4.0 | 0.15 | 0.75 | 8500 | 0.05 | 1.63 | 6.92 | 0.27 | 32.1 | |
| HBH3505HG-2 | 4.0 | 0.11 | 0.55 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |||
| HBH3505MG-2 | 4.0 | 0.08 | 0.40 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBH3505LG-2 | 4.0 | 0.05 | 0.25 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||
| HBB3505UG-2 | Ball | 4.0 | 0.15 | 0.75 | 8500 | 0.05 | 1.63 | 6.92 | 0.27 | 32.1 | ||
| HBB3505HG-2 | 4.0 | 0.11 | 0.55 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |||
| HBB3505MG-2 | 4.0 | 0.08 | 0.40 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBB3505LG-2 | 4.0 | 0.05 | 0.25 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||
| HBH3512UG-2 | Hydraulic | 12 | 6.0 | 0.08 | 0.96 | 8500 | 0.05 | 1.63 | 6.92 | 0.27 | 32.1 | |
| HBH3512HG-2 | 6.0 | 0.07 | 0.84 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |||
| HBH3512MG-2 | 6.0 | 0.06 | 0.72 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBH3512LG-2 | 6.0 | 0.05 | 0.60 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||
| HBB3512UG-2 | Ball | 6.0 | 0.08 | 0.96 | 8500 | 0.05 | 1.63 | 6.92 | 0.27 | 32.1 | ||
| HBB3512HG-2 | 6.0 | 0.07 | 0.84 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |||
| HBB3512MG-2 | 6.0 | 0.06 | 0.72 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBB3512LG-2 | 6.0 | 0.05 | 0.60 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||
| HBH3524HG-2 | Hydraulic | 24 | 6.0 | 0.08 | 1.92 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |
| HBH3524MG-2 | 6.0 | 0.06 | 1.44 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBH3524LG-2 | 6.0 | 0.05 | 1.20 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||

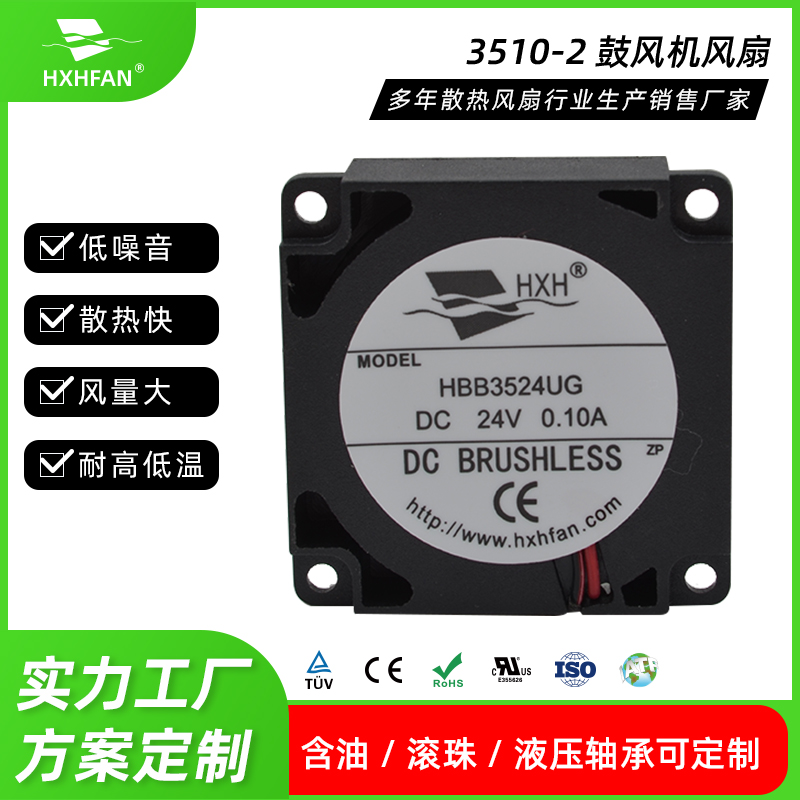

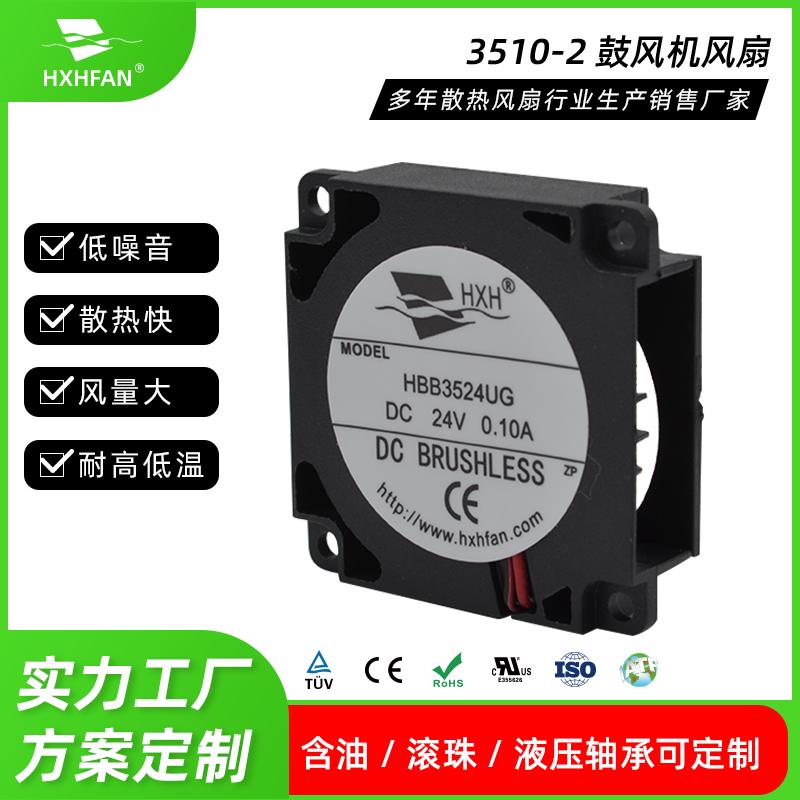

| HBB3524UG-2 | Ball | 6.0 | 0.10 | 2.40 | 8500 | 0.05 | 1.63 | 6.92 | 0.27 | 32.1 | ||
| HBB3524HG-2 | 6.0 | 0.08 | 1.92 | 7500 | 0.04 | 1.44 | 5.39 | 0.21 | 29.4 | |||
| HBB3524MG-2 | 6.0 | 0.06 | 1.44 | 6500 | 0.04 | 1.25 | 4.05 | 0.16 | 26.3 | |||
| HBB3524LG-2 | 6.0 | 0.05 | 1.20 | 5500 | 0.03 | 1.05 | 2.90 | 0.11 | 22.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
