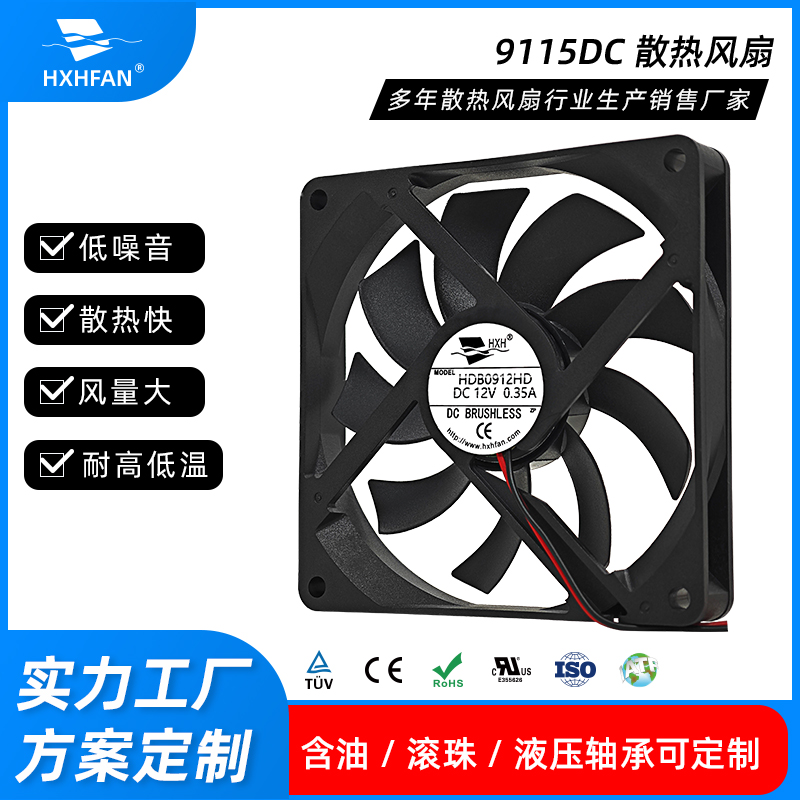

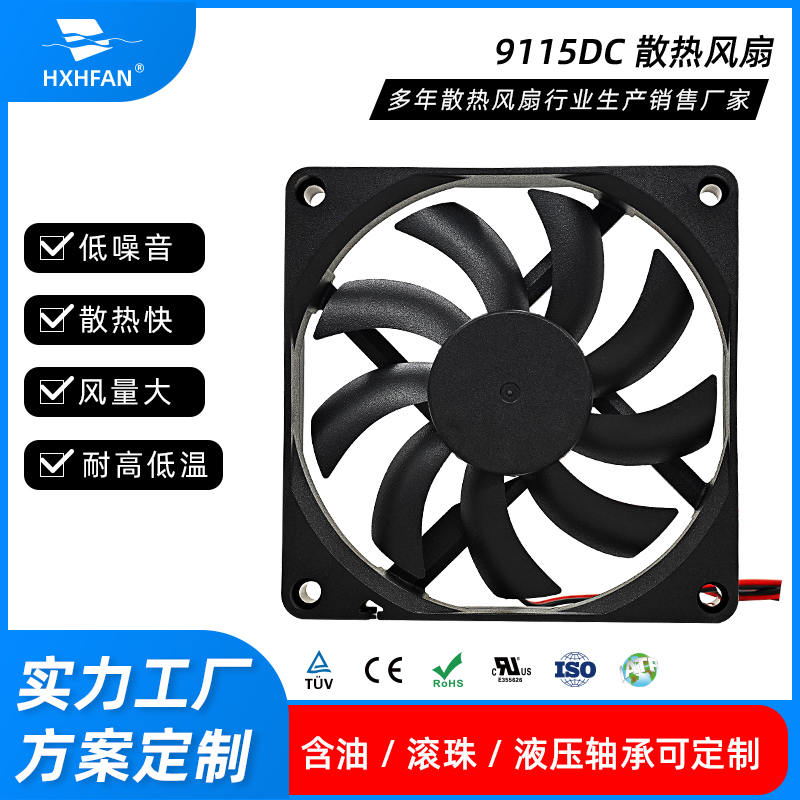

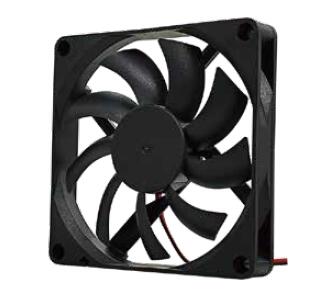

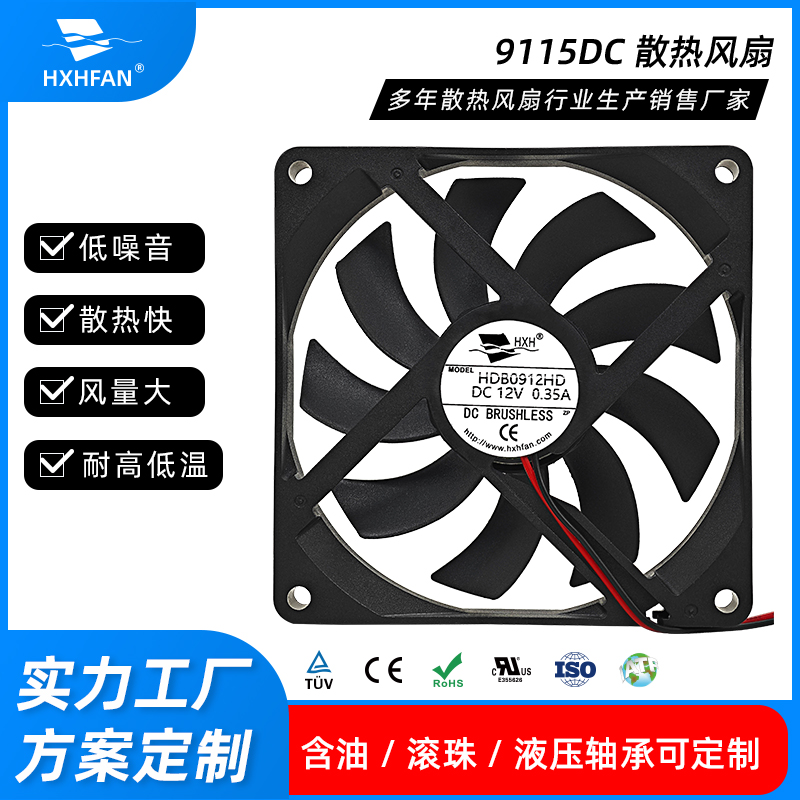

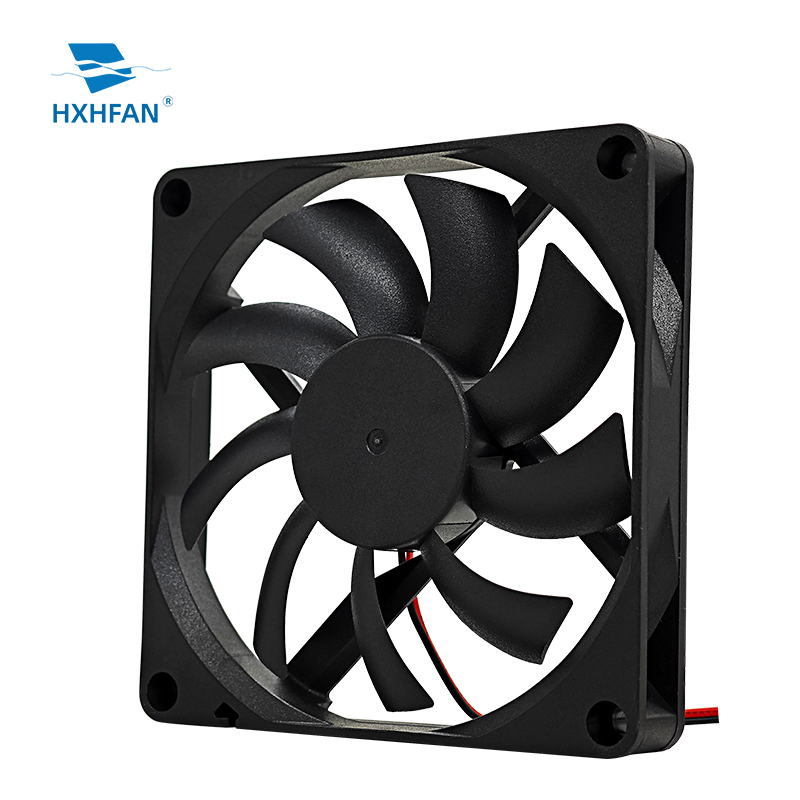

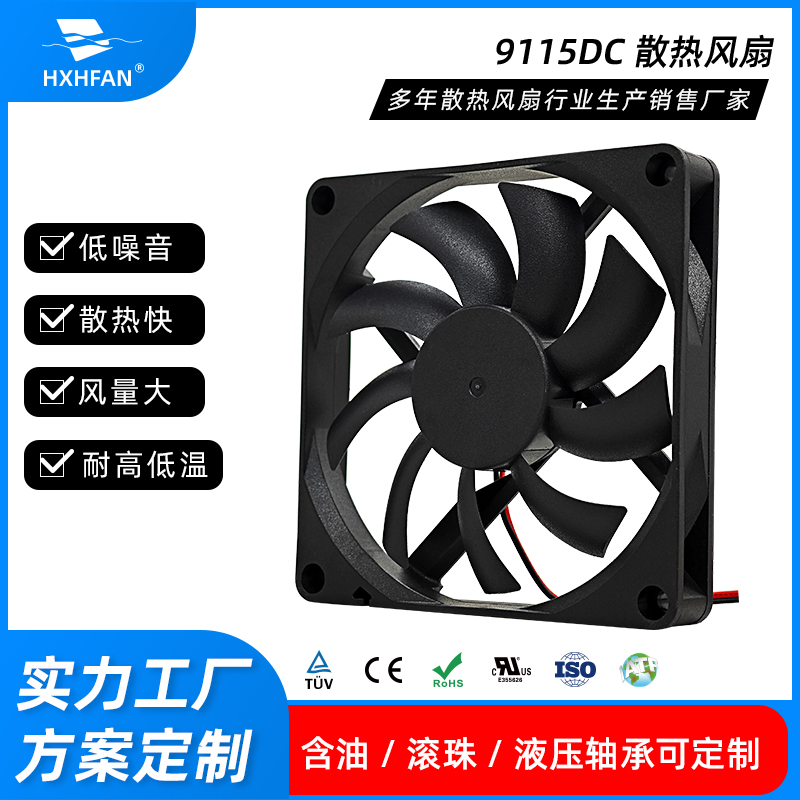

Product introduction:
| Size: | 91x91x15mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

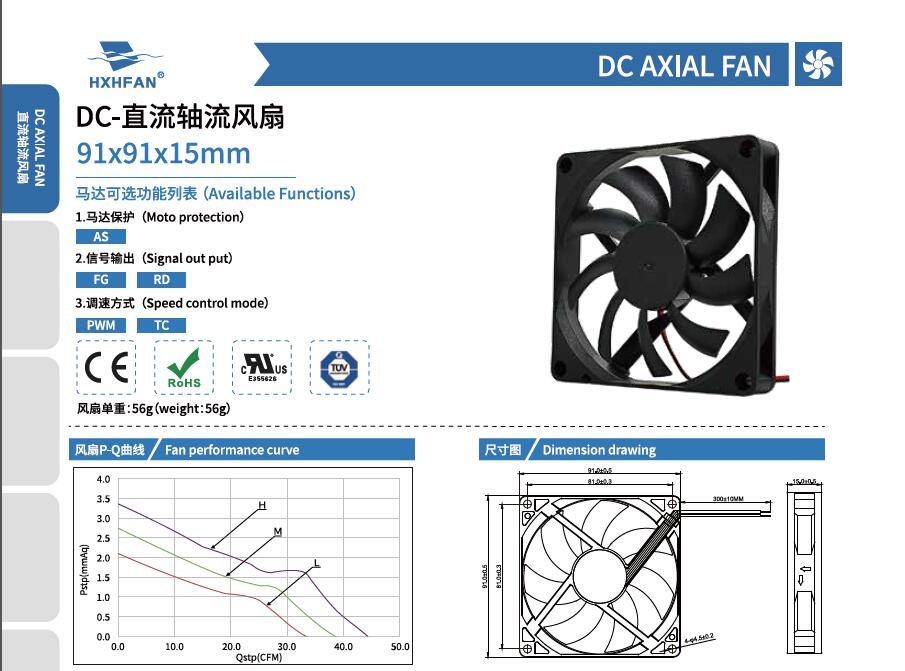

| 91×91×15MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS9112HD | Sleeve | 12 | 5.0 | 0.35 | 4.20 | 3500 | 1.25 | 44.21 | 3.35 | 0.13 | 38.9 | |
| HDS9112MD | 5.0 | 0.30 | 3.60 | 3000 | 1.09 | 38.50 | 2.73 | 0.11 | 34.6 | |||
| HDS9112LD | 5.0 | 0.25 | 3.00 | 2500 | 0.94 | 33.17 | 2.11 | 0.08 | 30.4 | |||
| HDB9112HD | Ball | 5.0 | 0.35 | 4.20 | 3500 | 1.25 | 44.21 | 3.35 | 0.13 | 38.9 | ||
| HDB9112MD | 5.0 | 0.30 | 3.60 | 3000 | 1.09 | 38.50 | 2.73 | 0.11 | 34.6 | |||
| HDB9112LD | 5.0 | 0.25 | 3.00 | 2500 | 0.94 | 33.17 | 2.11 | 0.08 | 30.4 | |||
| HDS9124HD | Sleeve | 24 | 12.0 | 0.18 | 4.32 | 3500 | 1.25 | 44.21 | 3.35 | 0.13 | 38.9 | |
| HDS9124MD | 12.0 | 0.12 | 2.88 | 3000 | 1.09 | 38.50 | 2.73 | 0.11 | 34.6 | |||
| HDS9124LD | 12.0 | 0.10 | 2.40 | 2500 | 0.94 | 33.17 | 2.11 | 0.08 | 30.4 | |||
| HDB9124HD | Ball | 12.0 | 0.18 | 4.32 | 3500 | 1.25 | 44.21 | 3.35 | 0.13 | 38.9 | ||
| HDB9124MD | 12.0 | 0.12 | 2.88 | 3000 | 1.09 | 38.50 | 2.73 | 0.11 | 34.6 | |||
| HDB9124LD | 12.0 | 0.10 | 2.40 | 2500 | 0.94 | 33.17 | 2.11 | 0.08 | 30.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
