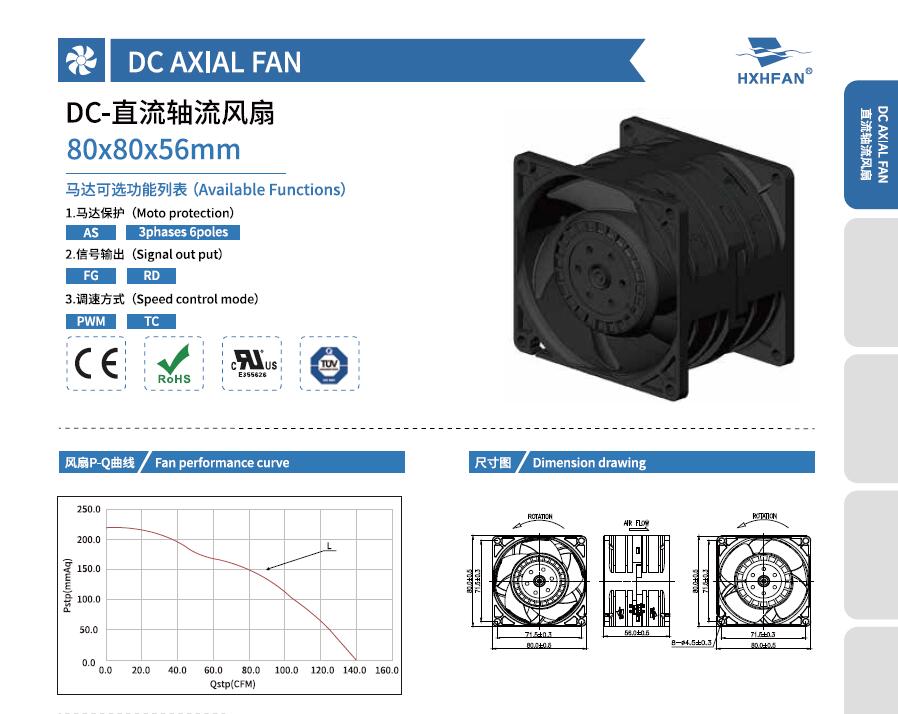

Product introduction:
| Size: | 80x80x56mm |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Double Ball bearing |
| Product life: | 30,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

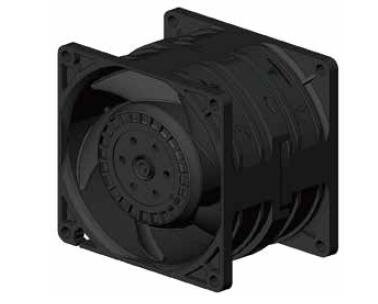

| 80×80×56MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VDC | VDC | A | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812LW | -A | Ball | 12 | 9.0 | 6.33 | 75.96 | IN 17000 OUT 15000 |
3.94 | 139.26 | 218.89 | 8.62 | 80.0 |
| HDB0824LW | -A | 24 | 18.0 | 3.25 | 78.00 | IN 17000 OUT 15000 |
3.94 | 139.26 | 218.89 | 8.62 | 80.0 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
