Product introduction:
| Size: |
60x60x15mm-3 |
|---|---|
| Material: | Environmental protection and fire protection PBT UL 94V-0 |
| Operating voltage: | 5V 12V 24V |
| Bearing structure: | Oil Bearing Hydraulic Bearing Double Ball Bearing |
| Product life: | 30,000 hours 40,000 hours 70,000 hours |
| Output function: | FG function RD function PWM function |
| Operating temperature: | -10℃ ~70℃ |
| Storage temperature: | -40℃ ~75℃ |

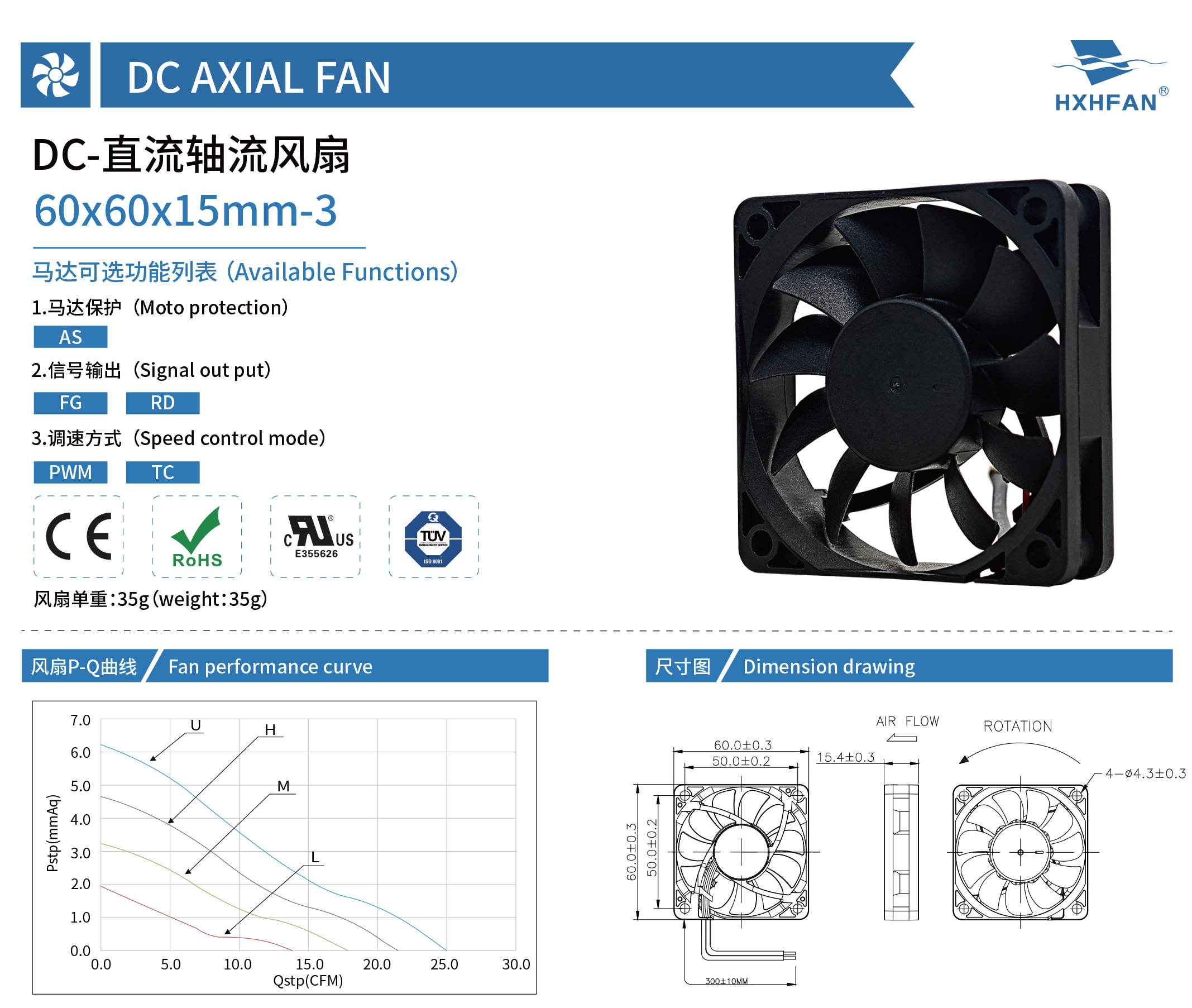

| 60×60×15MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0612UD-3 | Hydraulic | 12 | 7.0 | 0.20 | 2.40 | 5400 | 0.70 | 24.70 | 6.19 | 0.24 | 36.9 | |
| HDH0612HD-3 | 7.0 | 0.16 | 1.92 | 4700 | 0.61 | 21.49 | 4.69 | 0.18 | 33.9 | |||
| HDH0612MD-3 | 7.0 | 0.12 | 1.44 | 3900 | 0.50 | 17.84 | 3.23 | 0.13 | 29.8 | |||
| HDH0612LD-3 | 7.0 | 0.08 | 0.96 | 3000 | 0.39 | 13.72 | 1.91 | 0.08 | 24.1 | |||
| HDB0612UD-3 | Ball | 7.0 | 0.20 | 2.40 | 5400 | 0.70 | 24.70 | 6.19 | 0.24 | 36.9 | ||
| HDB0612HD-3 | 7.0 | 0.16 | 1.92 | 4700 | 0.61 | 21.49 | 4.69 | 0.18 | 33.9 | |||
| HDB0612MD-3 | 7.0 | 0.12 | 1.44 | 3900 | 0.50 | 17.84 | 3.23 | 0.13 | 29.8 | |||
| HDB0612LD-3 | 7.0 | 0.08 | 0.96 | 3000 | 0.39 | 13.72 | 1.91 | 0.08 | 24.1 | |||
| HDH0624UD-3 | Hydraulic | 24 | 12.0 | 0.20 | 4.80 | 5400 | 0.70 | 24.70 | 6.19 | 0.24 | 36.9 | |
| HDH0624HD-3 | 12.0 | 0.10 | 2.40 | 4700 | 0.61 | 21.49 | 4.69 | 0.18 | 33.9 | |||
| HDH0624MD-3 | 12.0 | 0.08 | 1.92 | 3900 | 0.50 | 17.84 | 3.23 | 0.13 | 29.8 | |||
| HDH0624LD-3 | 12.0 | 0.05 | 1.20 | 3000 | 0.39 | 13.72 | 1.91 | 0.08 | 24.1 | |||
| HDB0624UD-3 | Ball | 12.0 | 0.20 | 4.80 | 5400 | 0.70 | 24.70 | 6.19 | 0.24 | 36.9 | ||
| HDB0624HD-3 | 12.0 | 0.10 | 2.40 | 4700 | 0.61 | 21.49 | 4.69 | 0.18 | 33.9 | |||
| HDB0624MD-3 | 12.0 | 0.08 | 1.92 | 3900 | 0.50 | 17.84 | 3.23 | 0.13 | 29.8 | |||
| HDB0624LD-3 | 12.0 | 0.05 | 1.20 | 3000 | 0.39 | 13.72 | 1.91 | 0.08 | 24.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
